Description
Overmolded M8 cable with a female right-angle connector on one end and open conductors on the other. Use it to wire a sensor, valve or other M8 device back to a terminal block or controller. Choose the pins and coding, cable jacket, shielding and length; the configuration code updates as you pick.
Specifications
- Connector: M8 × 1.0, female right-angle, per IEC 61076-2-104
- Free end: open conductors

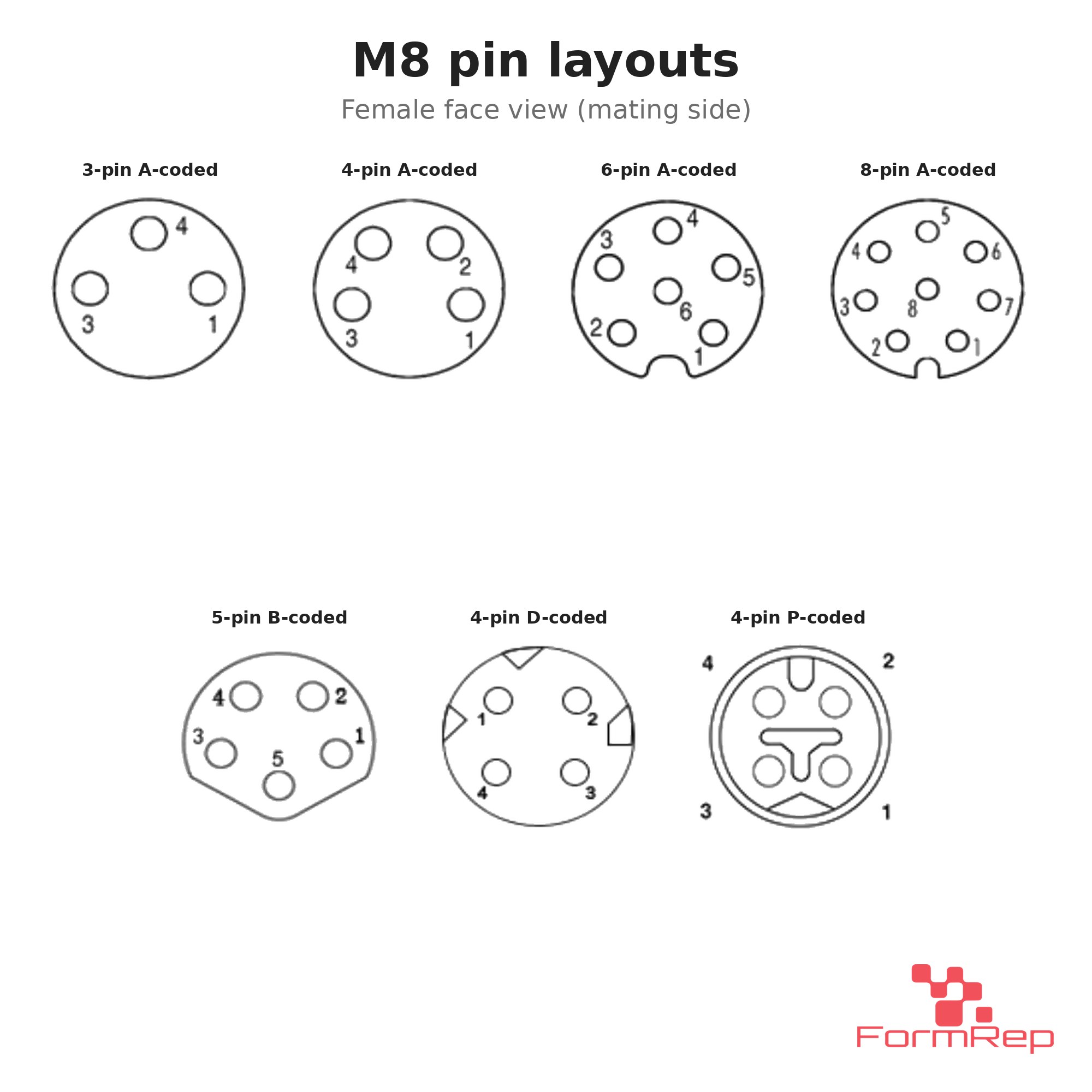

- Pins and coding: A-coded 3, 4, 6 or 8 pin · B-coded 5 pin · D-coded 4 pin · P-coded 4 pin (see the pin layout image)
- Ratings: 3-pin 60 V, 3 A · 4- and 5-pin 30 V, 3 A · 6- and 8-pin 30 V, 1 A (current rating at 40 °C)
- Wire gauge: 26 to 22 AWG for 3 to 5 pin, 26 AWG for 6 and 8 pin
- Cable: PUR or PVC jacket, black, unshielded or shielded
- Lengths: 1 m, 2 m, 5 m or 10 m
- Operating temperature: −25 to +85 °C
- Materials: gold-plated contacts (male brass, female phosphor bronze) · brass coupling, nickel plated · TPU body and overmold
- Insulation resistance: ≥ 100 MΩ · Contact resistance: ≤ 5 mΩ · Mating cycles: more than 100
- Compliance: RoHS, REACH
Configuration code
M8[coding]-[pins]P-F-RA-[PUR or PVC]-[U unshielded or S shielded]-[length]M. Example: M8A-4P-F-RA-PUR-U-2M is a 4-pin A-coded, PUR, unshielded, 2 m cable.
Cross-reference
These Turck, Murrelektronik, ifm and Phoenix Contact parts are the same type of cable (female right-angle, open end, same coding, pin count, jacket, shielding and length). Treat them as equivalent; confirm at quote. Send us the part number you use today and we will confirm the match.
| FormRep code | Configuration | Turck | Murrelektronik | ifm | Phoenix Contact |
|---|---|---|---|---|---|
| M8A-3P-F-RA-PUR-U-1M | 3-pin M8 A-coded PUR, 1 m | — | 7000-08081-6300100 | — | — |
| M8A-3P-F-RA-PUR-U-2M | 3-pin M8 A-coded PUR, 2 m | — | 7000-08081-6300200 | EVC144 | — |
| M8A-3P-F-RA-PUR-U-5M | 3-pin M8 A-coded PUR, 5 m | — | — | EVC145 | 1669631 (SAC-3P- 5,0-PUR/M 8FR) |
| M8A-3P-F-RA-PUR-U-10M | 3-pin M8 A-coded PUR, 10 m | — | 7000-08081-6301000 | EVC146 | — |
| M8A-3P-F-RA-PVC-U-1M | 3-pin M8 A-coded PVC, 1 m | — | 7000-08081-6100100 | — | — |
| M8A-3P-F-RA-PVC-U-2M | 3-pin M8 A-coded PVC, 2 m | — | 7000-08081-6100200 | — | — |
| M8A-3P-F-RA-PVC-U-5M | 3-pin M8 A-coded PVC, 5 m | PKW 3M-5 | 7000-08081-6100500 | — | — |
| M8A-3P-F-RA-PVC-U-10M | 3-pin M8 A-coded PVC, 10 m | PKW 3M-10 | 7000-08081-6101000 | — | — |
| M8A-4P-F-RA-PUR-U-1M | 4-pin M8 A-coded PUR, 1 m | — | 7000-08101-6310100 | — | — |
| M8A-4P-F-RA-PUR-U-2M | 4-pin M8 A-coded PUR, 2 m | — | 7000-08101-6310200 | EVC153 | — |
| M8A-4P-F-RA-PUR-U-5M | 4-pin M8 A-coded PUR, 5 m | — | 7000-08101-6310500 | EVC154 | — |
| M8A-4P-F-RA-PUR-U-10M | 4-pin M8 A-coded PUR, 10 m | — | 7000-08101-6311000 | — | — |
| M8A-4P-F-RA-PVC-U-1M | 4-pin M8 A-coded PVC, 1 m | — | 7000-08101-6110100 | — | — |
| M8A-4P-F-RA-PVC-U-2M | 4-pin M8 A-coded PVC, 2 m | PKW 4M-2 | 7000-08101-6110200 | — | — |
| M8A-4P-F-RA-PVC-U-5M | 4-pin M8 A-coded PVC, 5 m | PKW 4M-5 | 7000-08101-6110500 | — | — |
| M8A-4P-F-RA-PVC-U-10M | 4-pin M8 A-coded PVC, 10 m | PKW 4M-10 | 7000-08101-6111000 | — | — |
Brand names are trademarks of their owners; used for identification only. A dash means we have not confirmed an equivalent for that configuration. Other configurations are available; ask for a quote.
See the full cross-reference list →
Ordering

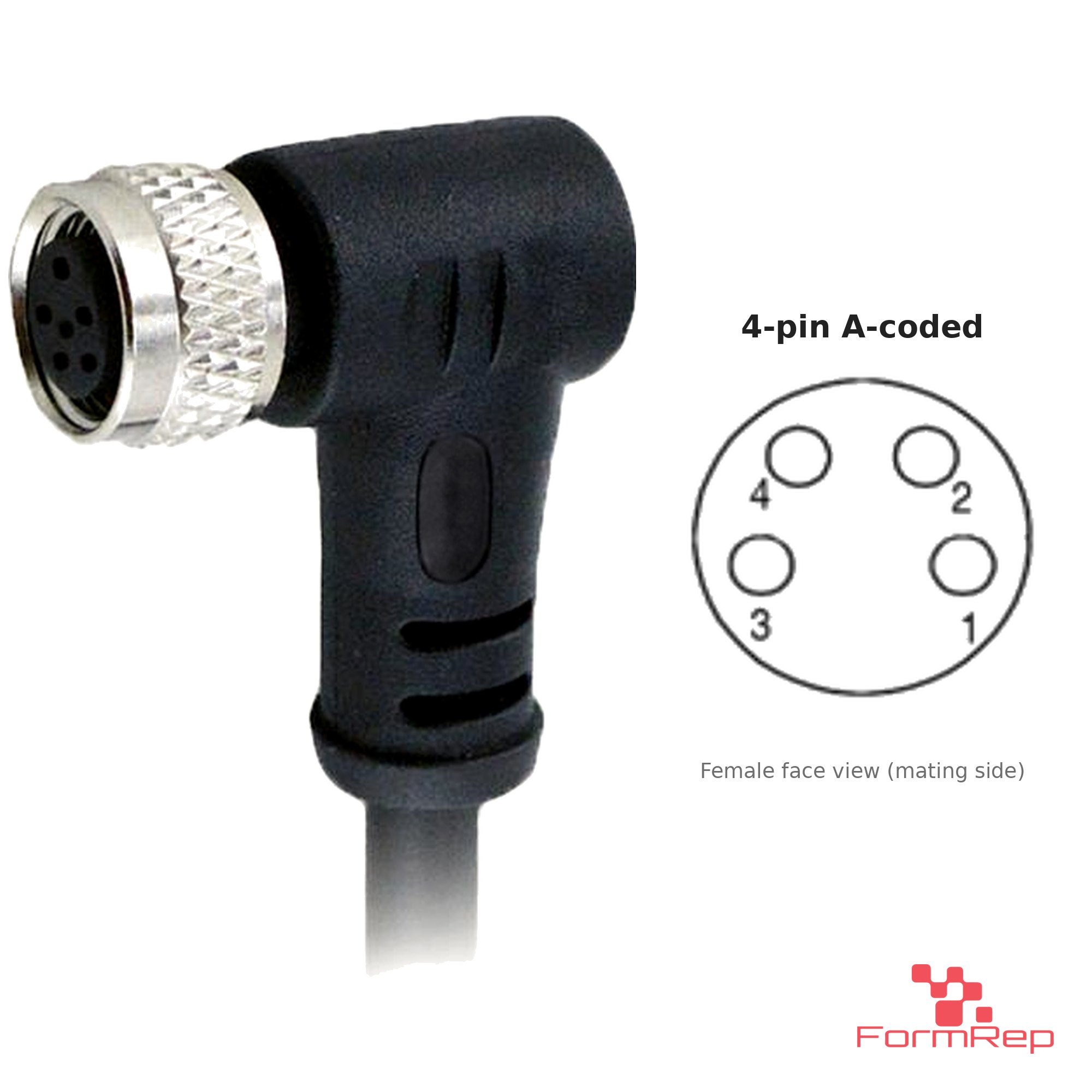

Built to order and priced by quote; standard configurations ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; pins, coding, jacket and length follow your selection.
Need a different length, a mixed M8 to M12 cable, a splitter or a different pinout? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
