Description

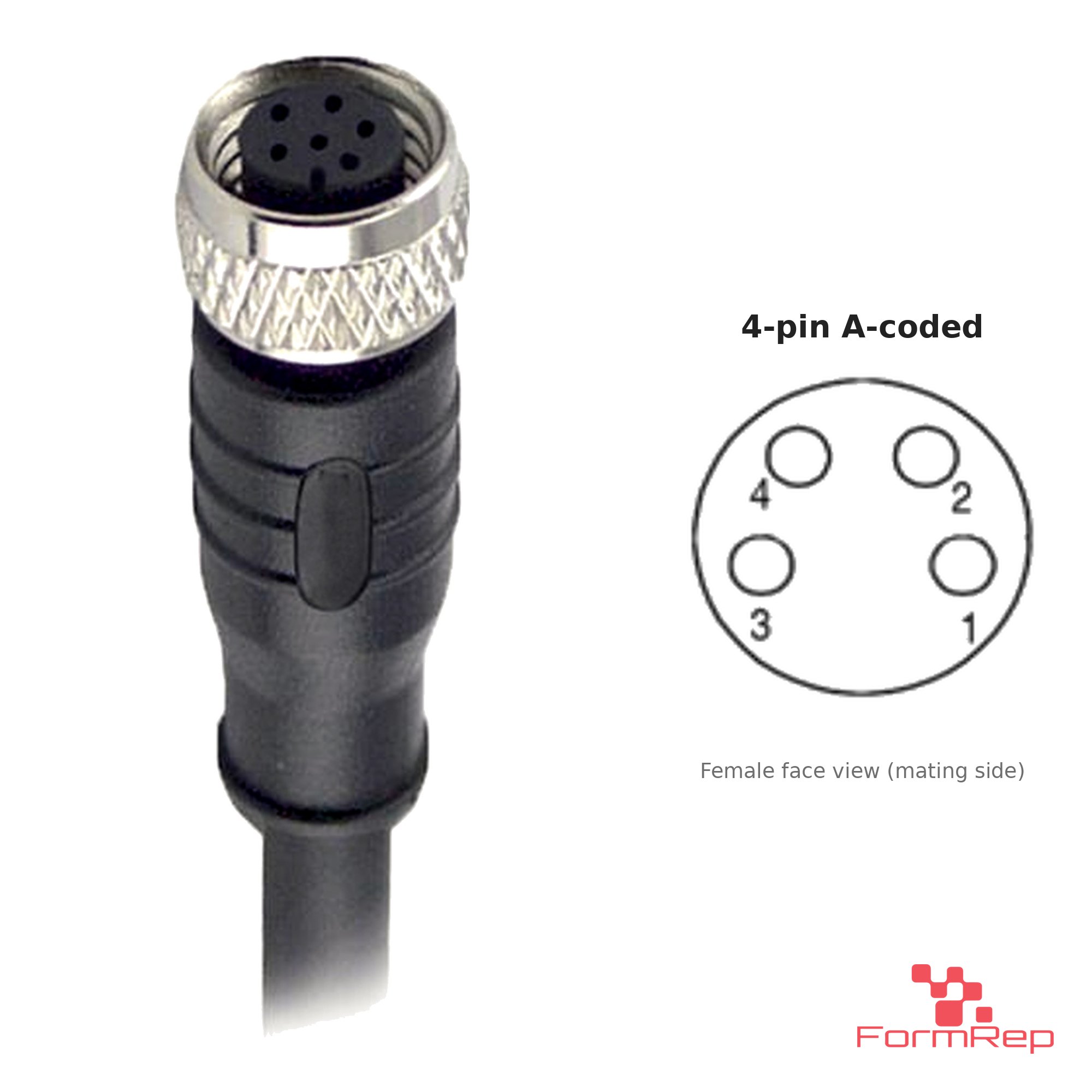

Overmolded M8 cable with a female straight connector on one end and open conductors on the other. Use it to wire a sensor, valve or other M8 device back to a terminal block or controller. Choose the pins and coding, cable jacket, shielding and length; the configuration code updates as you pick.
Specifications
- Connector: M8 × 1.0, female straight, per IEC 61076-2-104
- Free end: open conductors

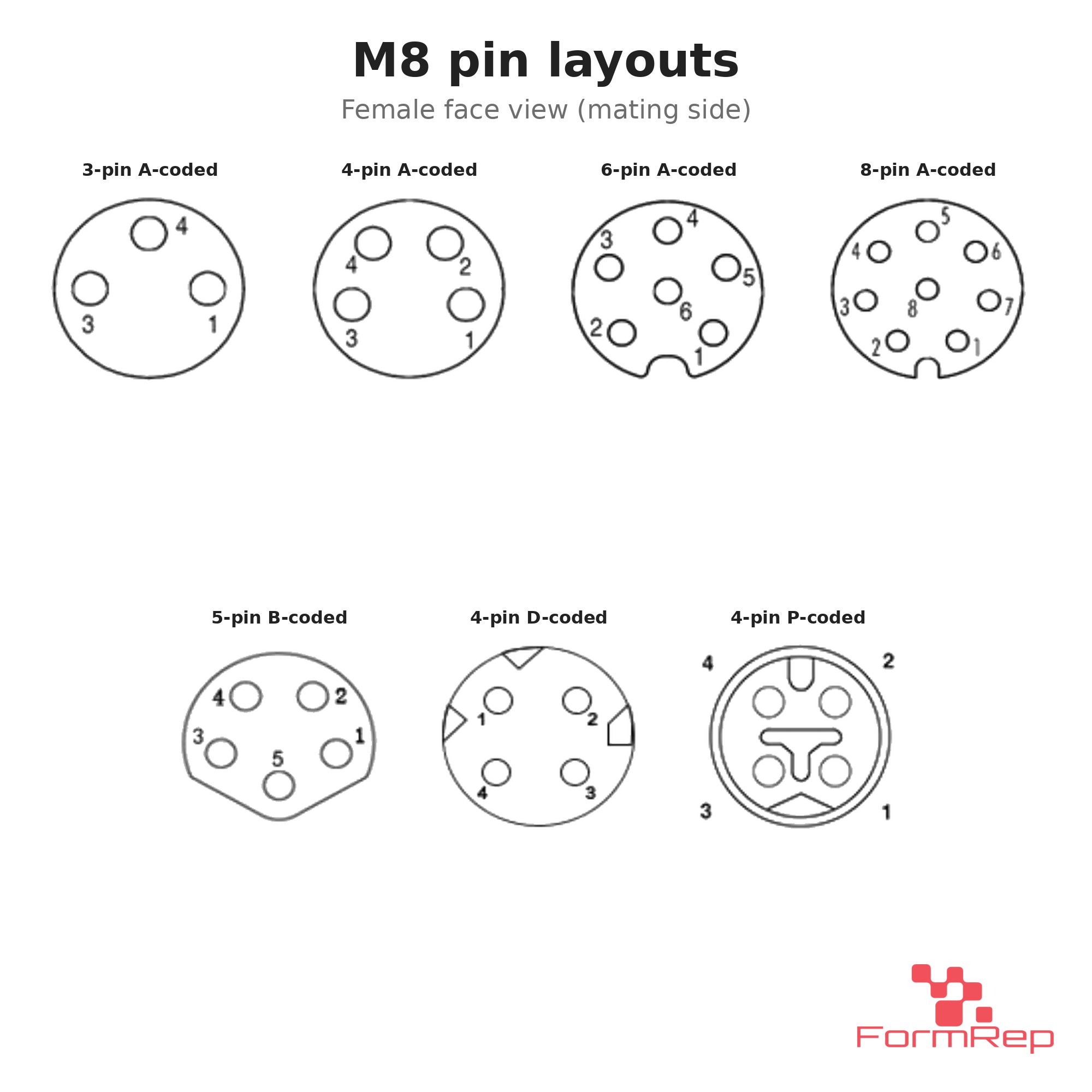

- Pins and coding: A-coded 3, 4, 6 or 8 pin · B-coded 5 pin · D-coded 4 pin · P-coded 4 pin (see the pin layout image)
- Ratings: 3-pin 60 V, 3 A · 4- and 5-pin 30 V, 3 A · 6- and 8-pin 30 V, 1 A (current rating at 40 °C)
- Wire gauge: 26 to 22 AWG for 3 to 5 pin, 26 AWG for 6 and 8 pin
- Cable: PUR or PVC jacket, black, unshielded or shielded
- Lengths: 1 m, 2 m, 5 m or 10 m
- Operating temperature: −25 to +85 °C
- Materials: gold-plated contacts (male brass, female phosphor bronze) · brass coupling, nickel plated · TPU body and overmold
- Insulation resistance: ≥ 100 MΩ · Contact resistance: ≤ 5 mΩ · Mating cycles: more than 100
- Compliance: RoHS, REACH
Configuration code
M8[coding]-[pins]P-F-ST-[PUR or PVC]-[U unshielded or S shielded]-[length]M. Example: M8A-4P-F-ST-PUR-U-2M is a 4-pin A-coded, PUR, unshielded, 2 m cable.
Cross-reference
These Turck, Murrelektronik, ifm and Phoenix Contact parts are the same type of cable (female straight, open end, same coding, pin count, jacket, shielding and length). Treat them as equivalent; confirm at quote. Send us the part number you use today and we will confirm the match.
| FormRep code | Configuration | Turck | Murrelektronik | ifm | Phoenix Contact |
|---|---|---|---|---|---|
| M8A-3P-F-ST-PUR-U-1M | 3-pin M8 A-coded PUR, 1 m | — | 7000-08041-6300100 | — | 1172952 (SAC-3P- 1,0-PUR/M 8FS) |
| M8A-3P-F-ST-PUR-U-2M | 3-pin M8 A-coded PUR, 2 m | — | 7000-08041-6300200 | EVC141 | 1504822 (SAC-3P- 2,0-PUR/M 8FS) |
| M8A-3P-F-ST-PUR-U-5M | 3-pin M8 A-coded PUR, 5 m | — | 7000-08041-6300500 | EVC142 | 1669628 (SAC-3P- 5,0-PUR/M 8FS) |
| M8A-3P-F-ST-PUR-U-10M | 3-pin M8 A-coded PUR, 10 m | — | 7000-08041-6301000 | EVC143 | 1694101 (SAC-3P-10,0-PUR/M 8FS) |
| M8A-3P-F-ST-PVC-U-1M | 3-pin M8 A-coded PVC, 1 m | — | 7000-08041-6100100 | — | — |
| M8A-3P-F-ST-PVC-U-2M | 3-pin M8 A-coded PVC, 2 m | PKG 3M-2 | 7000-08041-6100200 | — | — |
| M8A-3P-F-ST-PVC-U-5M | 3-pin M8 A-coded PVC, 5 m | PKG 3M-5 | 7000-08041-6100500 | — | — |
| M8A-3P-F-ST-PVC-U-10M | 3-pin M8 A-coded PVC, 10 m | PKG 3M-10 | 7000-08041-6101000 | — | — |
| M8A-4P-F-ST-PUR-U-1M | 4-pin M8 A-coded PUR, 1 m | — | 7000-08061-6310100 | — | 1178088 (SAC-4P- 1,0-PUR/M 8FS) |
| M8A-4P-F-ST-PUR-U-2M | 4-pin M8 A-coded PUR, 2 m | — | 7000-08061-6310200 | EVC150 | 1178133 (SAC-4P- 2,0-PUR/M 8FS) |
| M8A-4P-F-ST-PUR-U-5M | 4-pin M8 A-coded PUR, 5 m | — | 7000-08061-6310500 | EVC151 | 1681868 (SAC-4P- 5,0-PUR/M 8FS) |
| M8A-4P-F-ST-PUR-U-10M | 4-pin M8 A-coded PUR, 10 m | — | 7000-08061-6311000 | EVC152 | 1683484 (SAC-4P-10,0-PUR/M 8FS) |
| M8A-4P-F-ST-PVC-U-1M | 4-pin M8 A-coded PVC, 1 m | — | 7000-08061-6110100 | — | — |
| M8A-4P-F-ST-PVC-U-2M | 4-pin M8 A-coded PVC, 2 m | PKG 4M-2 | — | — | — |
| M8A-4P-F-ST-PVC-U-5M | 4-pin M8 A-coded PVC, 5 m | — | 7000-08061-6110500 | — | — |
| M8A-4P-F-ST-PVC-U-10M | 4-pin M8 A-coded PVC, 10 m | PKG 4M-10 | 7000-08061-6111000 | — | — |
Brand names are trademarks of their owners; used for identification only. A dash means we have not confirmed an equivalent for that configuration. Other configurations are available; ask for a quote.
See the full cross-reference list →
Ordering
Built to order and priced by quote; standard configurations ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; pins, coding, jacket and length follow your selection.
Need a different length, a mixed M8 to M12 cable, a splitter or a different pinout? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
