Description

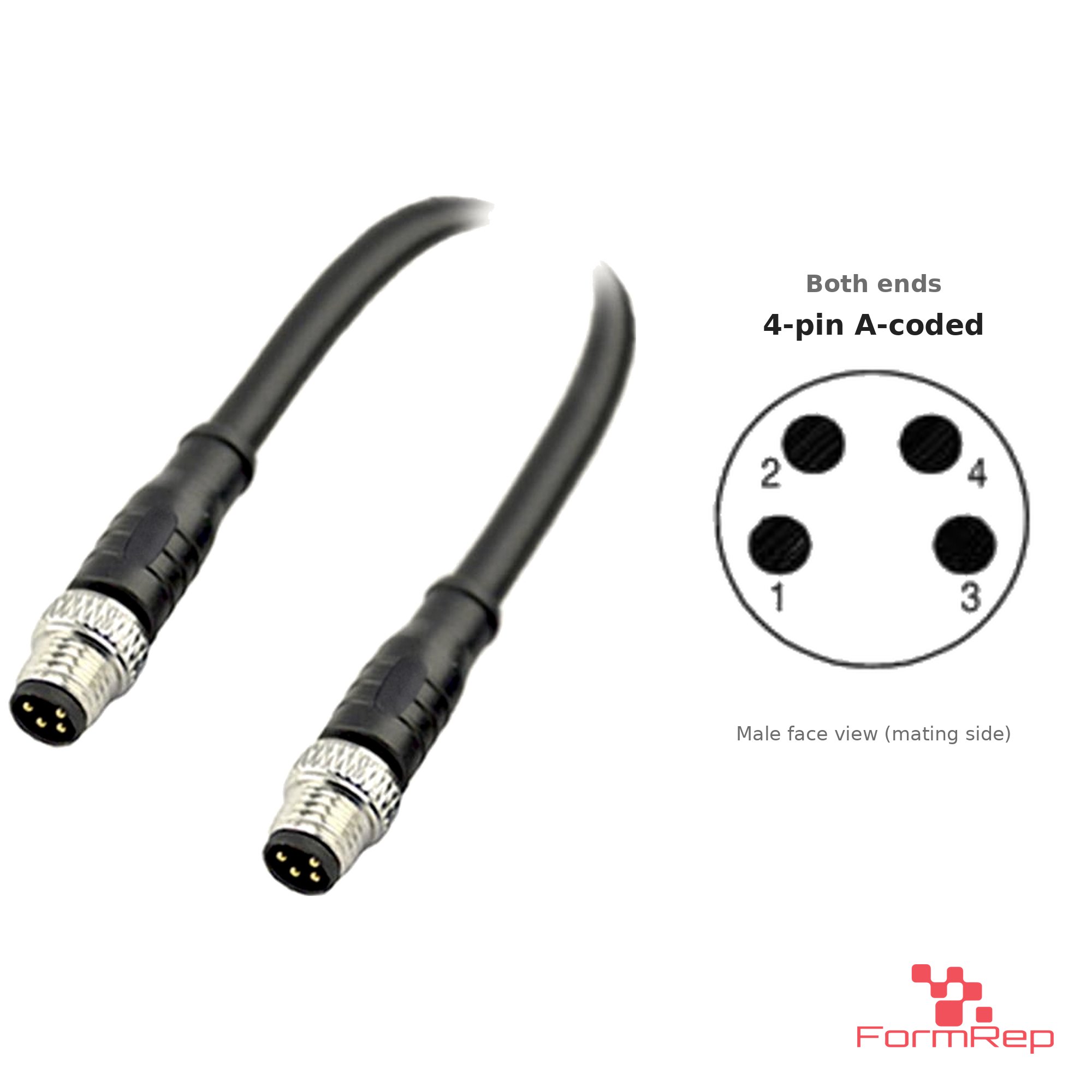

Overmolded M8 cable with a male straight connector on one end and a male straight connector on the other, wired pin to pin. Use it to connect two M8 devices or link a device to a distribution box. Choose the pins and coding, cable jacket, shielding and length; the configuration code updates as you pick.
Specifications
- Connectors: M8 × 1.0, male straight to male straight, per IEC 61076-2-104
- Wiring: straight through, pin to pin

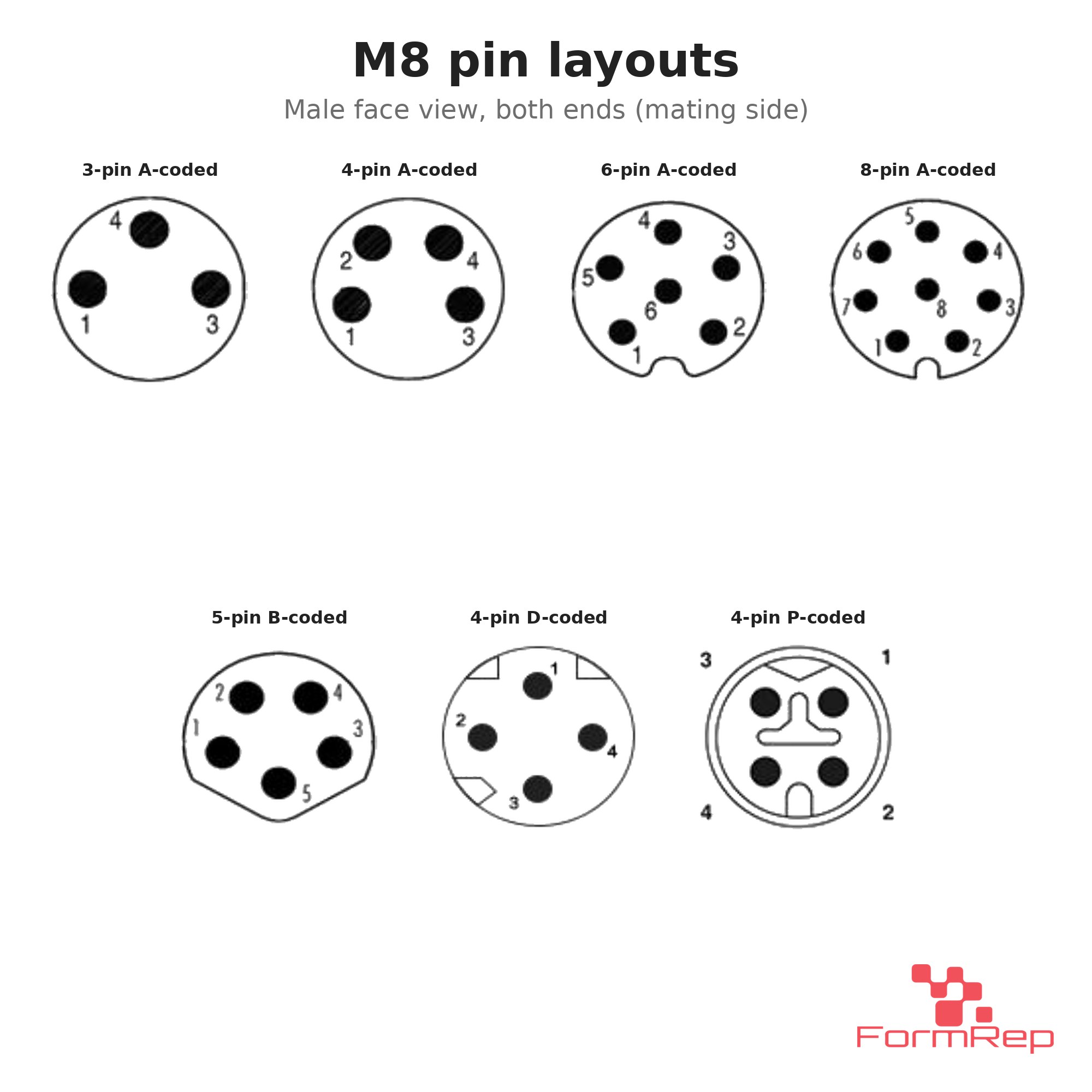

- Pins and coding: A-coded 3, 4, 6 or 8 pin · B-coded 5 pin · D-coded 4 pin · P-coded 4 pin (see the pin layout image)
- Ratings: 3-pin 60 V, 3 A · 4- and 5-pin 30 V, 3 A · 6- and 8-pin 30 V, 1 A (current rating at 40 °C)
- Wire gauge: 26 to 22 AWG for 3 to 5 pin, 26 AWG for 6 and 8 pin
- Cable: PUR or PVC jacket, black, unshielded or shielded
- Lengths: 1 m, 2 m, 5 m or 10 m overall
- Operating temperature: −25 to +85 °C
- Materials: gold-plated contacts (male brass, female phosphor bronze) · brass coupling, nickel plated · TPU body and overmold
- Insulation resistance: ≥ 100 MΩ · Contact resistance: ≤ 5 mΩ · Mating cycles: more than 100
- Compliance: RoHS, REACH
Configuration code
M8[coding]-[pins]P-MM-ST-[PUR or PVC]-[U unshielded or S shielded]-[length]M. Example: M8A-4P-MM-ST-PUR-U-2M is a 4-pin A-coded, PUR, unshielded, 2 m cable.
Ordering
Built to order and priced by quote; standard configurations ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; pins, coding, jacket and length follow your selection.
Need a different length, a mixed M8 to M12 cable, a splitter or a different pinout? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
