Description

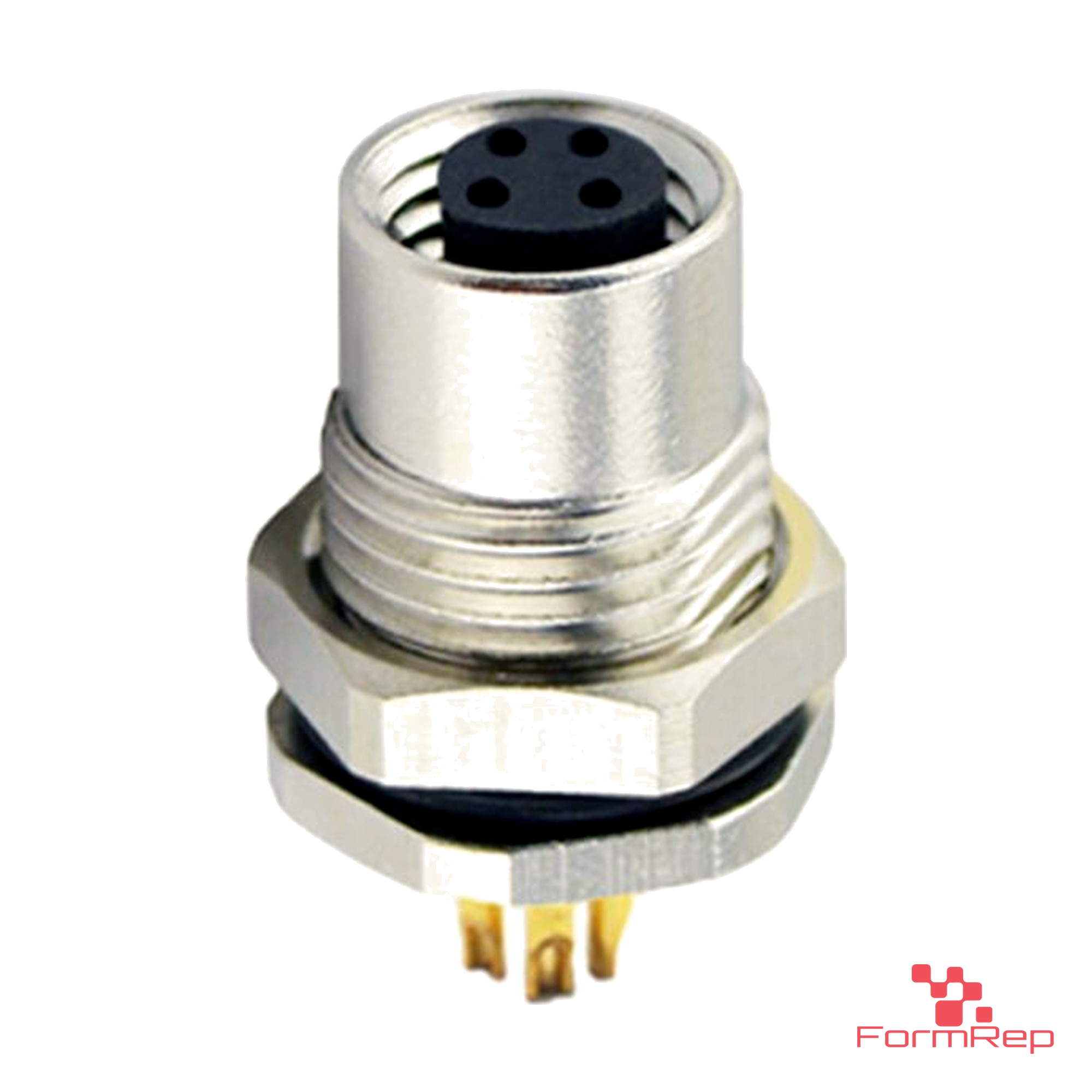

M8 × 1.0 panel-mount receptacle with solder cups, for bringing sensor and I/O connections through an enclosure wall or onto a circuit board. Choose gender, mounting style and pins; the configuration code updates as you pick.
Specifications
- Connector: M8 × 1.0, male or female, per IEC 61076-2-104

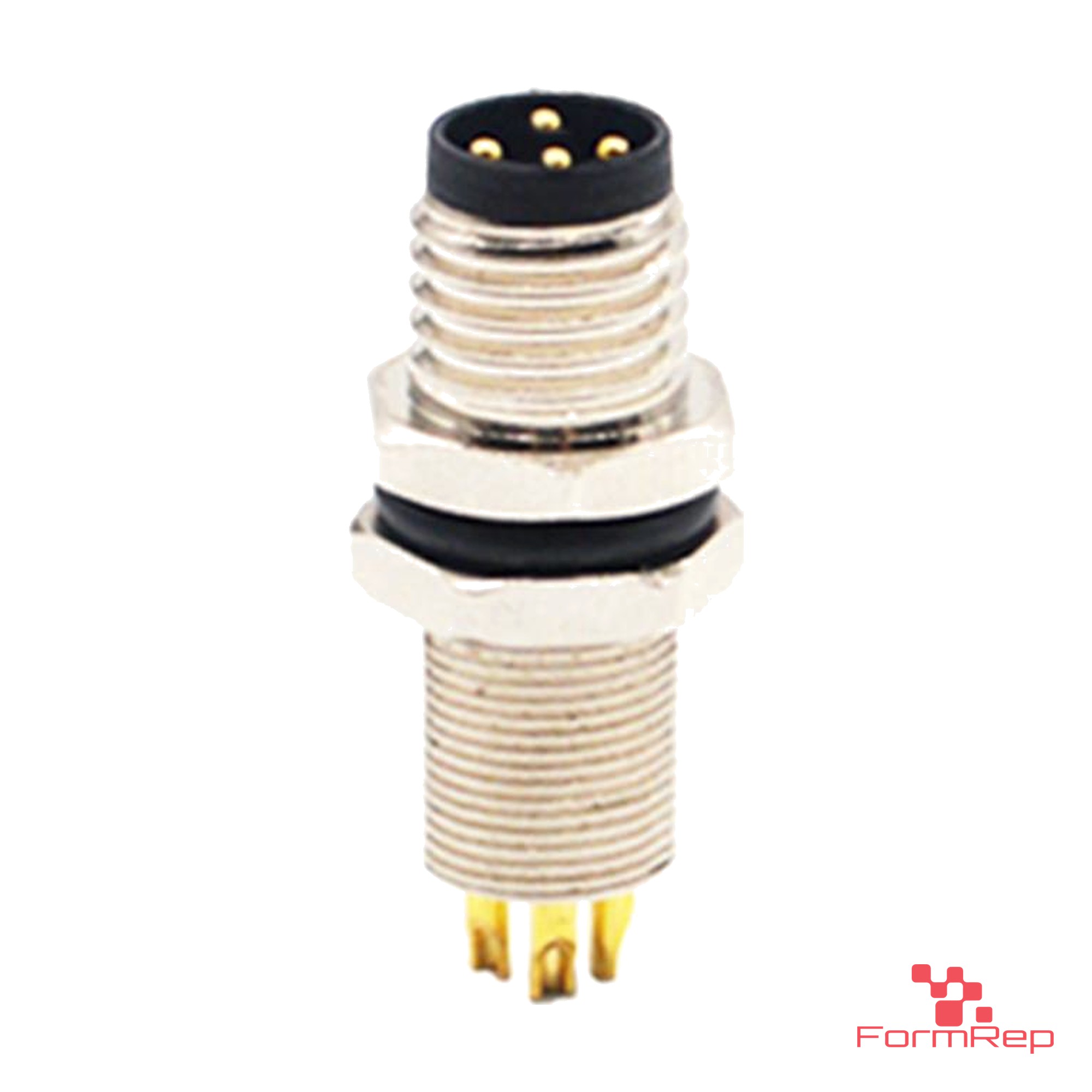

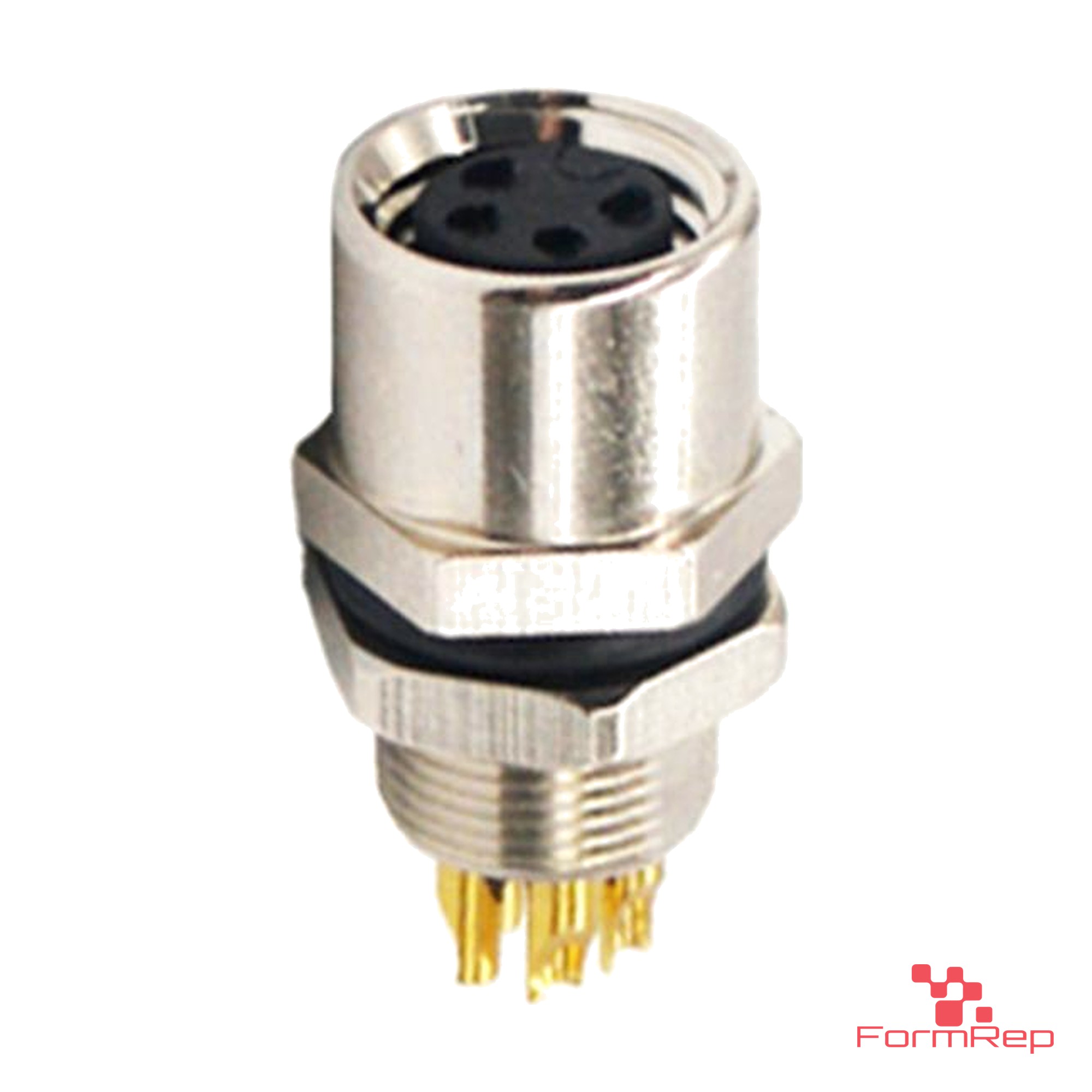

- Mounting: straight front or rear mount

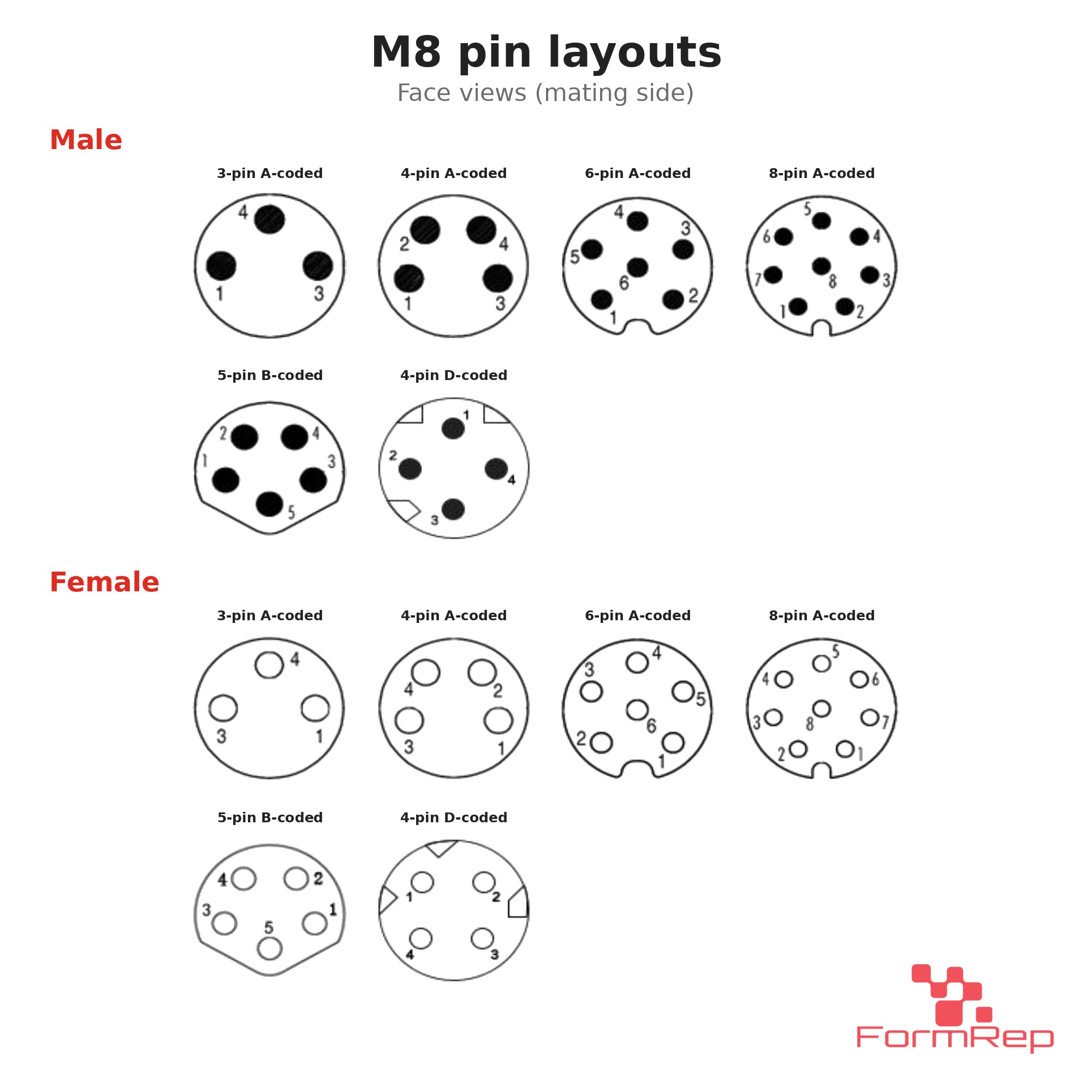

- Pins and coding: A-coded 3, 4, 6 or 8 pin, B-coded 5 pin or D-coded 4 pin (see the pin layout image)
- Ratings: 3-pin 60 V, 3 A · 4- and 5-pin 30 V, 3 A · 6- and 8-pin 30 V, 1 A (current rating at 40 °C)
- Termination: solder cups
- Panel thread: male front M8 × 1.0, female front M11 × 1.0, rear mount M8 × 0.5
- Materials: brass contacts, gold plated · brass nut and shell, nickel plated · TPU insert · FKM seal
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code

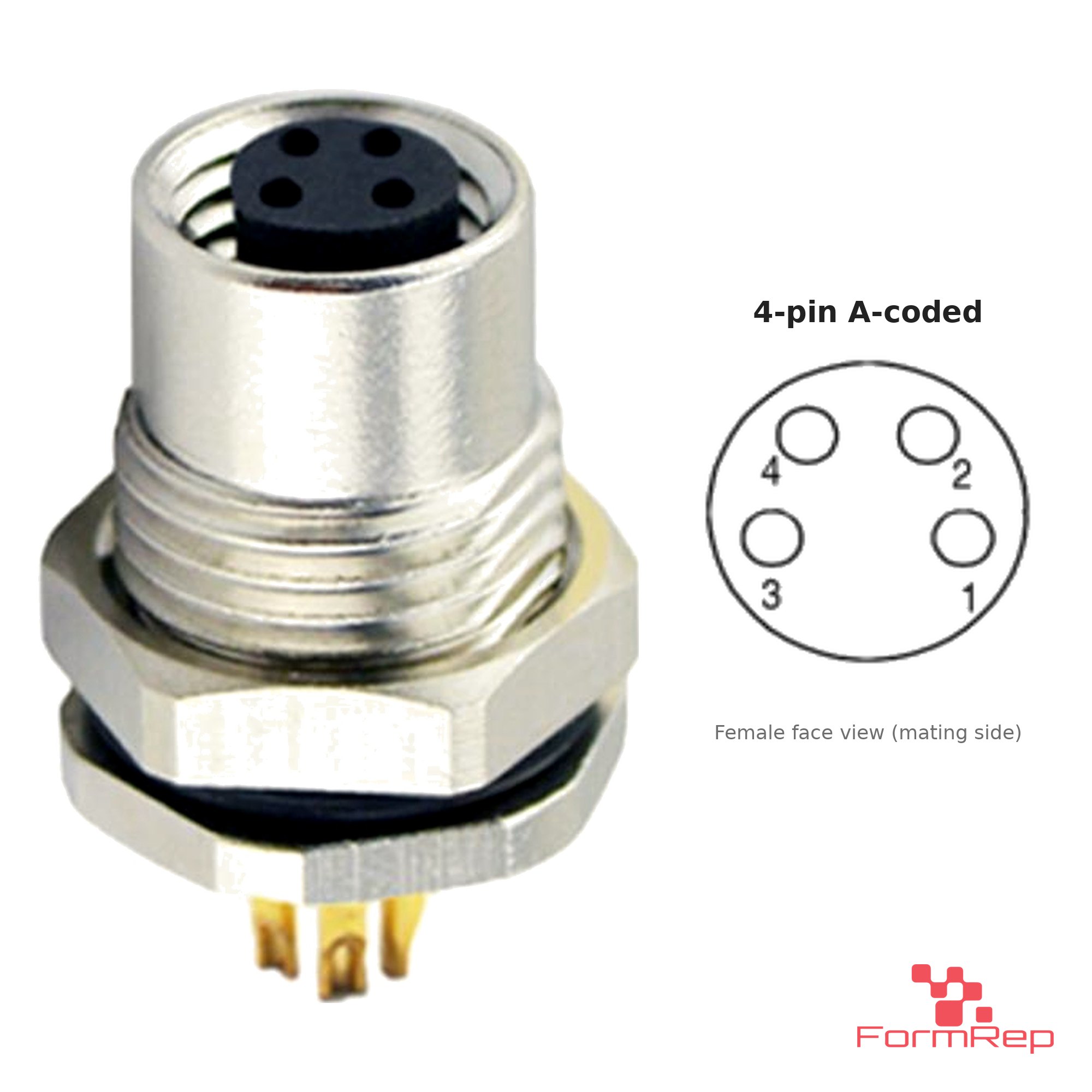

M8[coding]-[pins]P-[M or F]-ST-[FR front or RR rear]-SC. Example: M8A-4P-F-ST-FR-SC is a 4-pin A-coded female straight front-mount receptacle.
