Description
M12 × 1.0 X-coded panel-mount receptacle with PCB pins, for bringing industrial Ethernet and signal connections through an enclosure wall onto a circuit board. Choose your options; the configuration code updates as you pick.
Specifications
- Connector: M12 × 1.0, X-coded, male or female, per IEC 61076-2-101
- Mounting: straight front or rear mount, or right-angle front mount

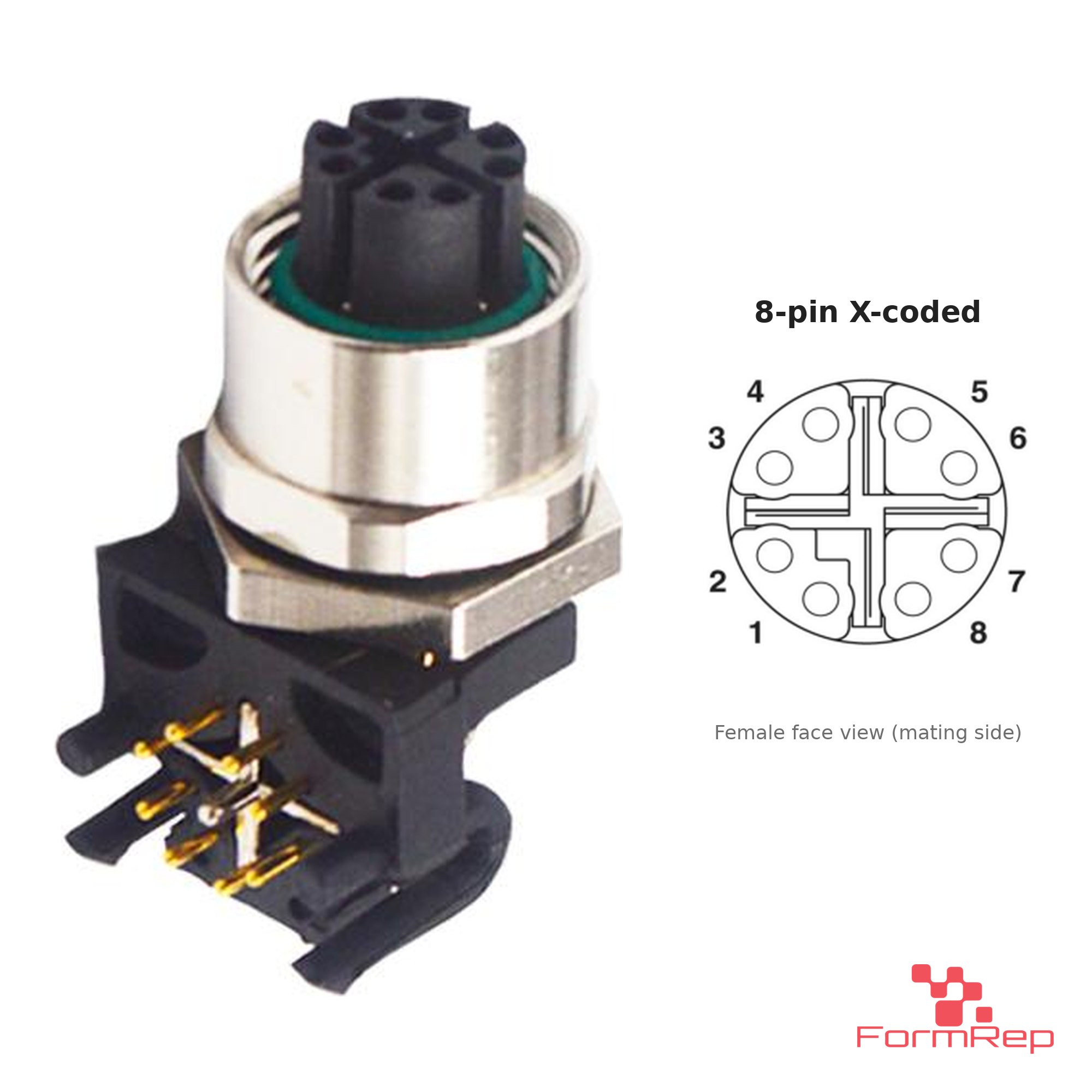

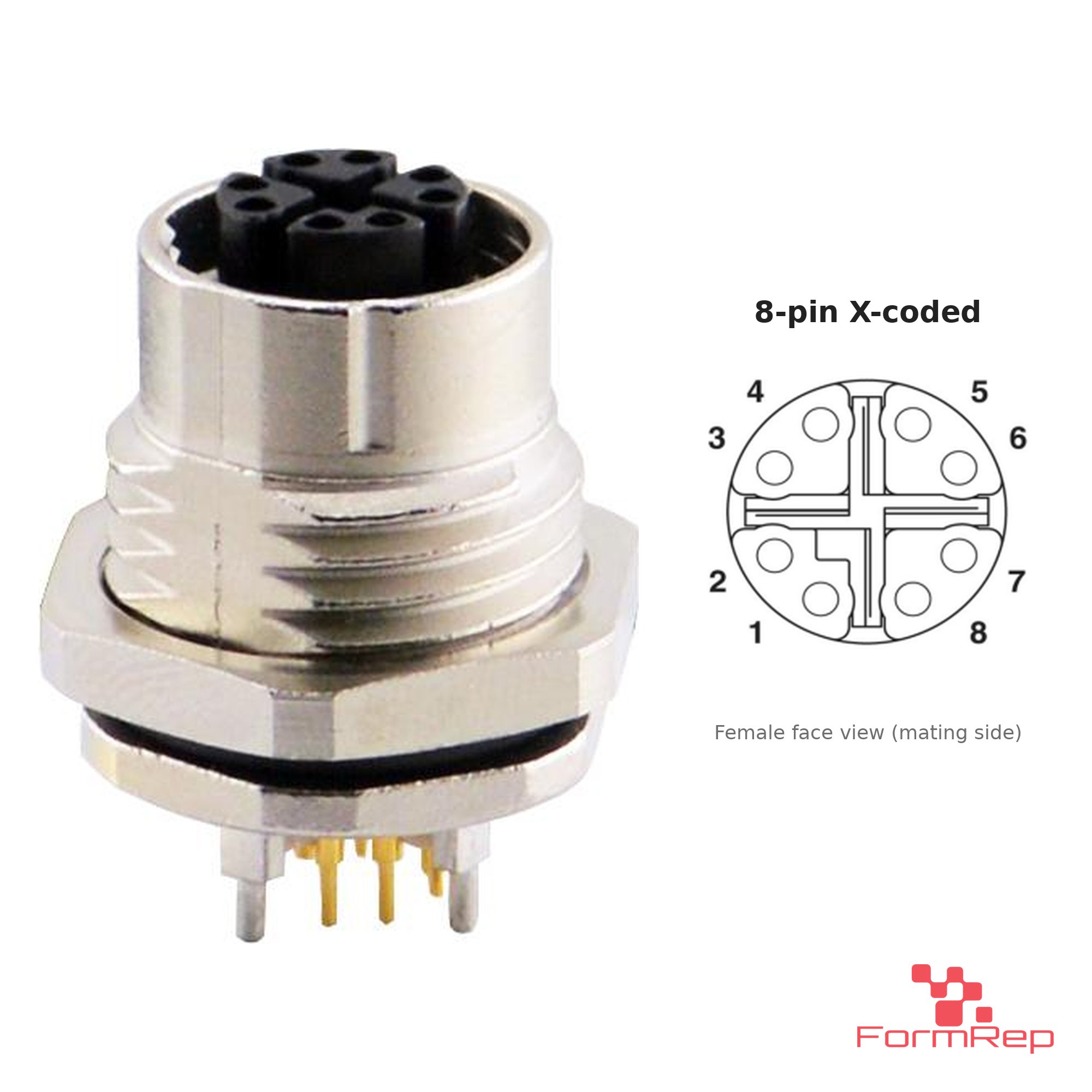

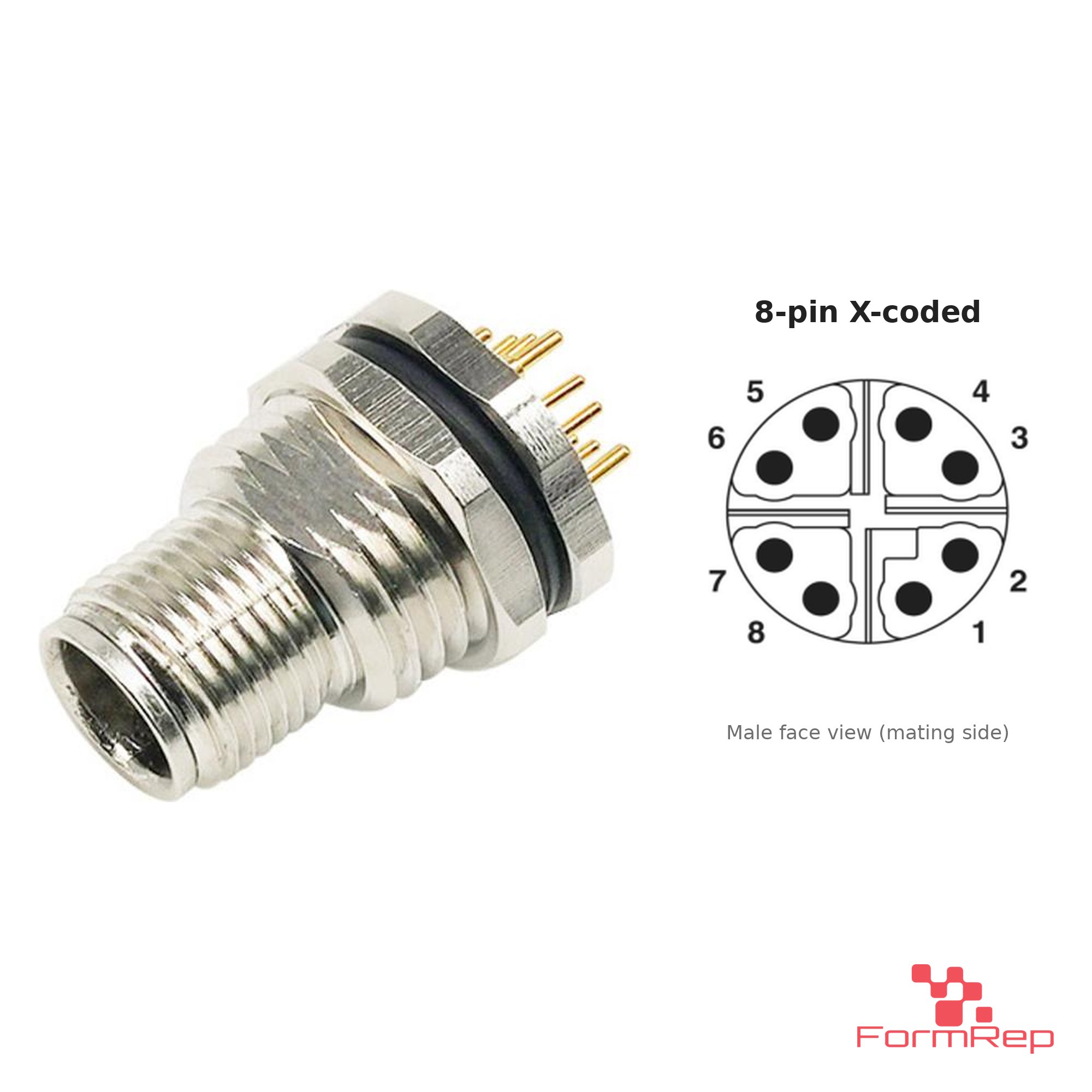

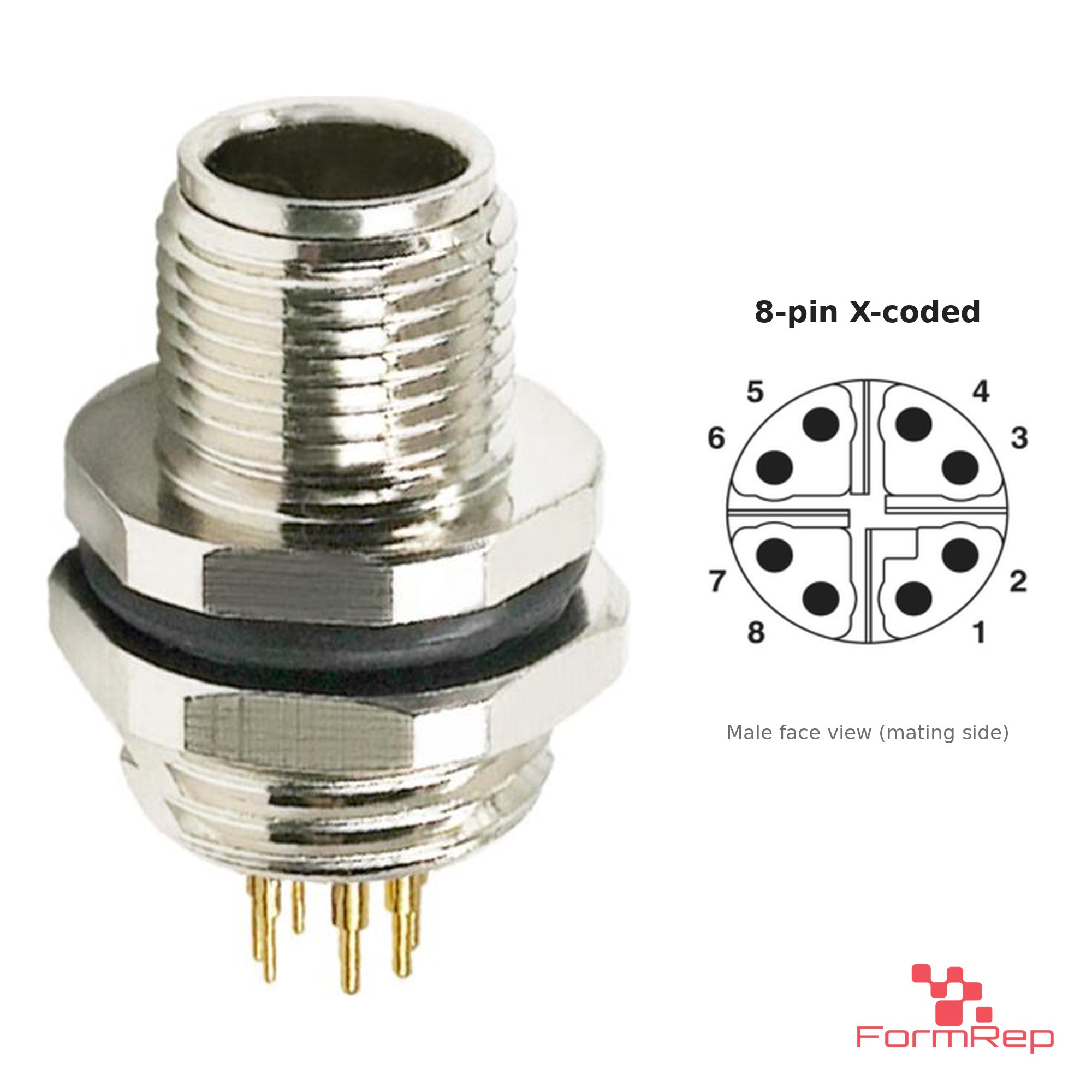

- Pins: 8 (X-coded; see the pin layout image)
- Ratings: 8-pin X-coded 60 V, 0.5 A · Male front, M16 30 V, 2 A (current rating at 40 °C)
- Termination: PCB pins (dip solder)
- Panel thread: rear-mount male and front-mount female: PG9 or M16. Compact front-mount male: M16 × 1.5. Right-angle female: M12 × 1.0 front mount
- Materials: brass contacts, gold plated · brass nut and shell, nickel plated · TPU insert · FKM seal · shielded
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
M12X-8P-[M/F]-[ST/RA]-[FR/RR]-PCB-[PG9/M16/M12]. Example: M12X-8P-M-ST-FR-PCB-M16 = 8-pin X-coded male straight, front mount receptacle, PCB pins, M16 thread.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; pins and coding follow your selection.
Need a molded M12 X-coded cable instead, or a different thread or lead length? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
