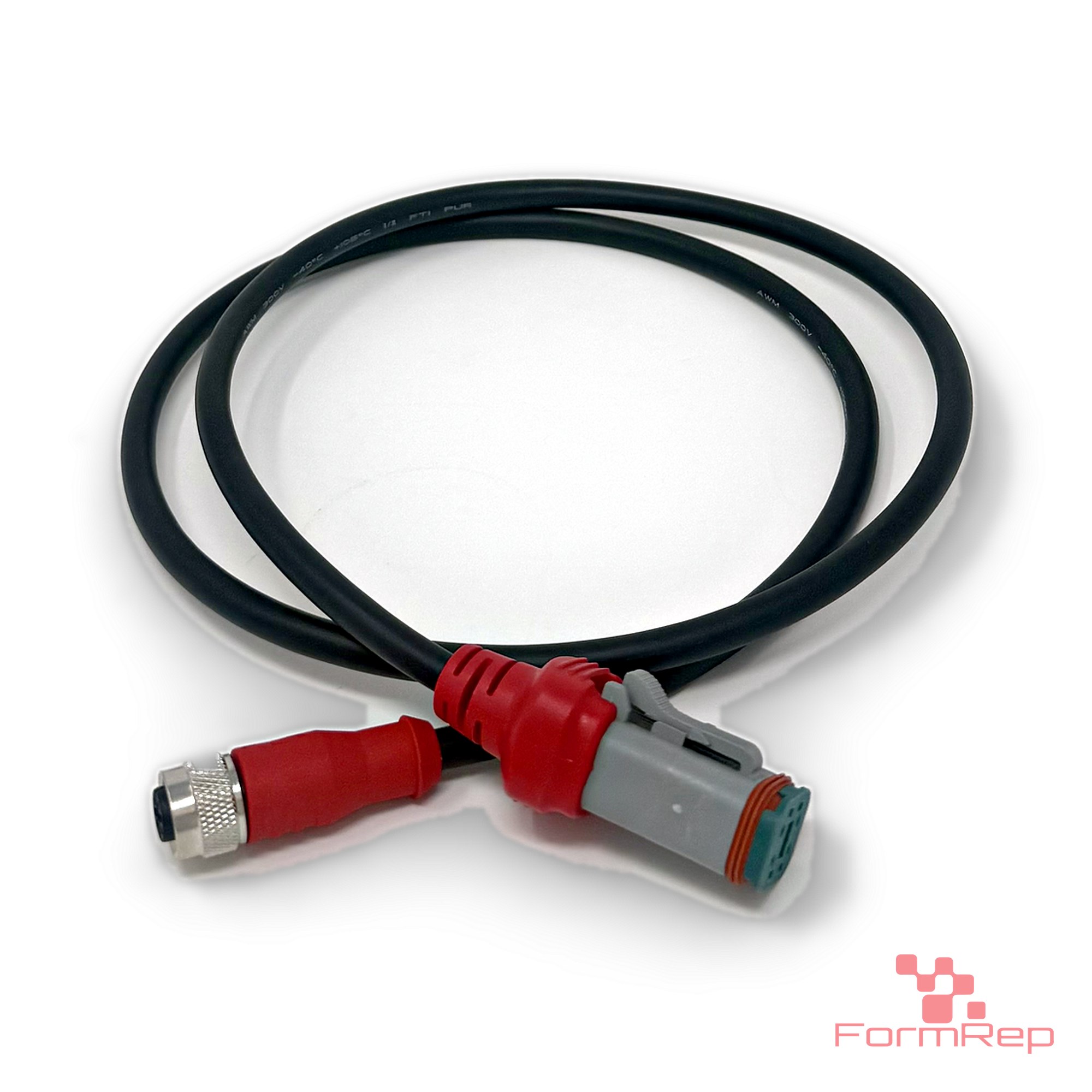

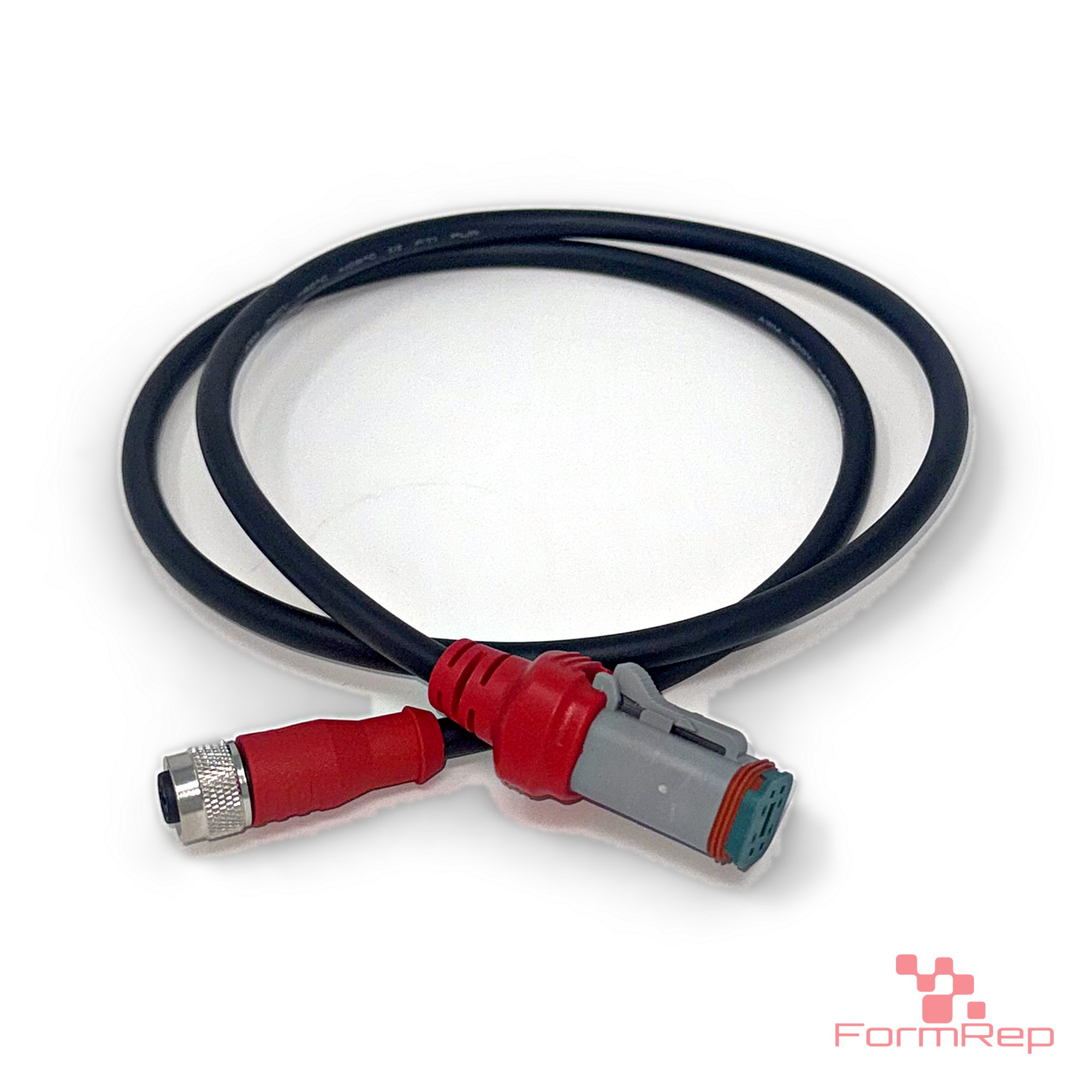

DT-Compatible 4-Pin Female to M12 Female Cable, 18 AWG

$29.60

DT-compatible 4-pin female (Amphenol AT06-4S) to M12 A-coded 4-pin female cordset. 18 AWG PUR, 1.0 m. Wired straight through; a direct interchange for Murrelektronik 7072-77301-5690100.

We acceptVISAAMEXDISCVERPayGPay
Prefer to buy on?DigiKey part 6762-C-D04FS-M04FS-P0418-1M0-S-ND →

Need a different length? Other lengths, including lengths in feet, are built to order. Request a quote.

Buying in volume? Contact us for volume pricing options.

SKU: 3442-C-D04FS-M04FS-P0418-S Categories: , Tags: , , , , , ,

See it in action

DT-Compatible 4-Pin Female to M12 Female Cable, 18 AWG video

Description

A four-conductor adapter cable between DT-style 4-pin connectors and M12 A-coded devices. Built with a 4-pin Amphenol AT-series socket, a straight M12 female coupling nut, and 1.0 m of 18 AWG PUR cable — a direct interchange for Murrelektronik 7072-77301-5690100.

Specifications

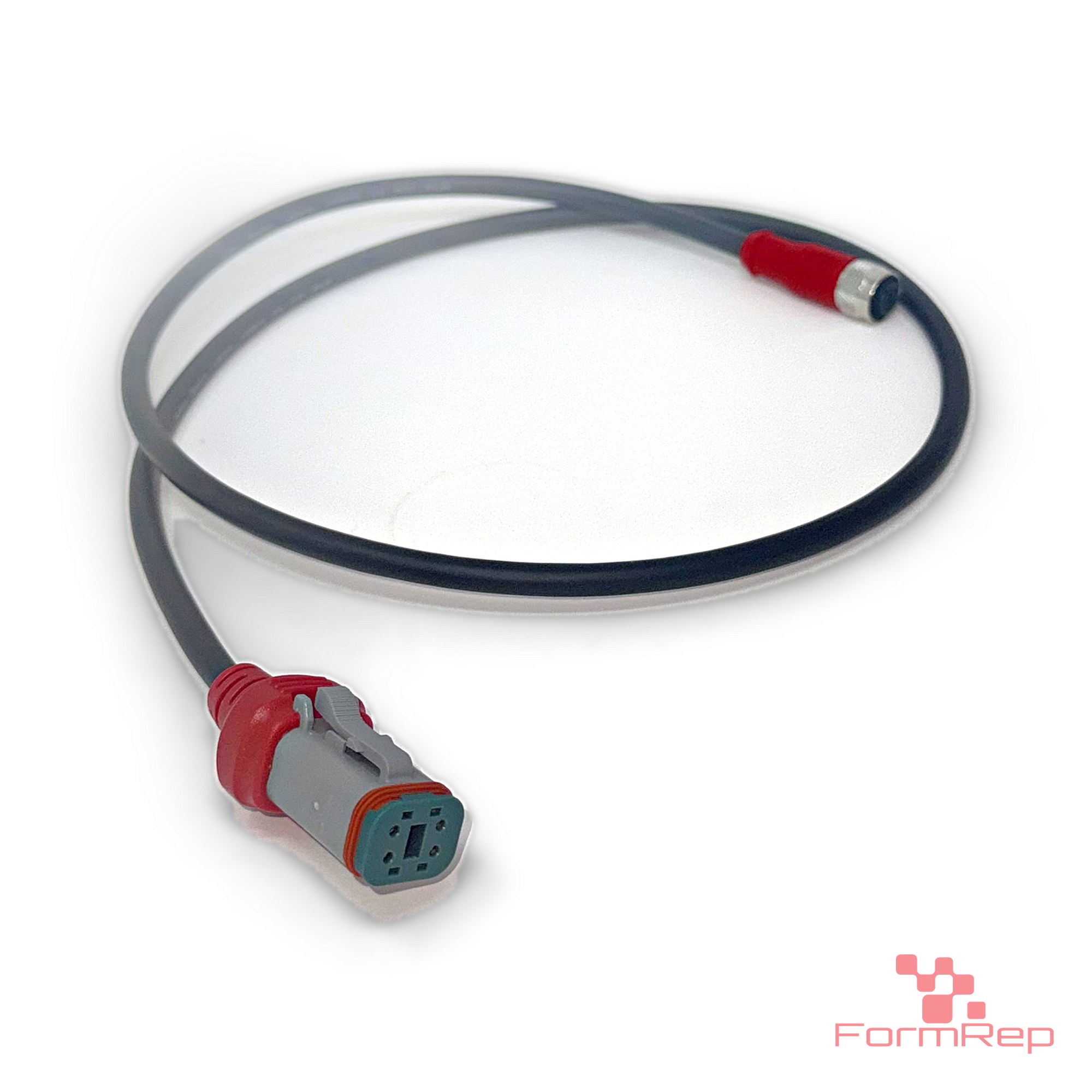

  • End 1: Amphenol AT06-4S socket housing with AW4S wedgelock (DT-compatible)

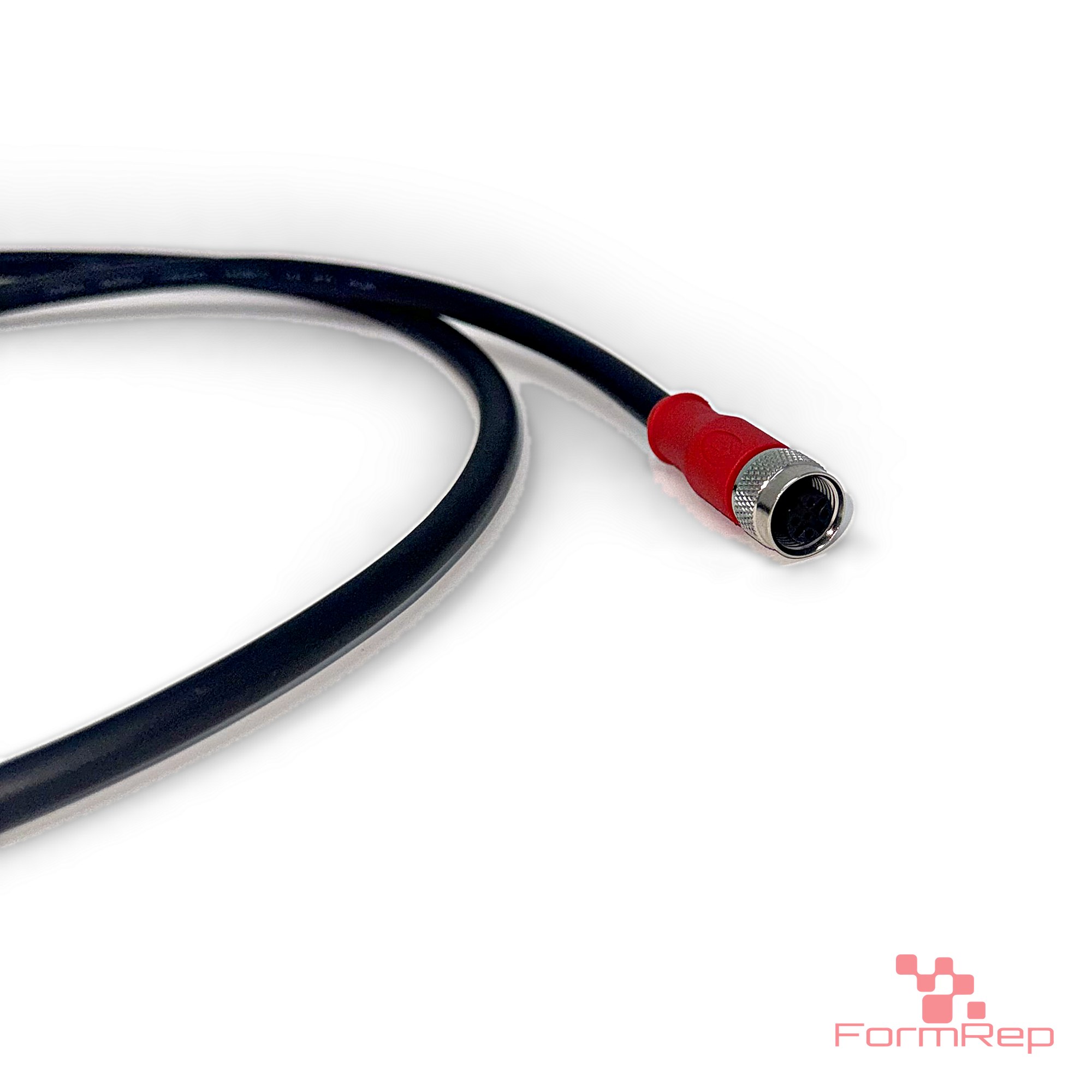

  • End 2: M12 × 1.0, A-coded, 4-pin female, straight, nickel-plated brass coupling nut with FKM O-ring
  • Cable: 18 AWG, 4 conductors + filler, black PUR jacket, Ø6.5 mm
  • Length: 1.0 m (1000 mm ±30)
  • Ratings: 250 V AC/DC · 4 A per contact · −40 to +105 °C (cable rated 300 V)
  • Pinout (AT → M12): straight through, 1→1 brown · 2→2 white · 3→3 blue · 4→4 black
  • Overmold: red PVC (AT end) · red TPU (M12 end)
  • 100% production tested for opens/shorts, insulation resistance, contact resistance, and hi-pot (300 V DC, 10 ms)

Cross-reference

Replaces: Murrelektronik 7072-77301-5690100 (direct interchange)
Brand names are trademarks of their owners; used for identification only.

See the full cross-reference list →
