Description

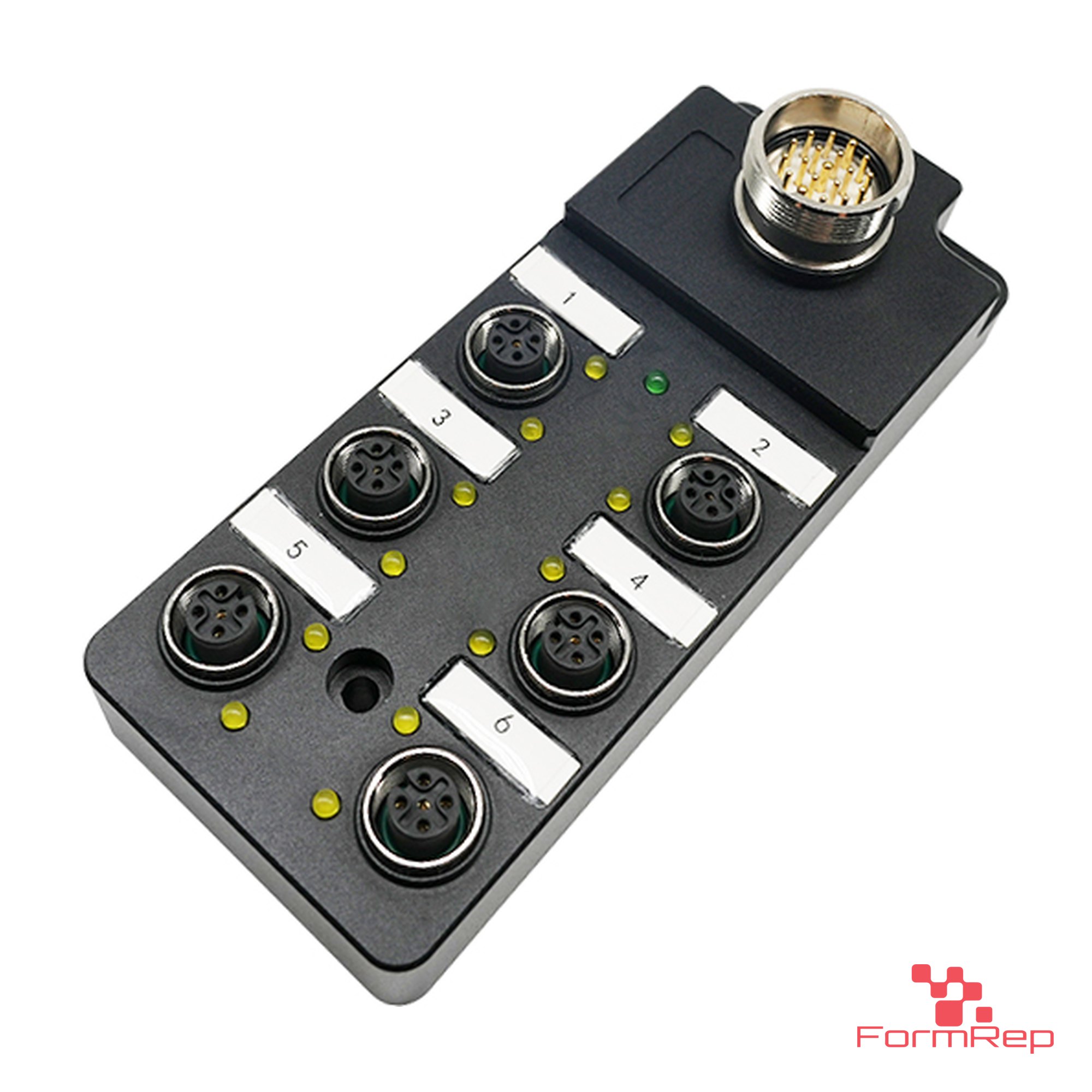

Six-port M12 junction box (sensor/actuator distribution box) that gathers six 5-pin A-coded sensor ports onto a single M23 19-pin connector, so one home-run cable replaces six.
Specifications

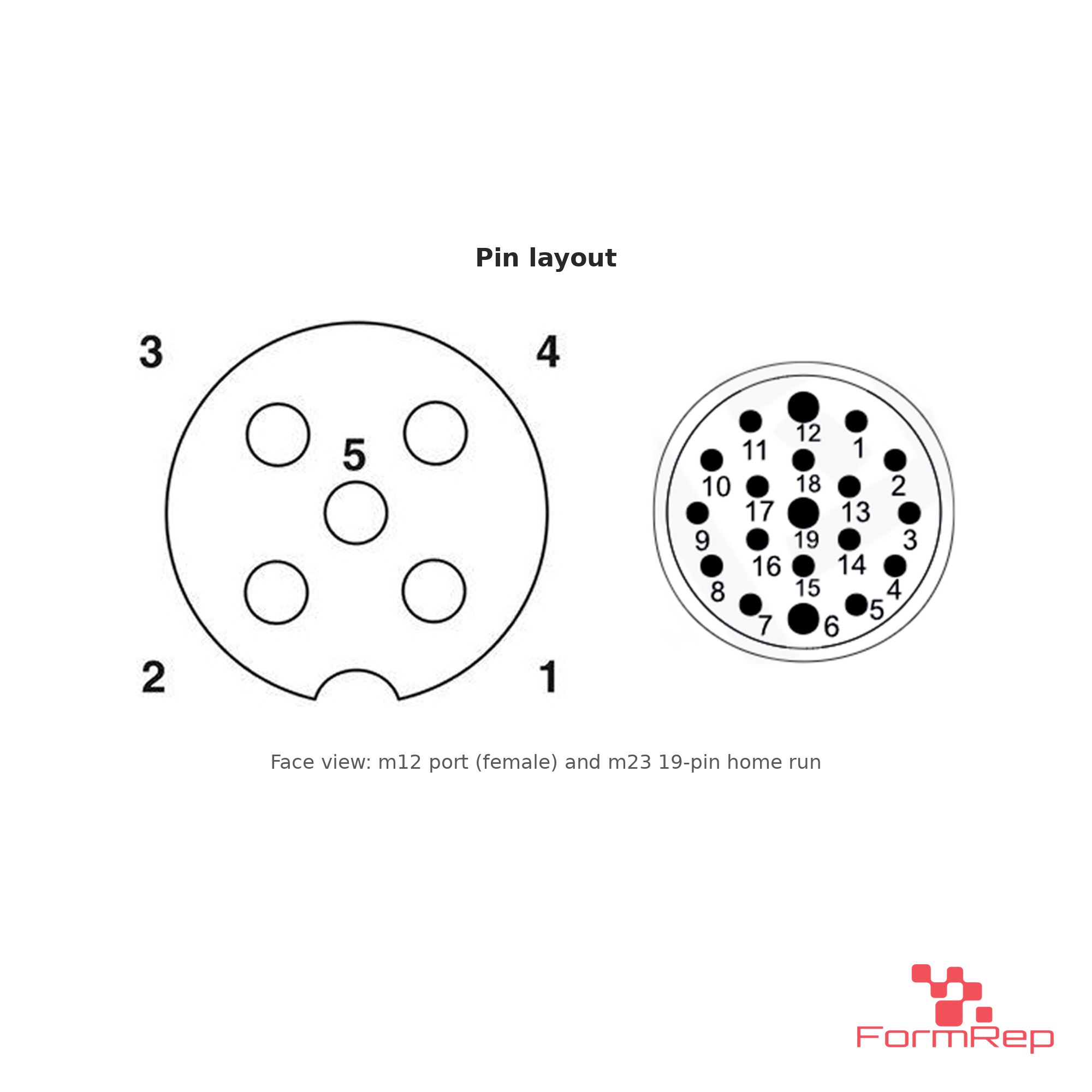

- Ports: 6 × M12 × 1.0 A-coded 5-pin female
- Home run: M23 19-pin male connector on the box
- Indicators: power and signal LEDs
- Rating: 60 V, 4 A
- Size: 134 × 55 × 23.5 mm, two mounting holes
- Materials: TPU / PA66 + GF body · gold-plated contacts
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
JB-M12A-6X5P-M23-19P. Example: JB-M12A-6X5P-M23-19P = 6-port M12 junction box with M23 19-pin connector.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative.
Need a different length, pinout or connector combination? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
