Description

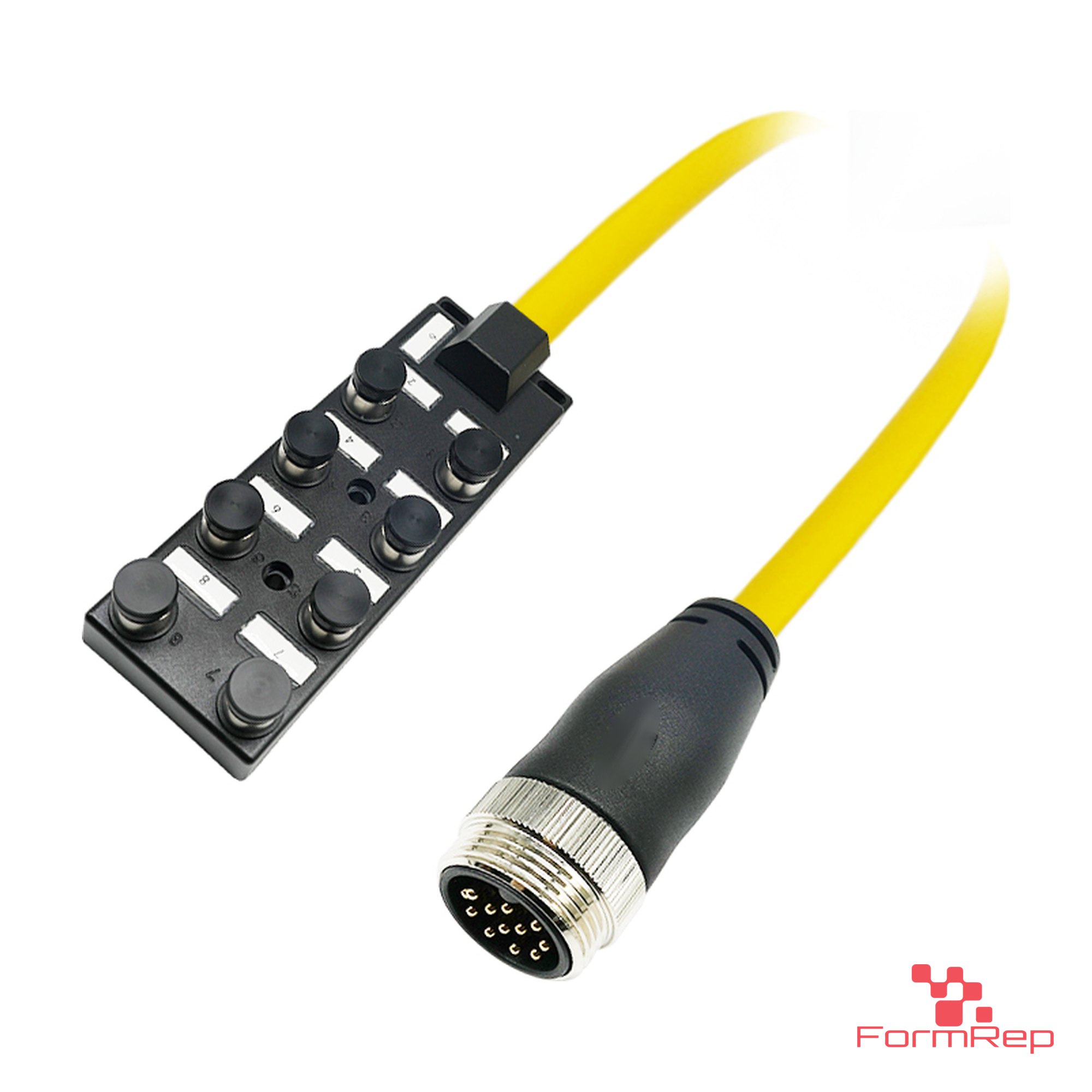

Eight-port M12 junction box that gathers eight sensor signals onto one home-run cable with a 1 1/8″-16UN quick-disconnect connector, with common power and ground. Choose the length; the configuration code updates as you pick.
Specifications
- Ports: 8 × M12 × 1.0 A-coded 5-pin female
- Home run: yellow cable with a 1 1/8″-16UN male connector, 1, 2, 5 or 10 m

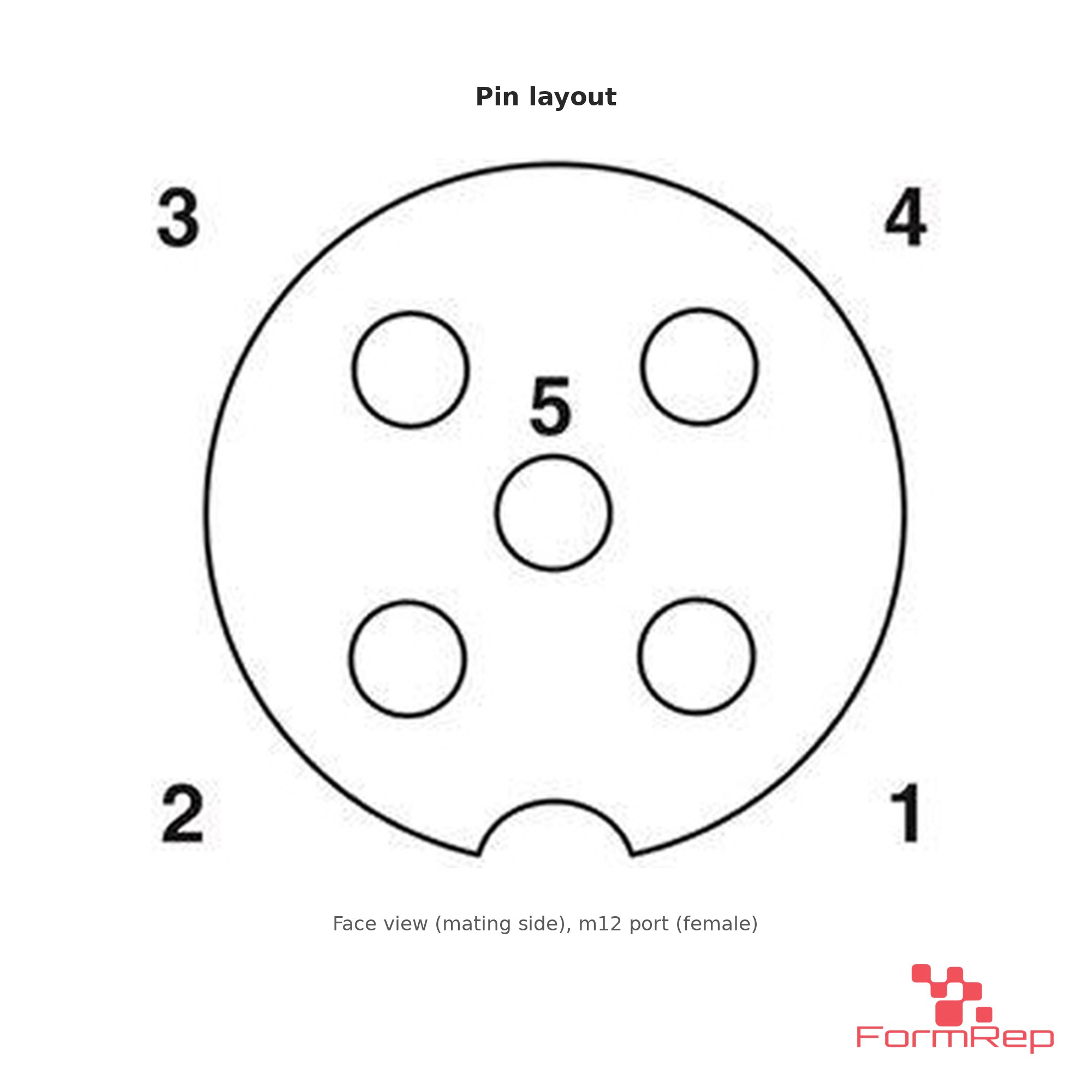

- Wiring: common +V, 0 V and ground; pin 4 of each port to its own conductor
- Rating: 250 V, 4 A per port (confirmed at quote)
- Size: 151.9 × 54 mm
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
JB-M12A-8X5P-118M-[1M/2M/5M/10M]. Example: JB-M12A-8X5P-118M-5M = 8-port M12 junction box with 5 m home run to a 1 1/8″-16UN male connector.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative.
Need a different length, pinout or connector combination? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
