Description

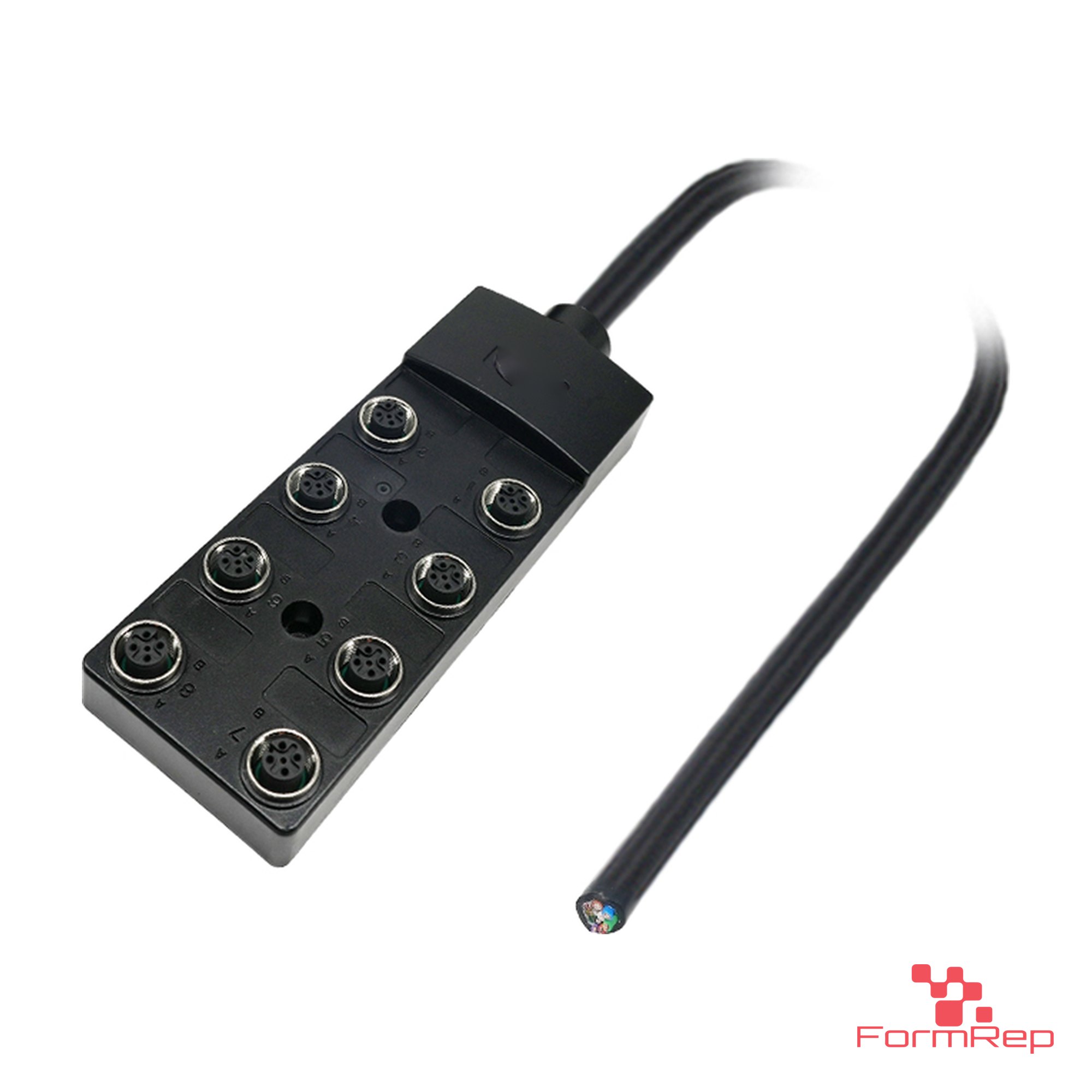

Eight-port M12 junction box that collects eight sensor signals onto one open-end home-run cable for wiring straight into a cabinet or terminal block. Choose the length; the configuration code updates as you pick.
Specifications

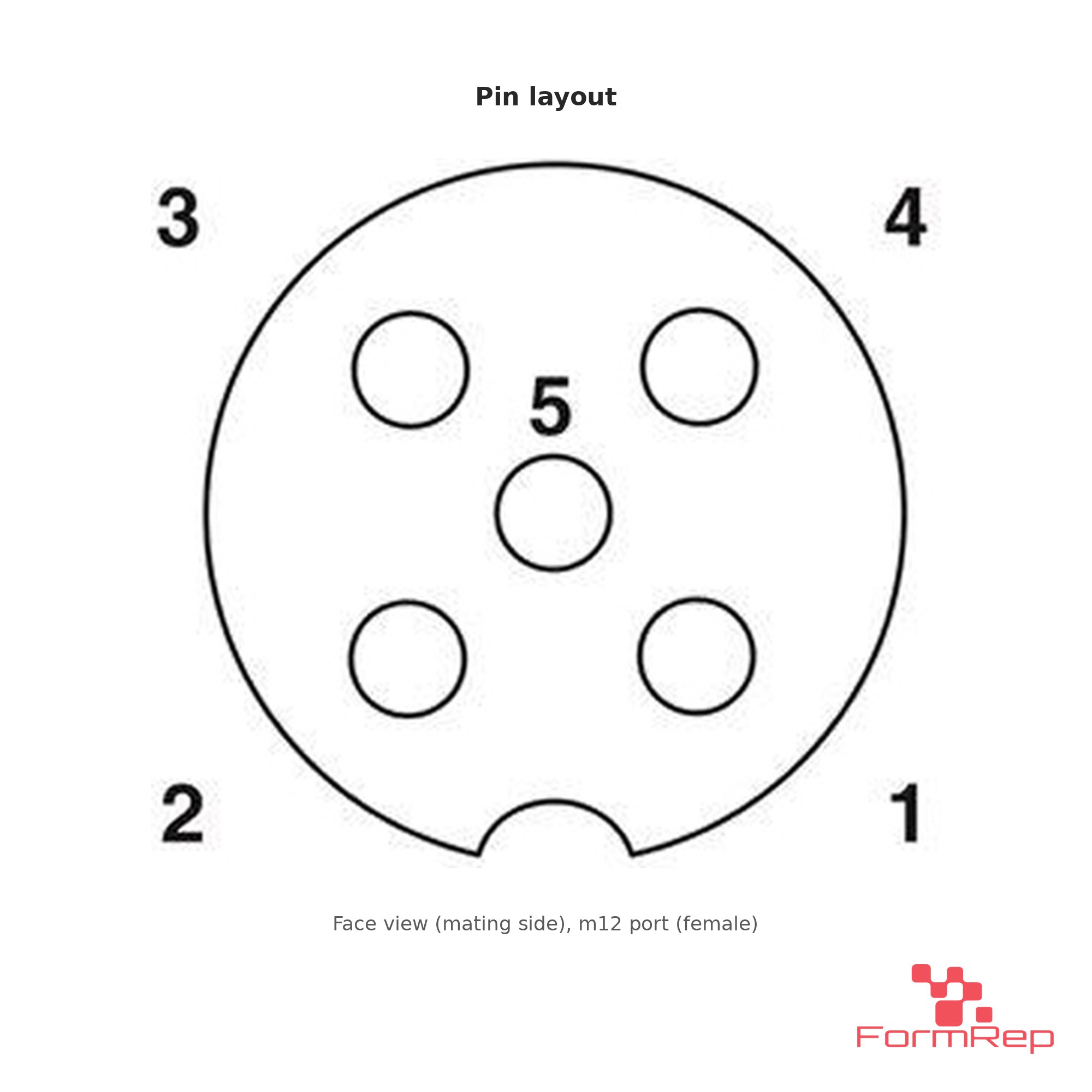

- Ports: 8 × M12 × 1.0 A-coded 5-pin female
- Home run: cable with open conductors, 1, 2, 5 or 10 m
- Wiring: common +V, 0 V and ground; one signal conductor per port
- Rating: 250 V, 4 A per port (confirmed at quote)
- Size: 148.7 × 54 mm
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
JB-M12A-8X5P-OE-[1M/2M/5M/10M]. Example: JB-M12A-8X5P-OE-5M = 8-port M12 junction box with 5 m open-end home-run cable.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative.
Need a different length, pinout or connector combination? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
