Description
Overmolded M12 A-coded extension cable with a male straight connector on one end and a female straight connector on the other, wired pin to pin. Use it to extend a sensor or I/O run or to connect a device to a distribution box. Choose the pin count, cable jacket, shielding and length; the configuration code updates as you pick.
Specifications
- Connectors: M12 × 1.0, A-coded, male straight to female straight, per IEC 61076-2-101
- Wiring: straight through, pin to pin

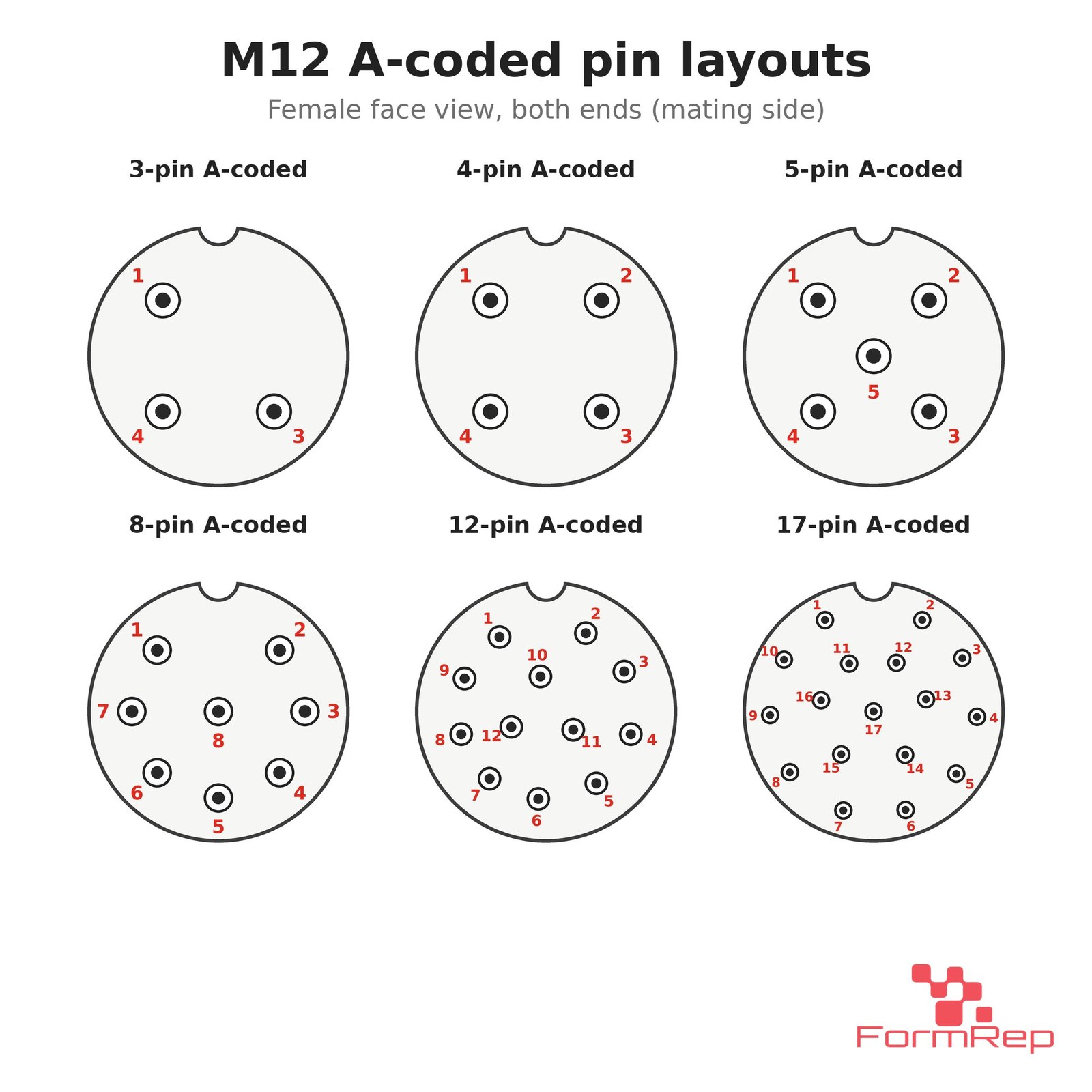

- Pins: 3, 4, 5 or 8 (see the pin layout image)
- Ratings: 3- and 4-pin 250 V, 4 A · 5-pin 60 V, 4 A · 8-pin 30 V, 2 A (current rating at 40 °C)
- Cable: PUR or PVC jacket, black, unshielded or shielded
- Lengths: 1 m, 2 m, 5 m or 10 m overall
- Operating temperature: −40 to +105 °C
- Materials: phosphor bronze contacts, gold plated · brass coupling, nickel plated · TPU overmold · FKM seal
- Insulation resistance: ≥ 100 MΩ · Contact resistance: ≤ 5 mΩ · Mating cycles: more than 100
- Compliance: RoHS, REACH
Configuration code
M12A-[pins]P-MF-ST-[PUR or PVC]-[U unshielded or S shielded]-[length]M. Example: M12A-4P-MF-ST-PUR-U-2M is a 4-pin, PUR, unshielded, 2 m extension.
Ordering
Built to order and priced by quote; standard configurations ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; pin count, jacket and length follow your selection.
Need a different length, angled heads, a different connector on one end or a splitter? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
