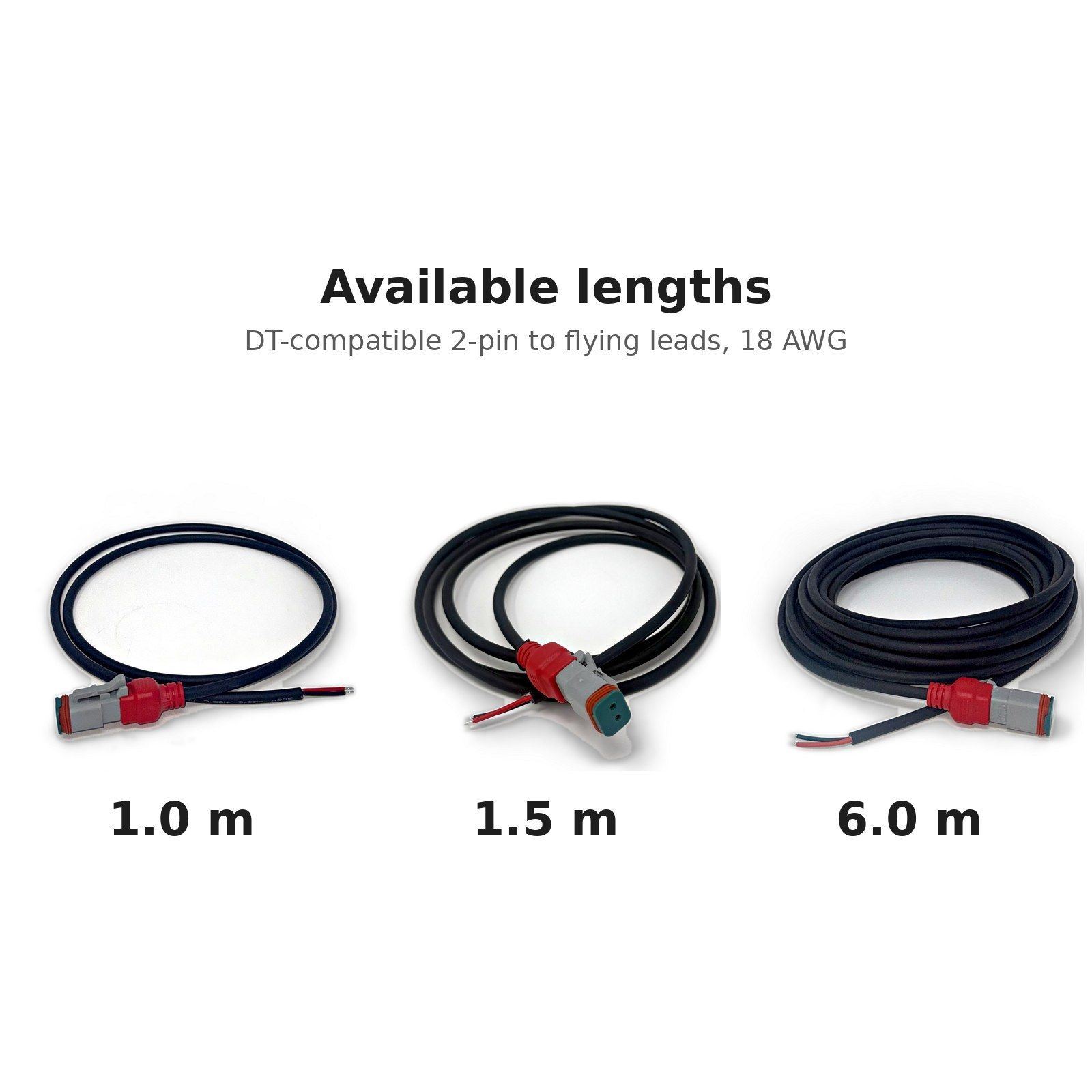

DT-Compatible 2-Pin Female to Flying Leads, 18 AWG, 1.0 – 10.0 m

Price range: $25.90 through $55.50

DT-compatible 2-pin female (Amphenol AT06-2S) pigtail with stripped, tinned flying leads on 18 AWG cable. Pick a length to see its photos, specs and cross-reference.

We acceptVISAAMEXDISCVERPayGPay
Prefer to buy on?View this part on DigiKey →

Need a different length? Other lengths, including lengths in feet, are built to order. Request a quote.

Buying in volume? Contact us for volume pricing options.

See it in action

DT-Compatible 2-Pin Female to Flying Leads, 18 AWG, 1.0 – 10.0 m video

Description

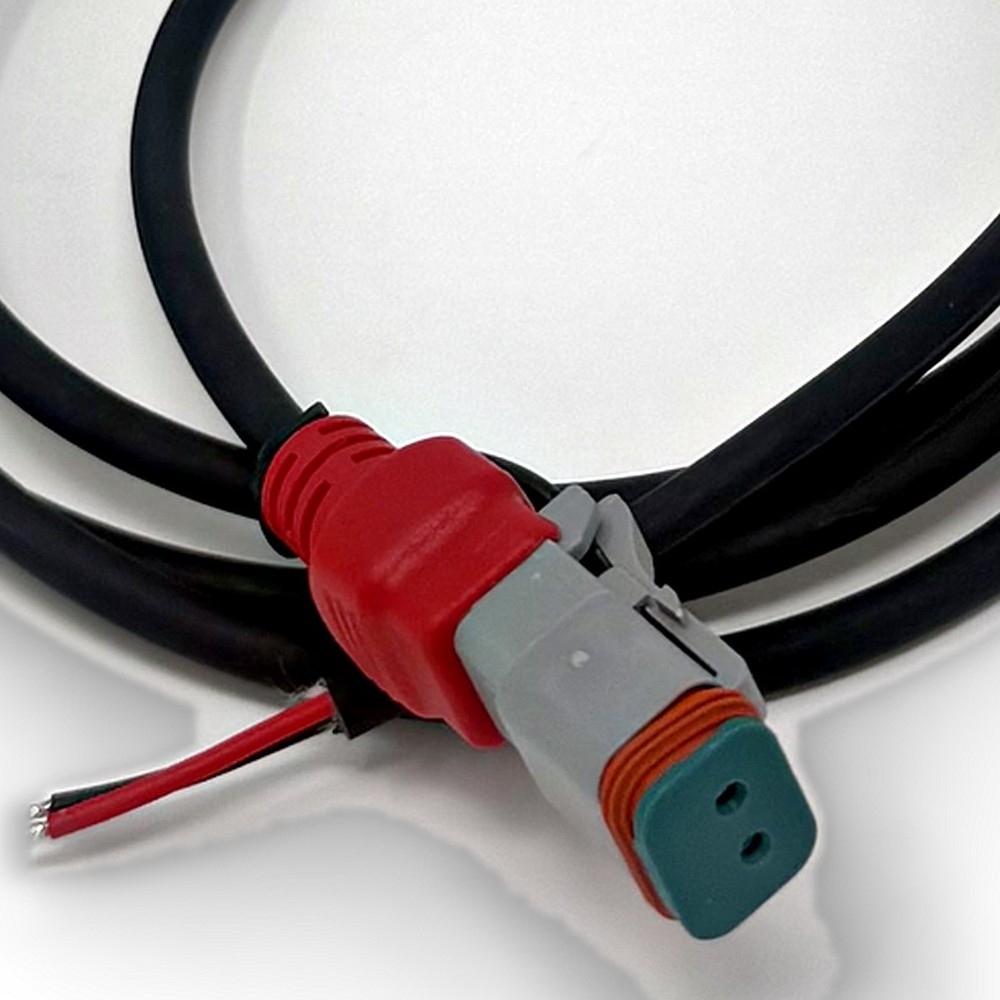

A 2-pin Amphenol AT-series socket (DT-compatible) on 18 AWG two-conductor cable, finished with stripped and tin-plated flying leads, ready to wire into your harness, junction box or controller. Pick a length above to see the cable and cross-reference for that length. See the full cross-reference list →

Specifications (all lengths)

  • End 1: Amphenol AT06-2S socket housing with AW2S wedgelock (DT-compatible)
  • End 2: flying leads, 25 mm jacket strip, 4 mm tinned ends
  • Wire gauge: 18 AWG, Ø5.0 mm cable
  • Pinout: 1 red · 2 black
  • Ratings: 300 V AC/DC · 4 A per contact · −40 to +105 °C (1.0 m PUR) or −40 to +125 °C (1.5 m and 6.0 m heavy-duty XLPE)
  • 100% production tested for opens/shorts, insulation resistance, contact resistance, and hi-pot (300 V DC, 10 ms)

Brand names are trademarks of their owners; used for identification only.

Need a different length, connector, or private label? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.

Select a length above to see its drawing.

Select a length above to see its datasheet.
