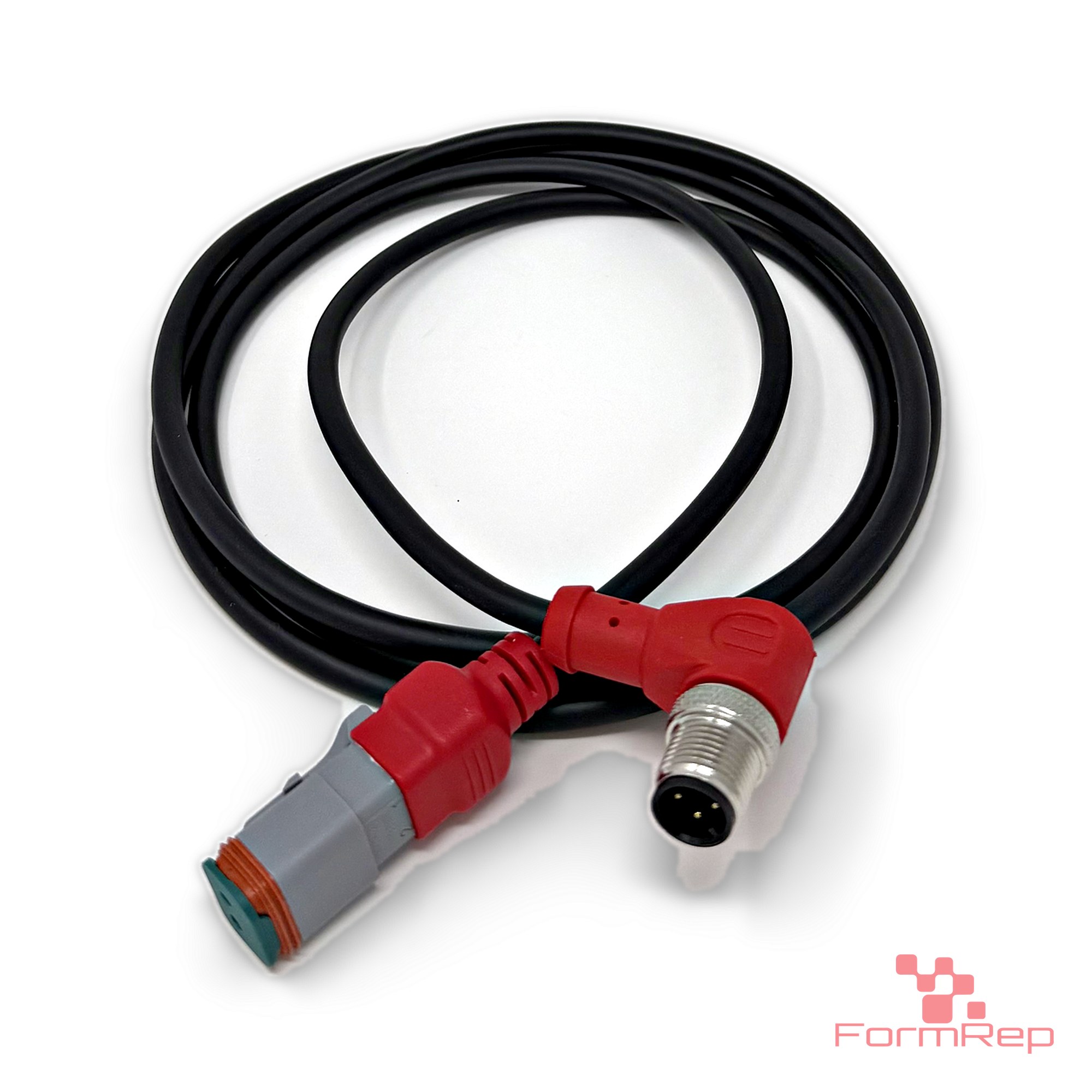

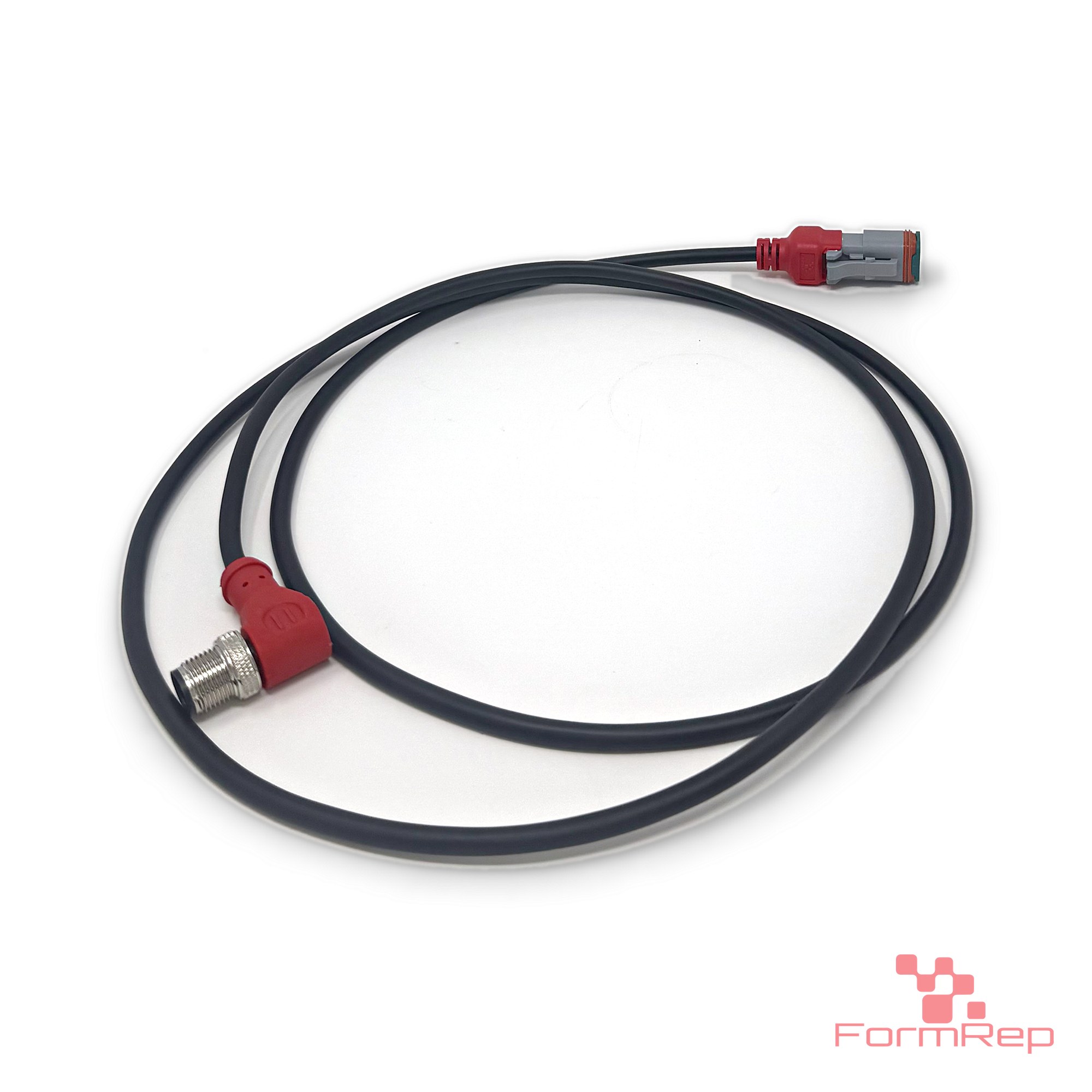

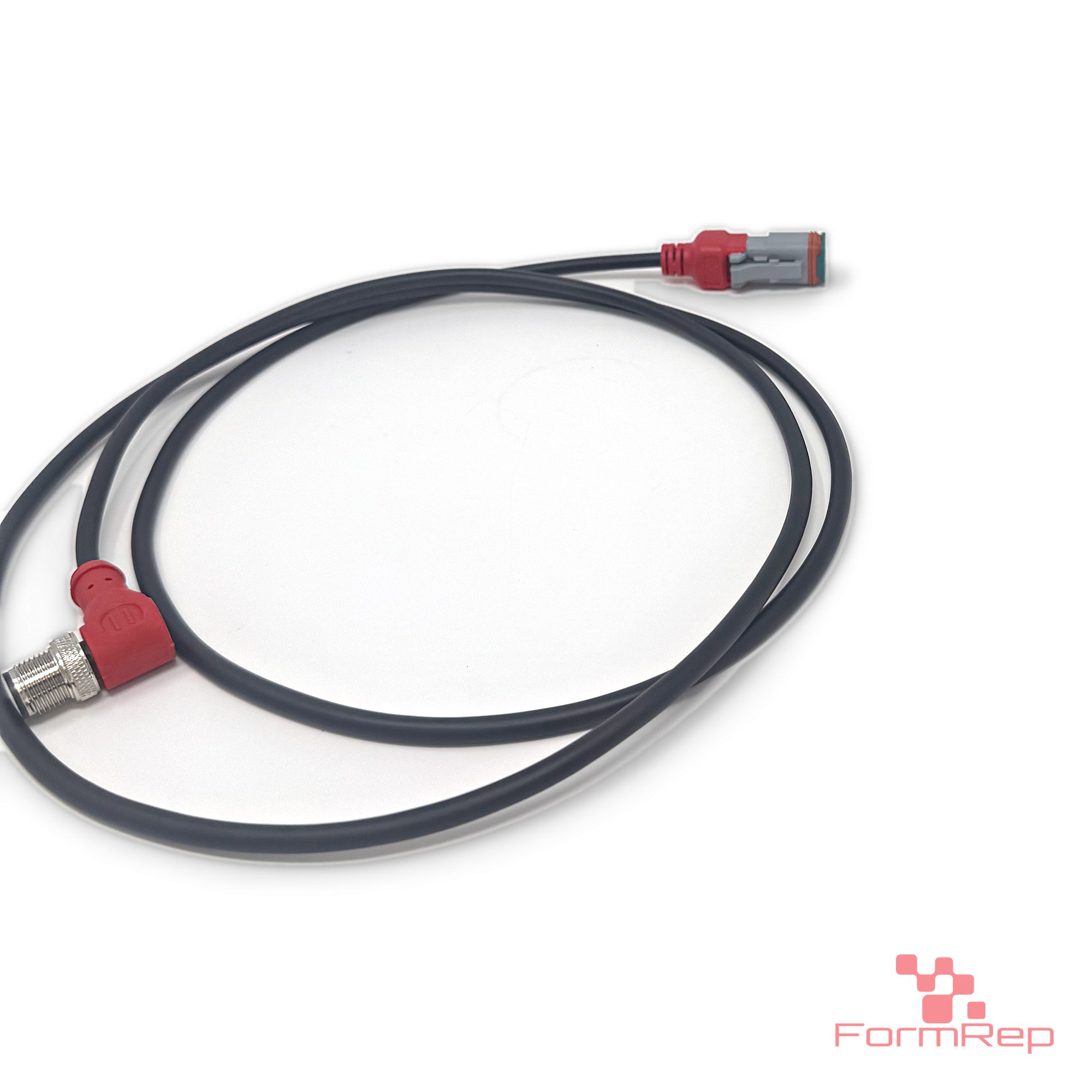

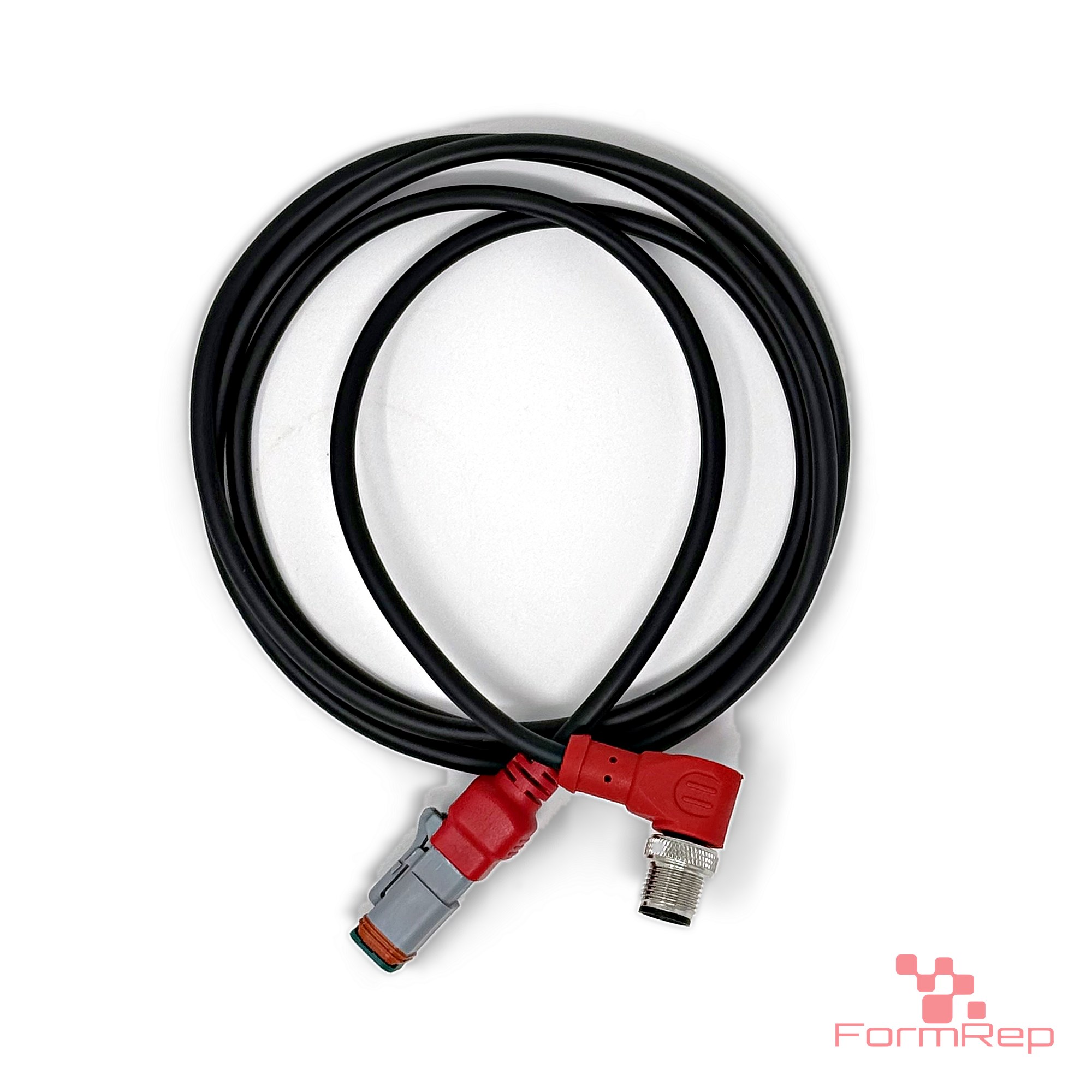

DT-Compatible 2-Pin Female to M12 Male 90° Cable, 18 AWG

$33.30

DT-compatible 2-pin female (Amphenol AT06-2S) to M12 A-coded 4-pin male right-angle cordset. 18 AWG PUR, 1.5 m. Drop-in interchange for Murrelektronik 7072-43231-7540150.

We acceptVISAAMEXDISCVERPayGPay
Prefer to buy on?DigiKey part 6762-C-D02FS-M04MR-P0218-1M5-S-ND →

Need a different length? Other lengths, including lengths in feet, are built to order. Request a quote.

Buying in volume? Contact us for volume pricing options.

See it in action

DT-Compatible 2-Pin Female to M12 Male 90° Cable, 18 AWG video

Description

Bridge DT-style equipment wiring to M12 sensors and I/O with a single molded cordset. This assembly pairs a 2-pin Amphenol AT-series socket with a right-angle M12 A-coded male connector on 1.5 m of 18 AWG PUR cable — a direct interchange for Murrelektronik 7072-43231-7540150.

Specifications

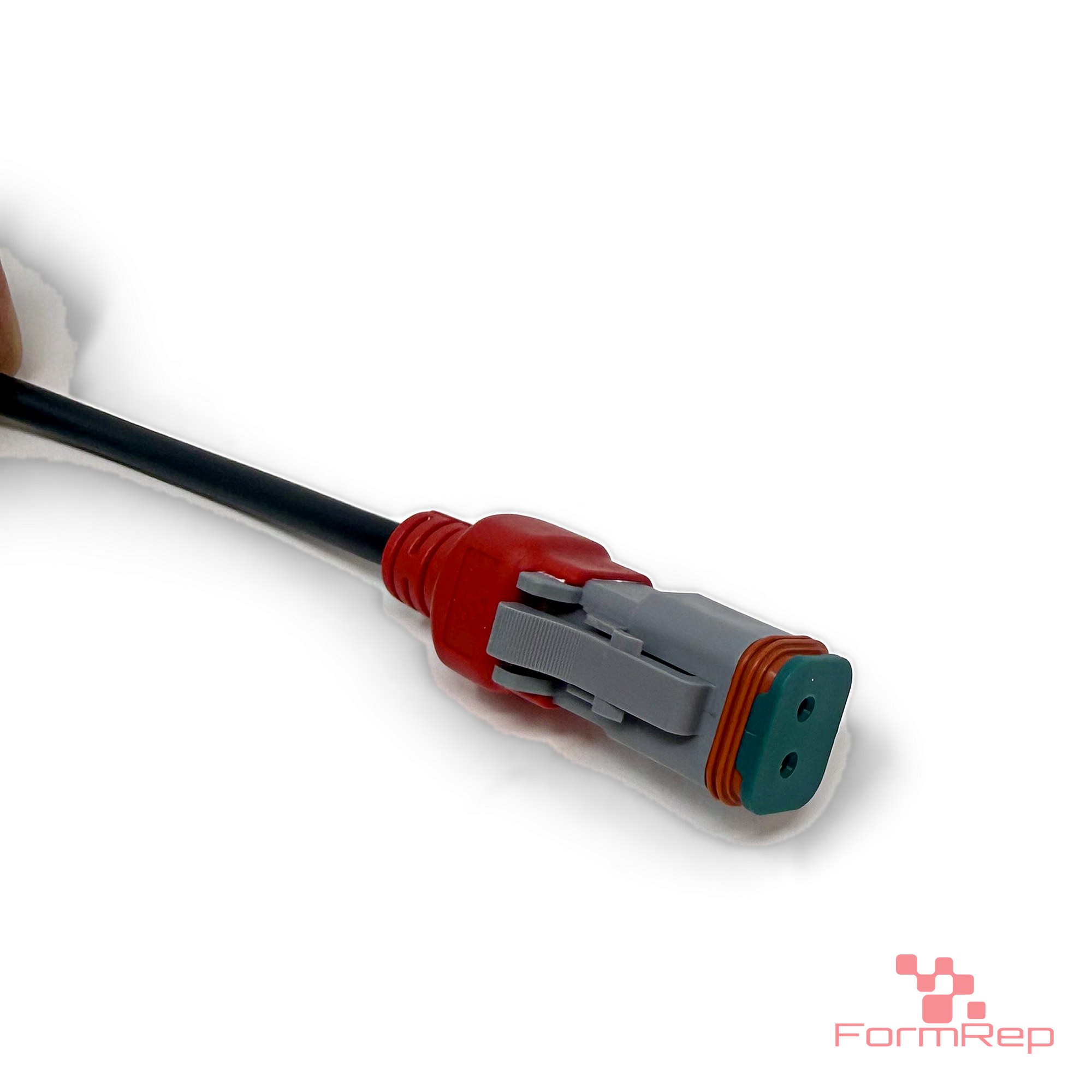

  • End 1: Amphenol AT06-2S socket housing with AW2S wedgelock (DT-compatible)

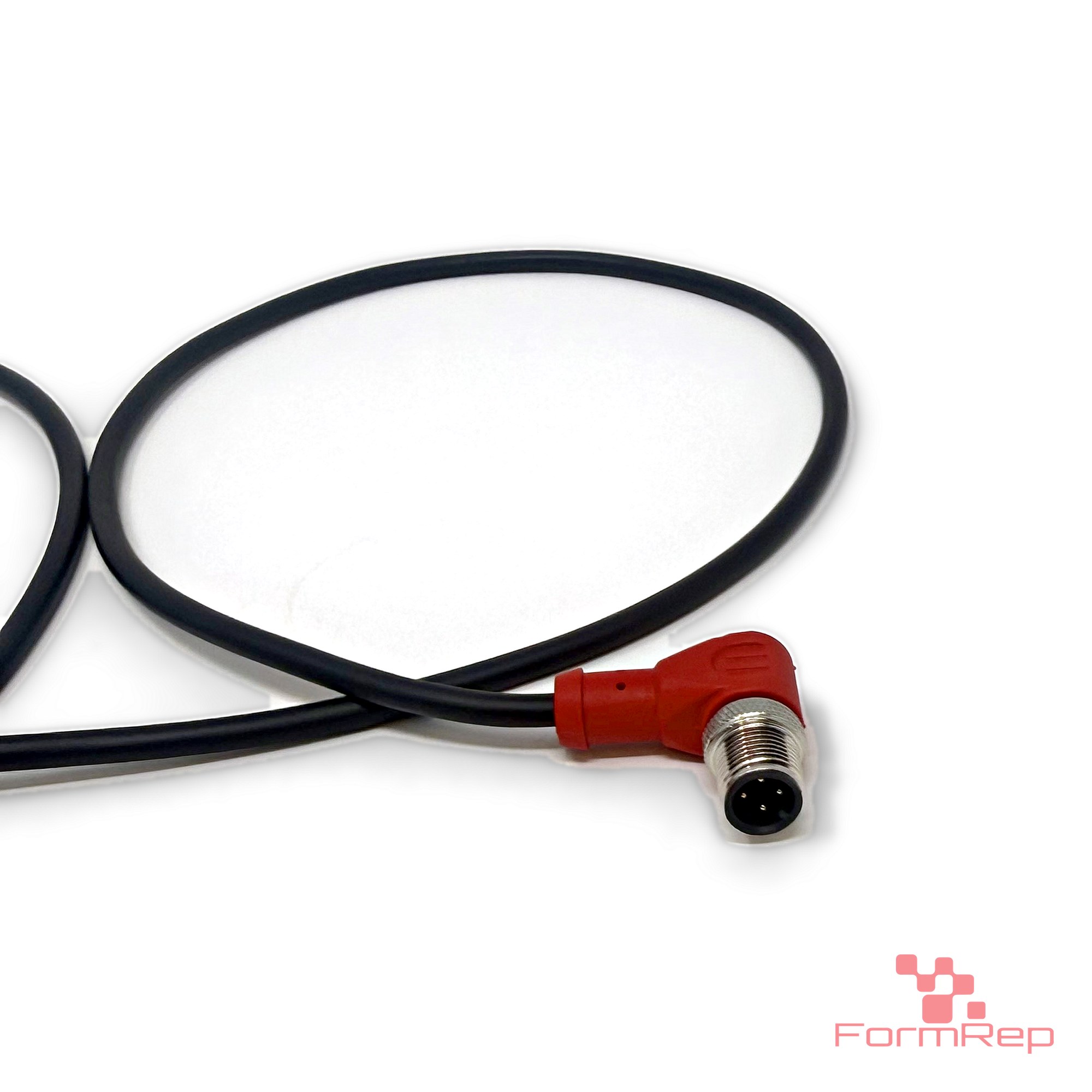

  • End 2: M12 × 1.0, A-coded, 4-pin male, 90° right-angle, nickel-plated brass coupling
  • Cable: 18 AWG, 2 conductors + filler, black PUR jacket, Ø5.0 mm
  • Length: 1.5 m (1500 mm ±30)
  • Ratings: 250 V AC/DC · 4 A per contact · −40 to +105 °C (cable rated 300 V)
  • Pinout: AT pin 1 → M12 pin 4 (black); AT pin 2 → M12 pin 3 (red); M12 pins 1 and 2 not connected
  • Overmold: red PVC (AT end) · red TPU (M12 end)
  • 100% production tested for opens/shorts, insulation resistance, contact resistance, and hi-pot (300 V DC, 10 ms)

Cross-reference

Replaces: Murrelektronik 7072-43231-7540150 (direct interchange)
Brand names are trademarks of their owners; used for identification only.

See the full cross-reference list →

Need a different length, connector, or private label? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
