Description
M12 × 1.0 B-coded field-attachable connector with solder termination in a metal, shielded housing, for wiring an M12 B-coded connection onto your own cable in the field. Choose your options; the configuration code updates as you pick.
Specifications
- Connector: M12 × 1.0, B-coded, male or female, per IEC 61076-2-101
- Head: straight or right-angle

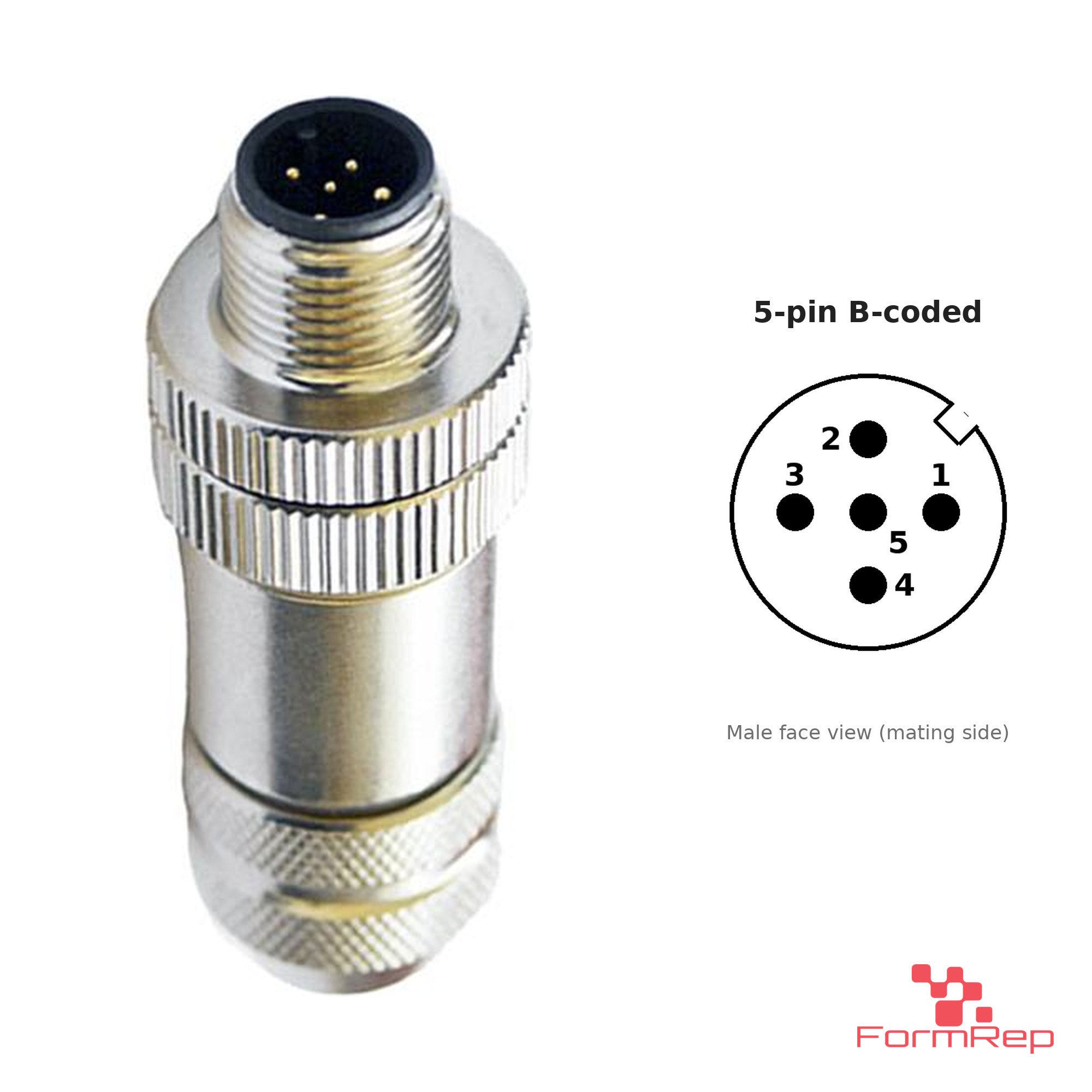

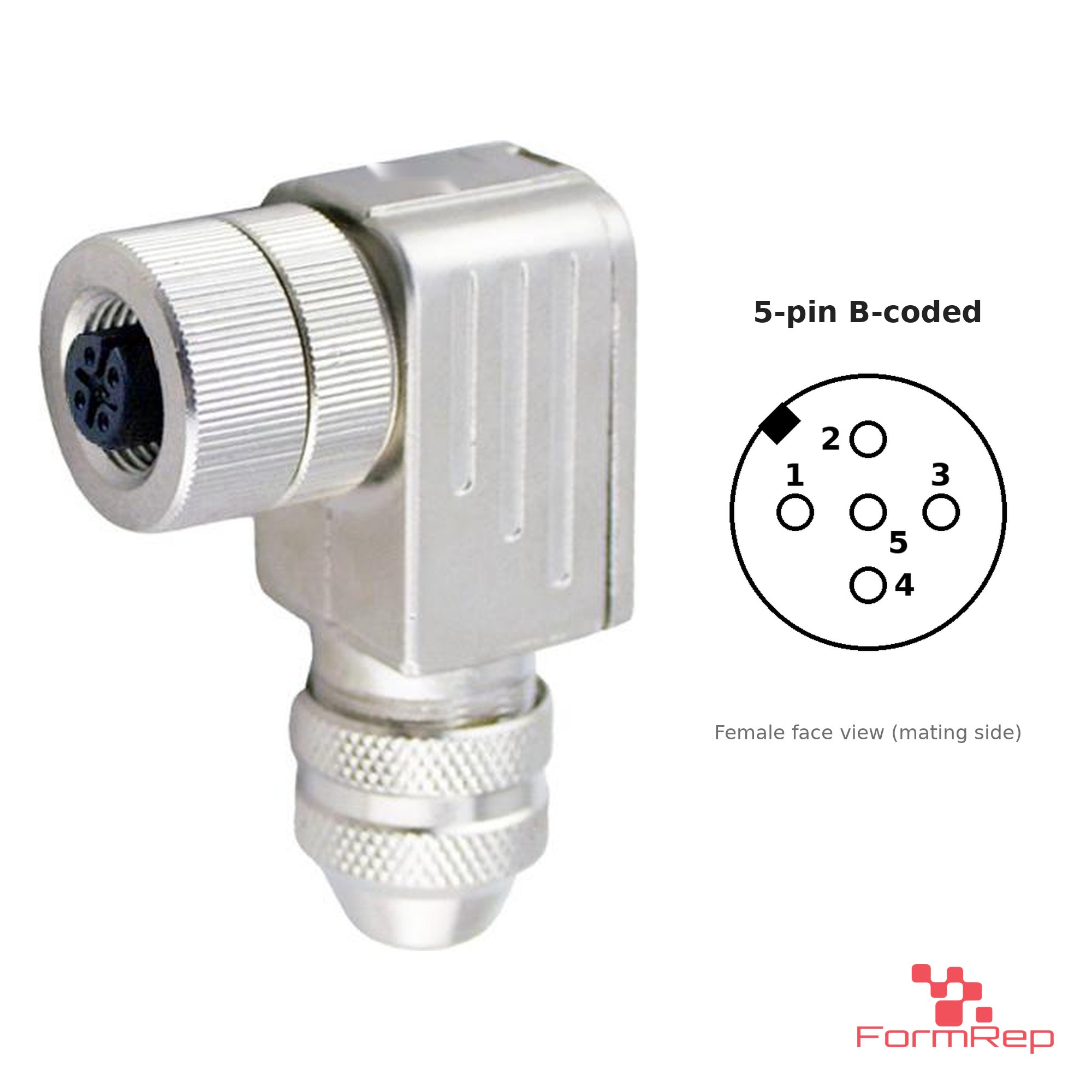

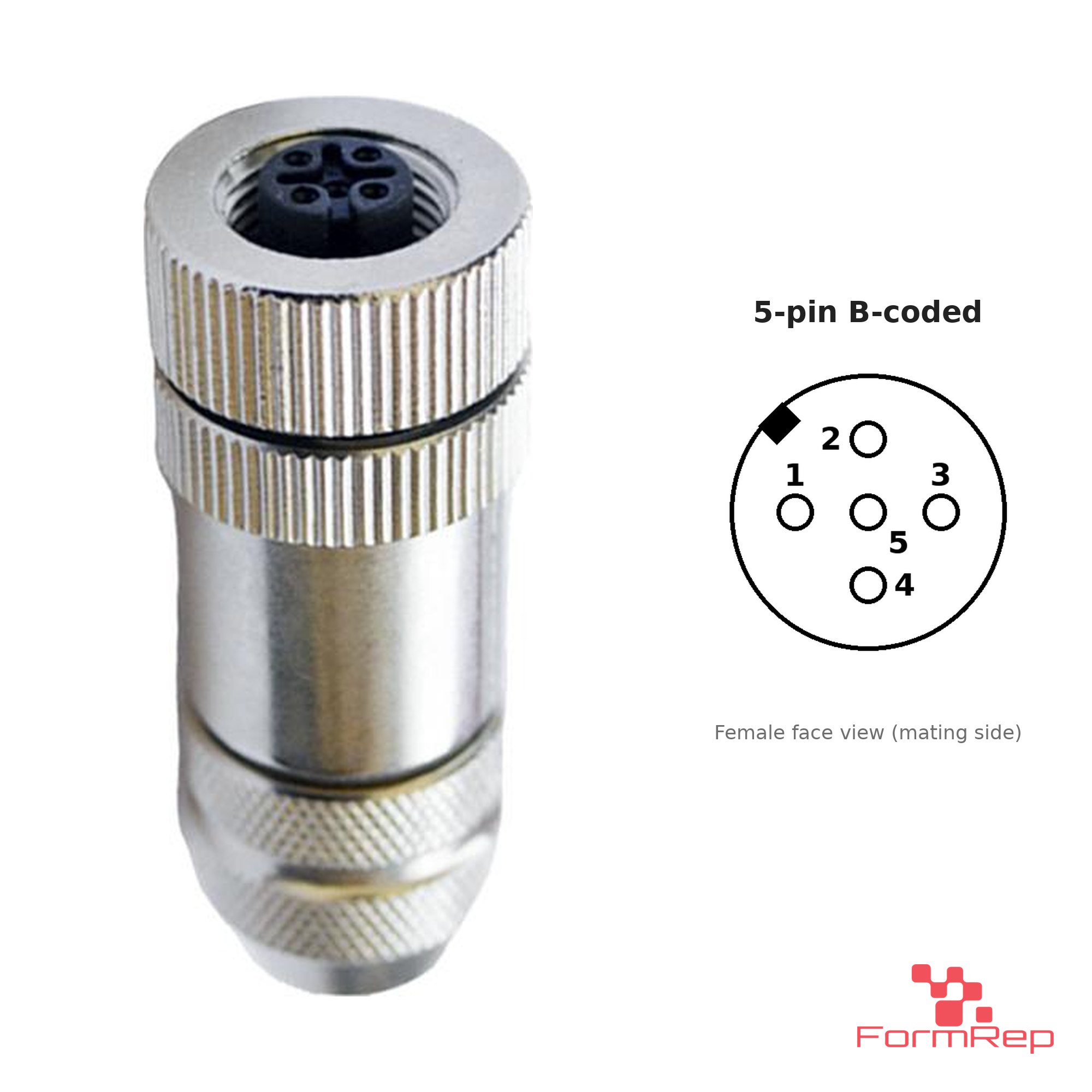

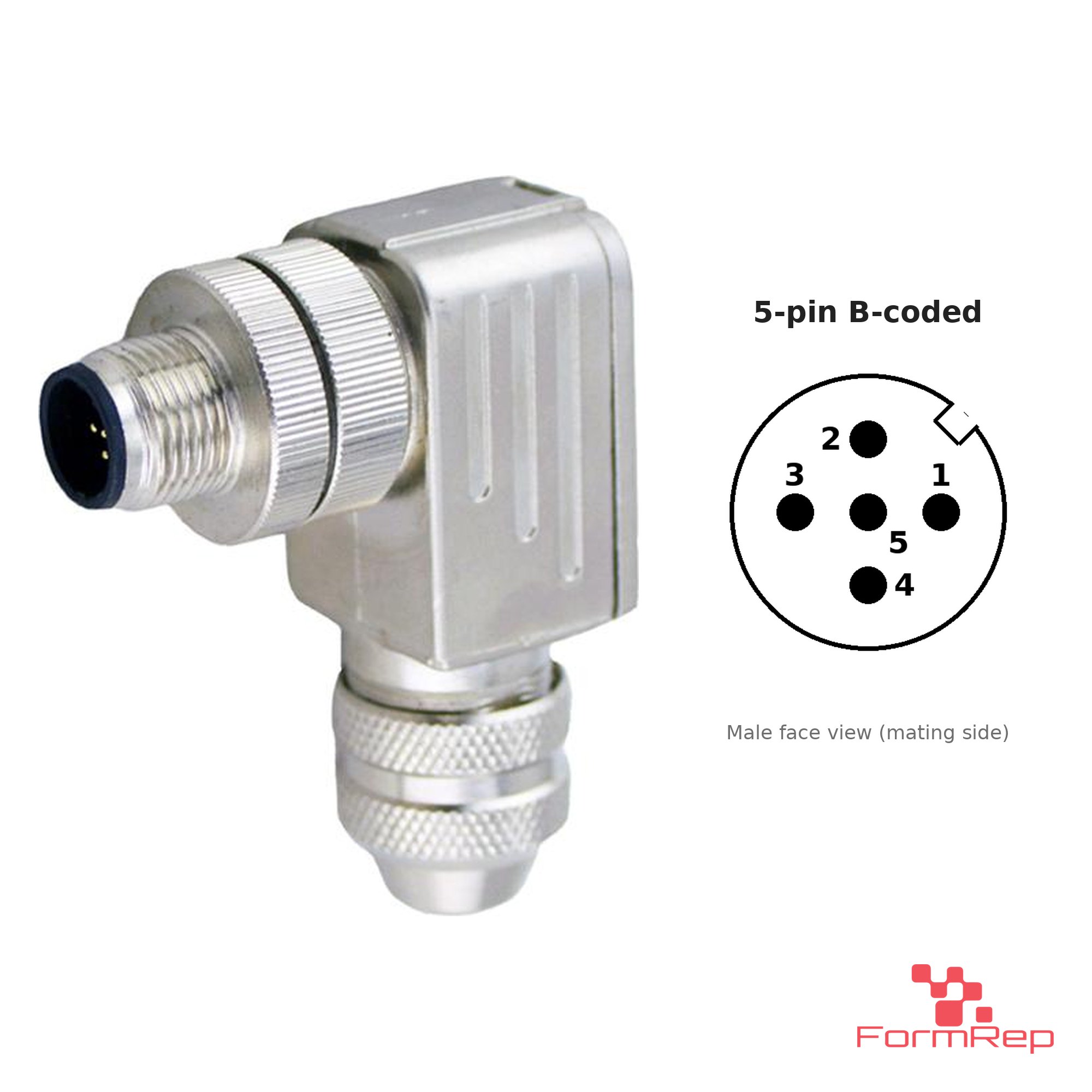

- Pins: 5 (B-coded; see the pin layout image)
- Ratings: 5-pin 60 V, 4 A (current rating at 40 °C)
- Termination: solder, 0.14 to 0.75 mm² (26 to 18 AWG)
- Cable entry: PG7: 4 to 6 mm cable · PG9: 6 to 8 mm cable
- Materials: brass contacts, gold plated · brass coupling nut, nickel plated · metal housing, nickel plated, shielded · TPU insert · FKM seal
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
M12B-5P-[M/F]-[ST/RA]-FAS-[PG7/PG9]. Example: M12B-5P-M-ST-FAS-PG7 = 5-pin B-coded male straight field-attachable connector, metal shielded, PG7 cable entry.
