Description
M12 × 1.0 D-coded panel-mount receptacle with PCB pins, for bringing industrial Ethernet and signal connections through an enclosure wall onto a circuit board. Choose your options; the configuration code updates as you pick.
Specifications
- Connector: M12 × 1.0, D-coded, male or female, per IEC 61076-2-101
- Mounting: straight front or rear mount, or right-angle front mount

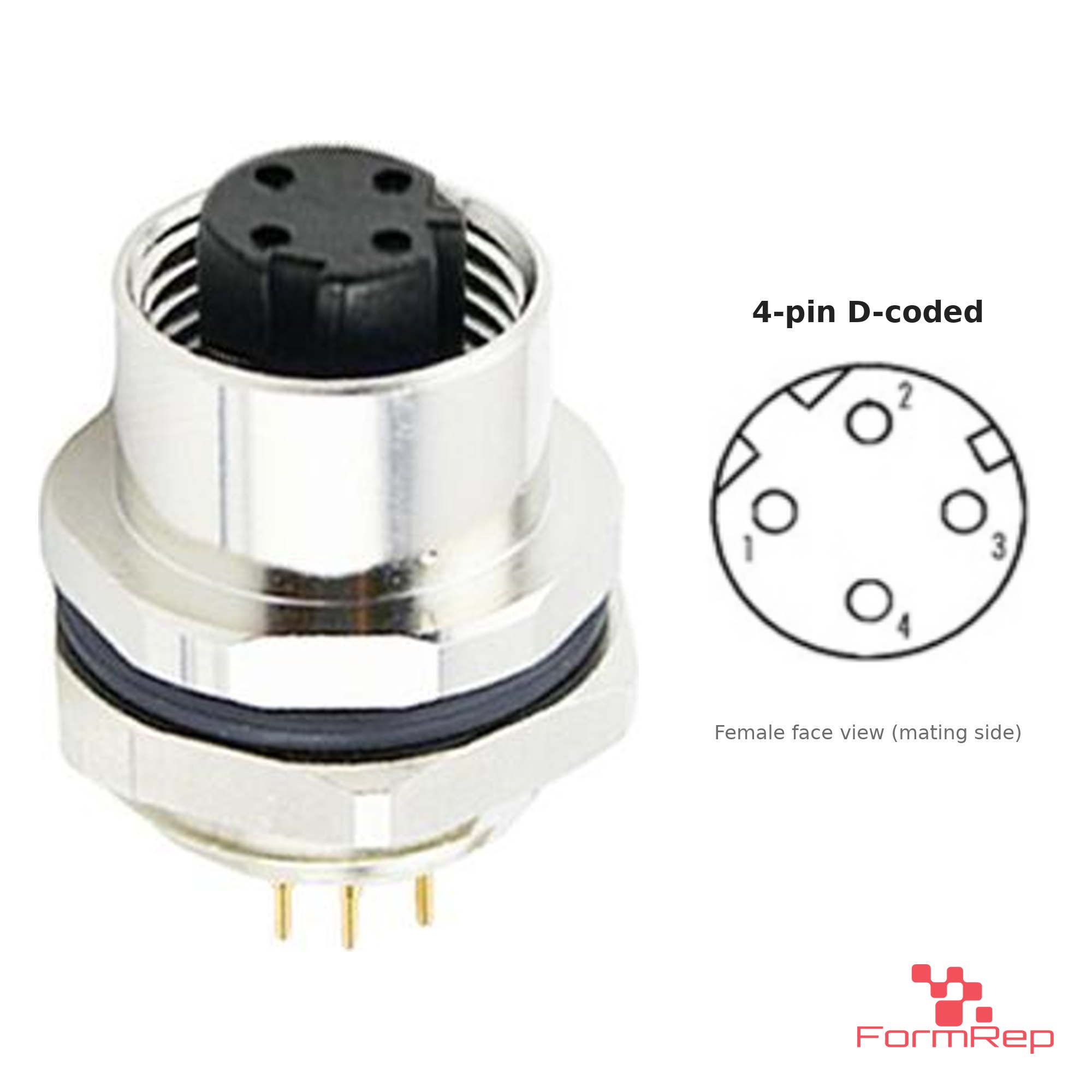

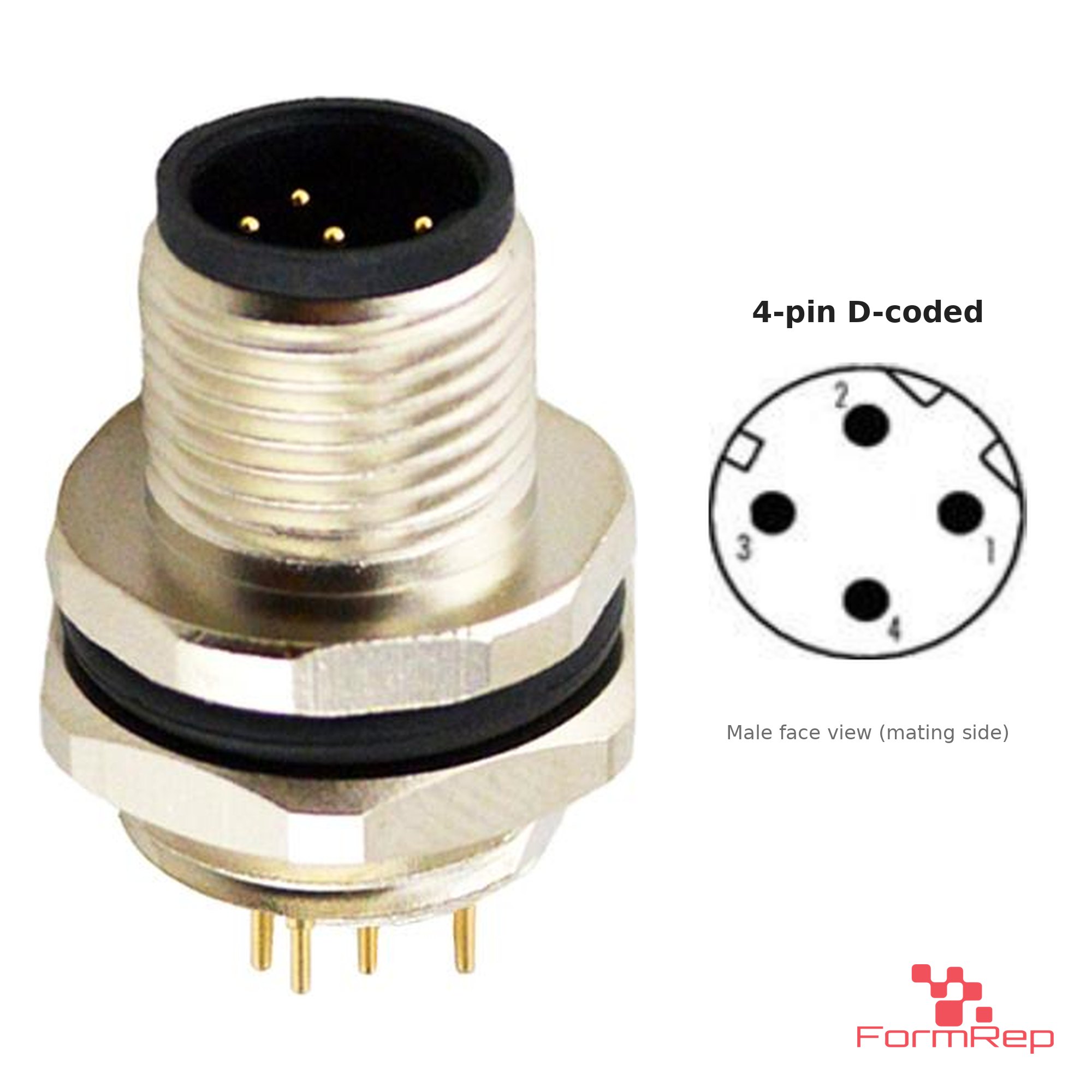

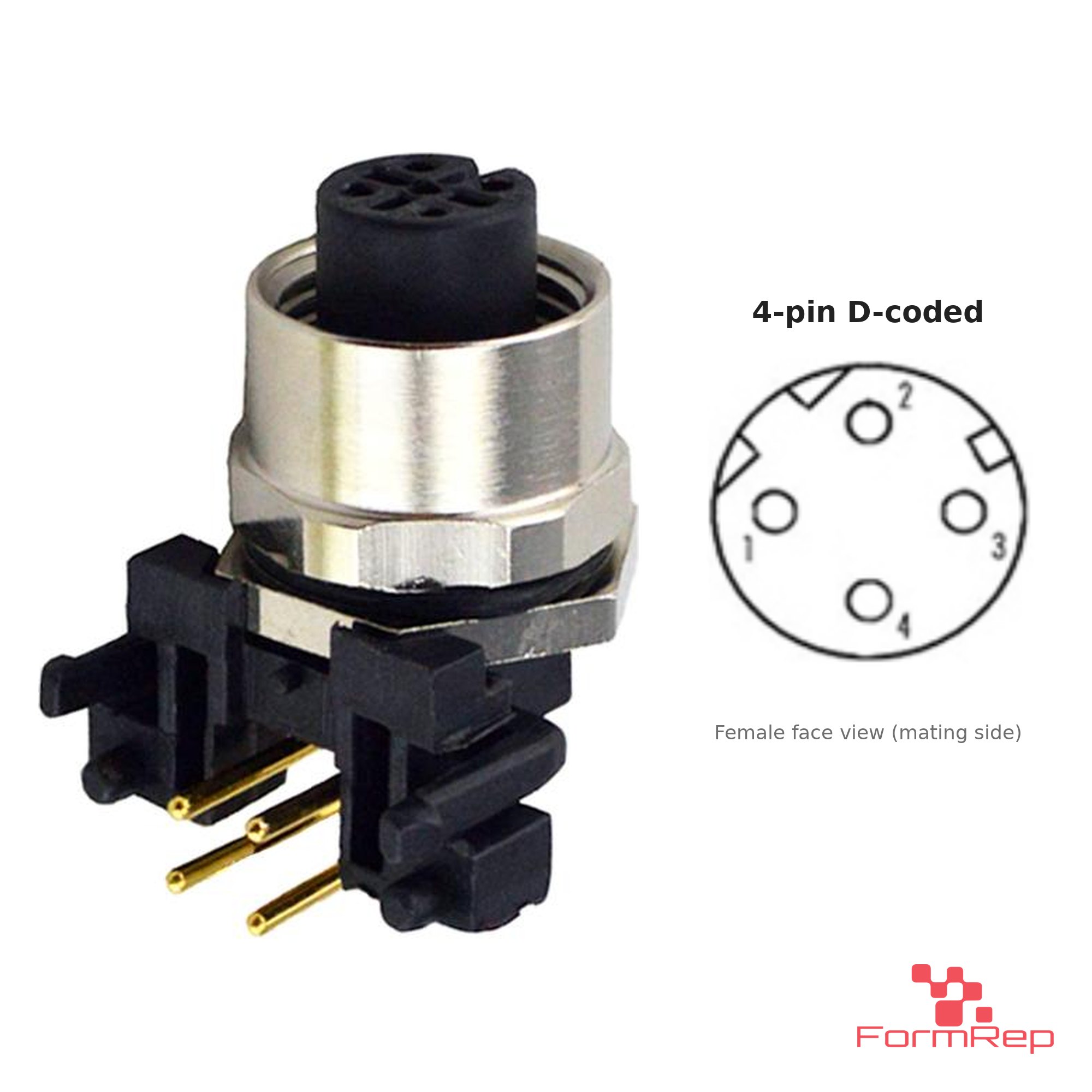

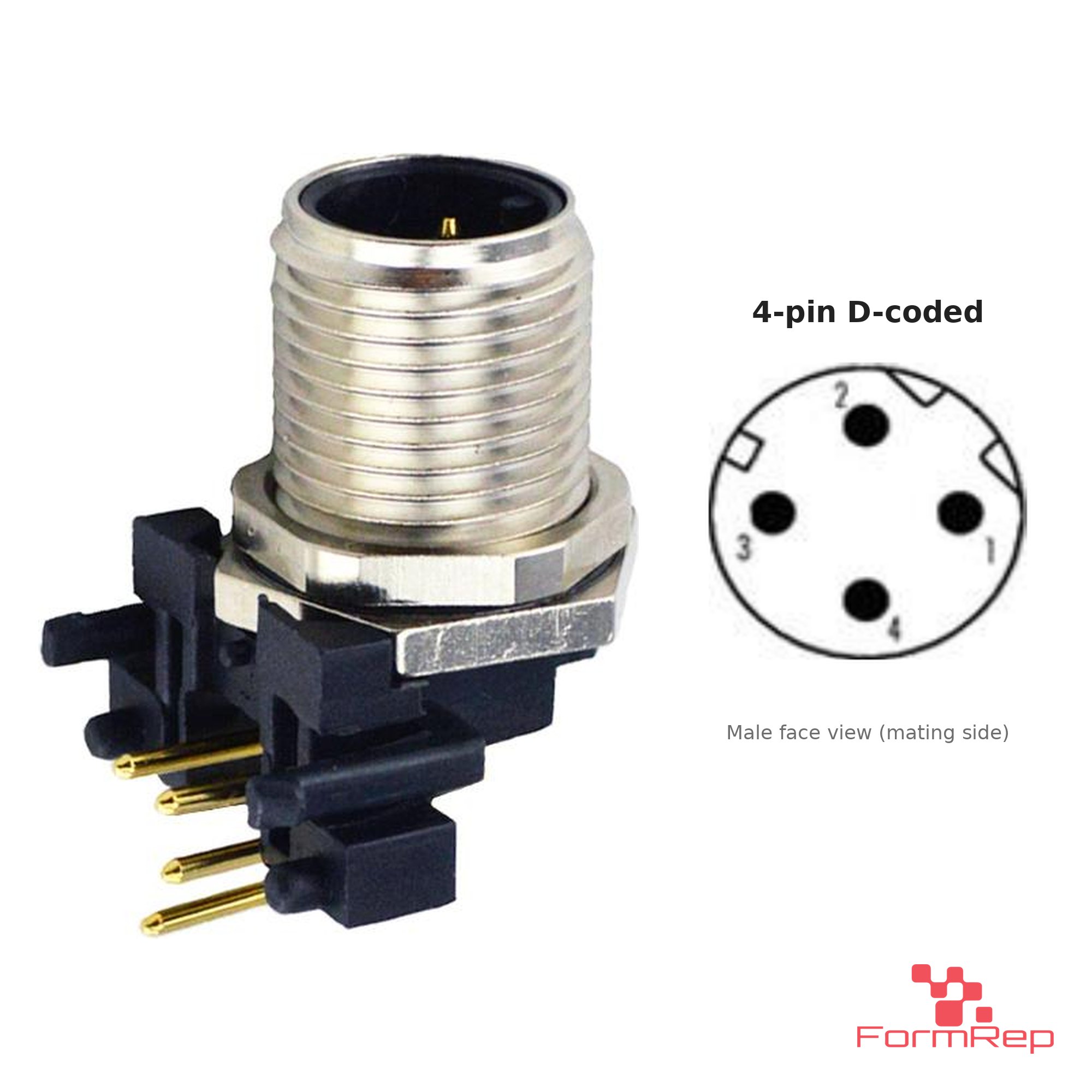

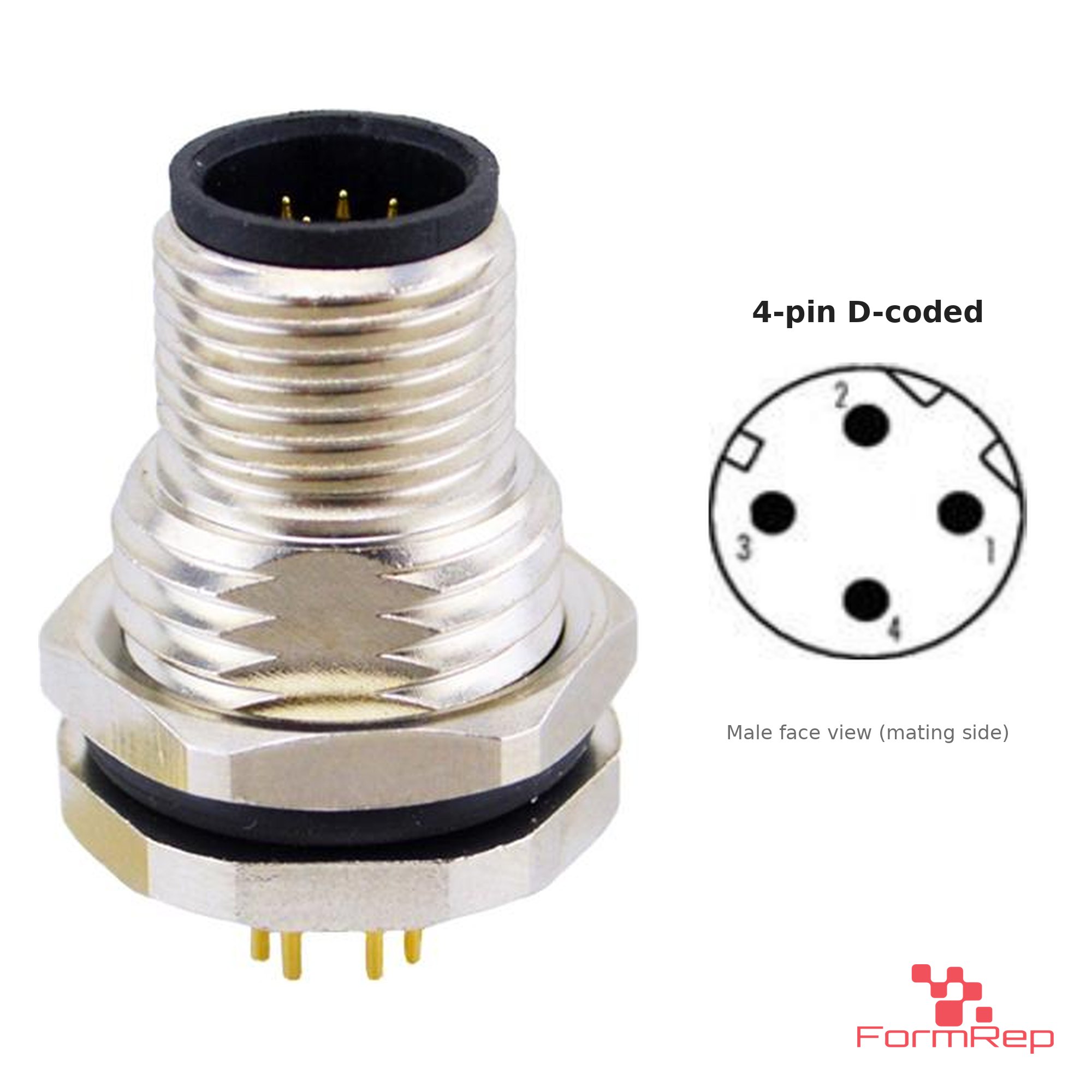

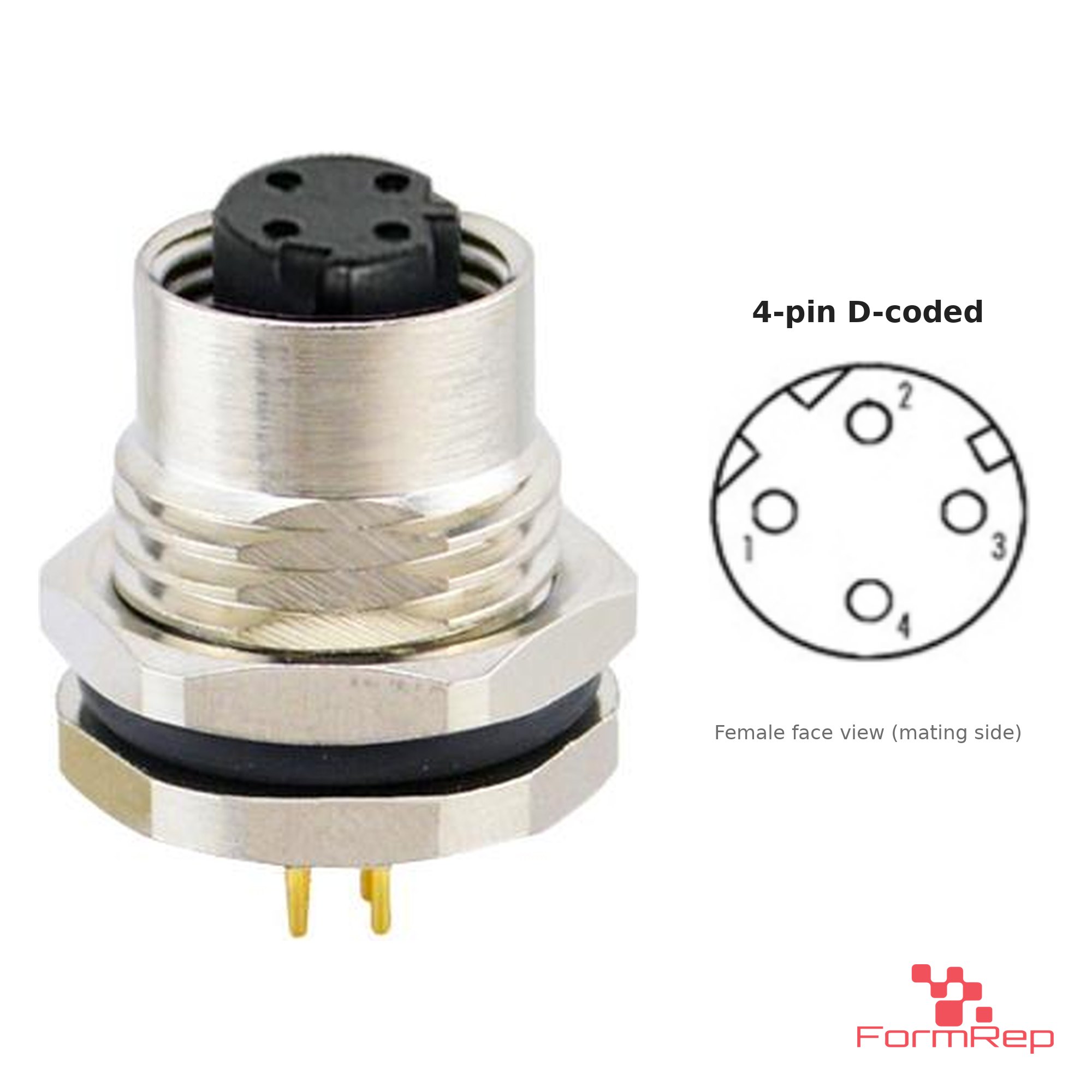

- Pins: 4 (D-coded; see the pin layout image)
- Ratings: 4-pin D-coded 250 V, 4 A (current rating at 40 °C)
- Termination: PCB pins (dip solder)
- Panel thread: straight: PG9 or M16 panel thread; right-angle: M12 × 1.0 front mount
- Materials: brass contacts, gold plated · brass nut and shell, nickel plated · TPU insert · FKM seal
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
M12D-4P-[M/F]-[ST/RA]-[FR/RR]-PCB-[PG9/M16/M12]. Example: M12D-4P-M-ST-FR-PCB-PG9 = 4-pin D-coded male straight, front mount receptacle, PCB pins, PG9 thread.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; pins and coding follow your selection.
Need a molded M12 D-coded cable instead, or a different thread or lead length? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
