Description
M12 × 1.0 T-coded panel-mount receptacle with solder cups, for bringing DC power connections through an enclosure wall. Choose your options; the configuration code updates as you pick.
Specifications
- Connector: M12 × 1.0, T-coded, male or female, per IEC 61076-2-101
- Mounting: straight front or rear mount
- Pins: 4 (T-coded; see the pin layout image)
- Ratings: 12 A per contact; voltage rating confirmed at quote (current rating at 40 °C)
- Termination: solder cups
- Panel thread: straight: PG9 or M16 panel thread
- Materials: brass contacts, gold plated · brass nut and shell, nickel plated · TPU insert · FKM seal
- Operating temperature: −40 to +85 °C
- Compliance: RoHS, REACH
Configuration code

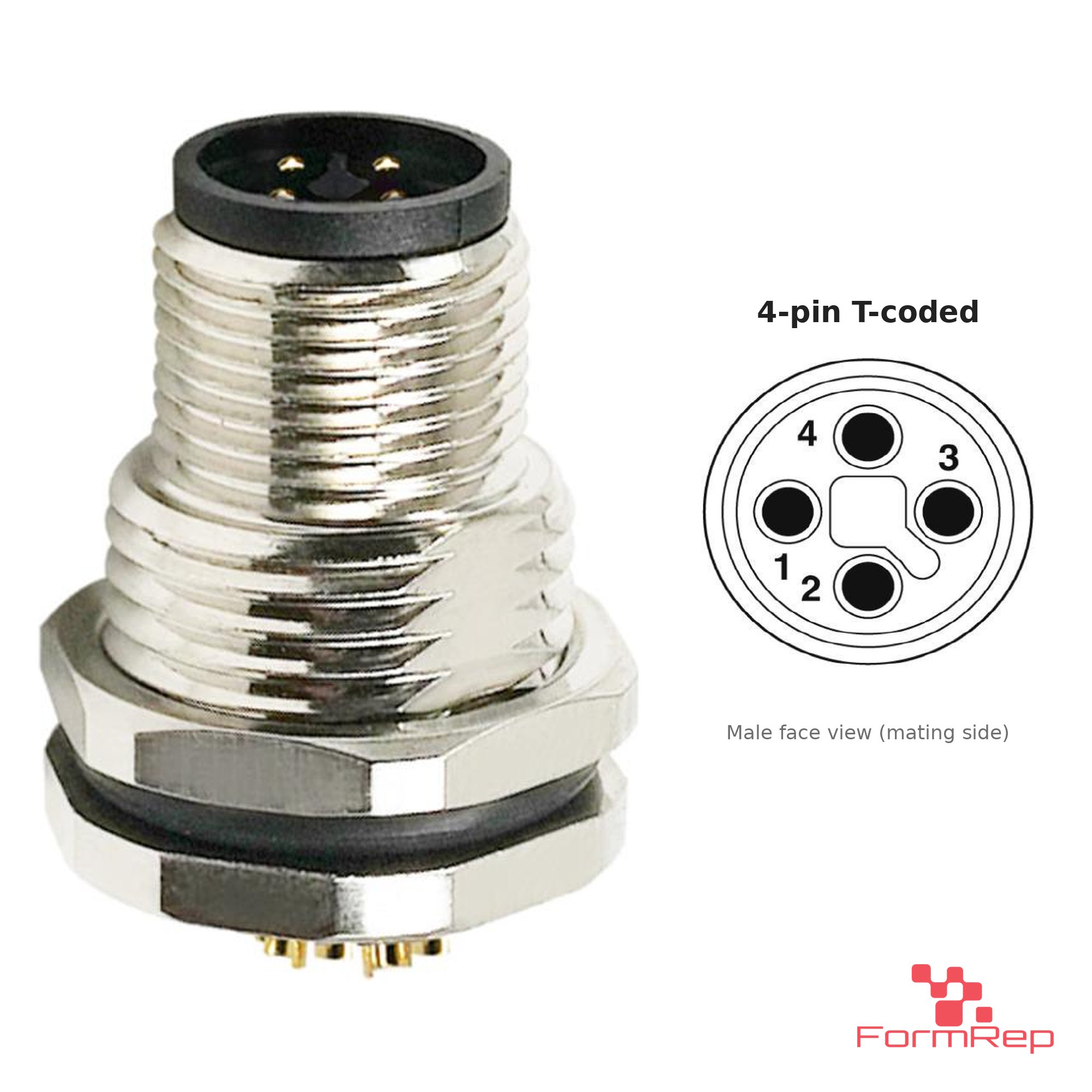

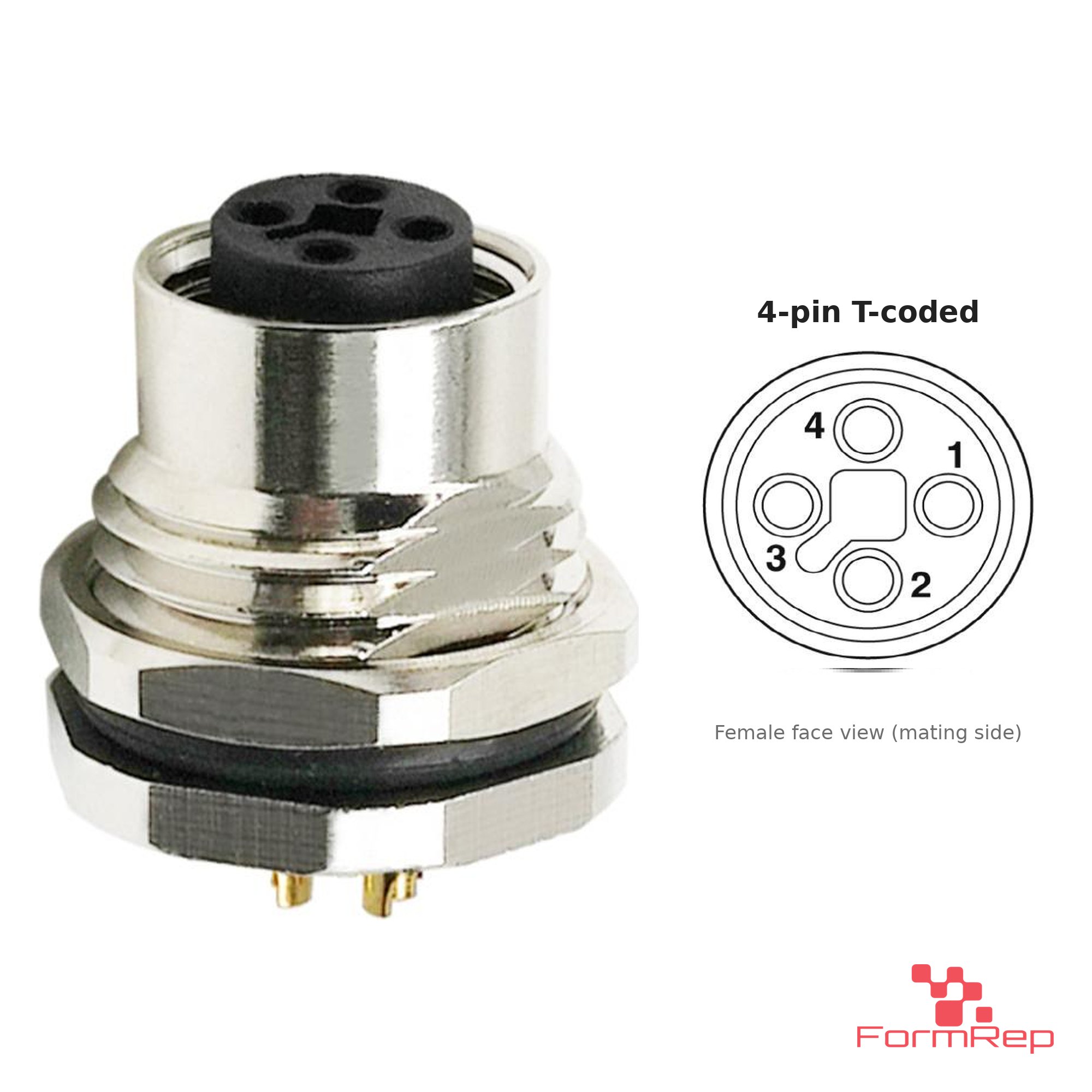

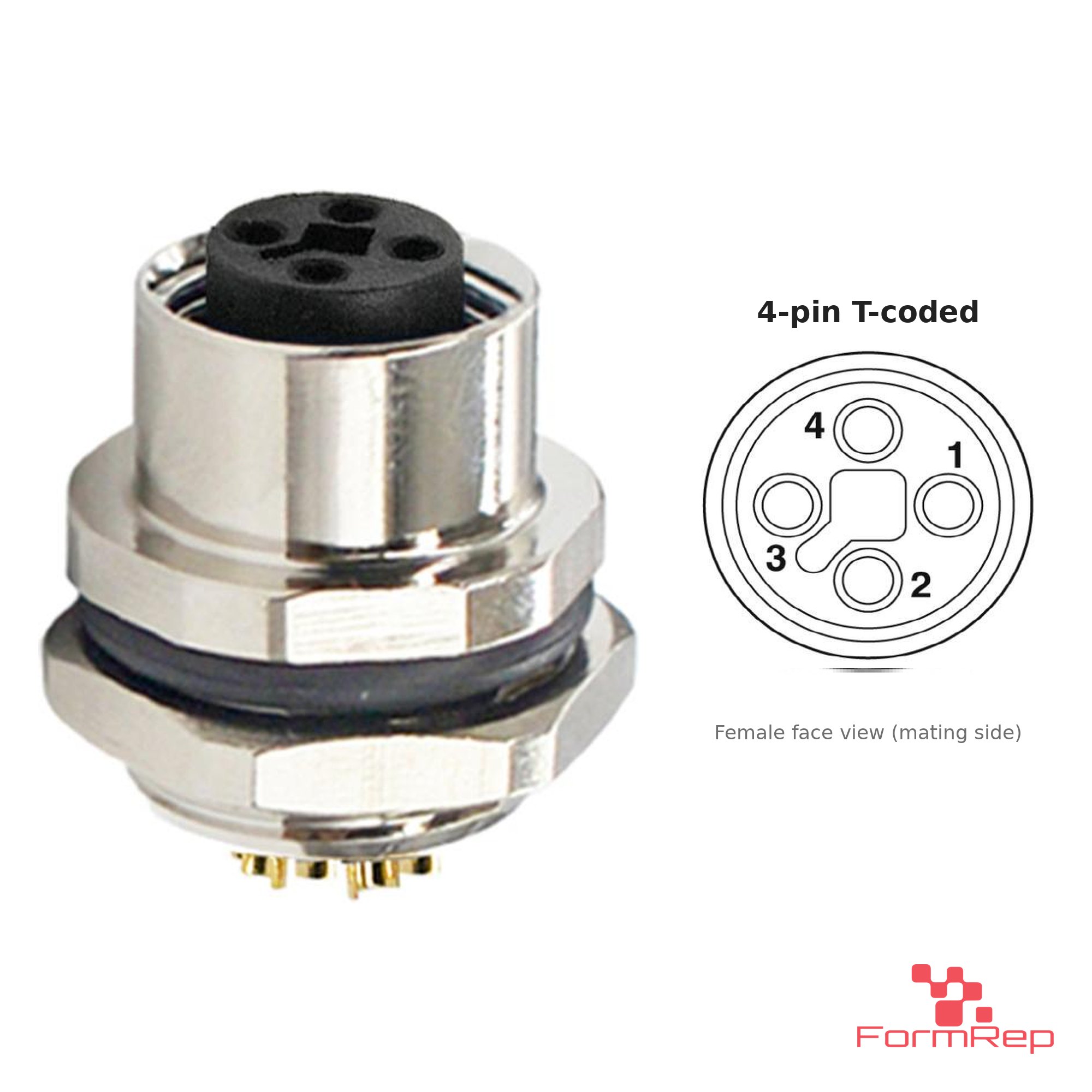

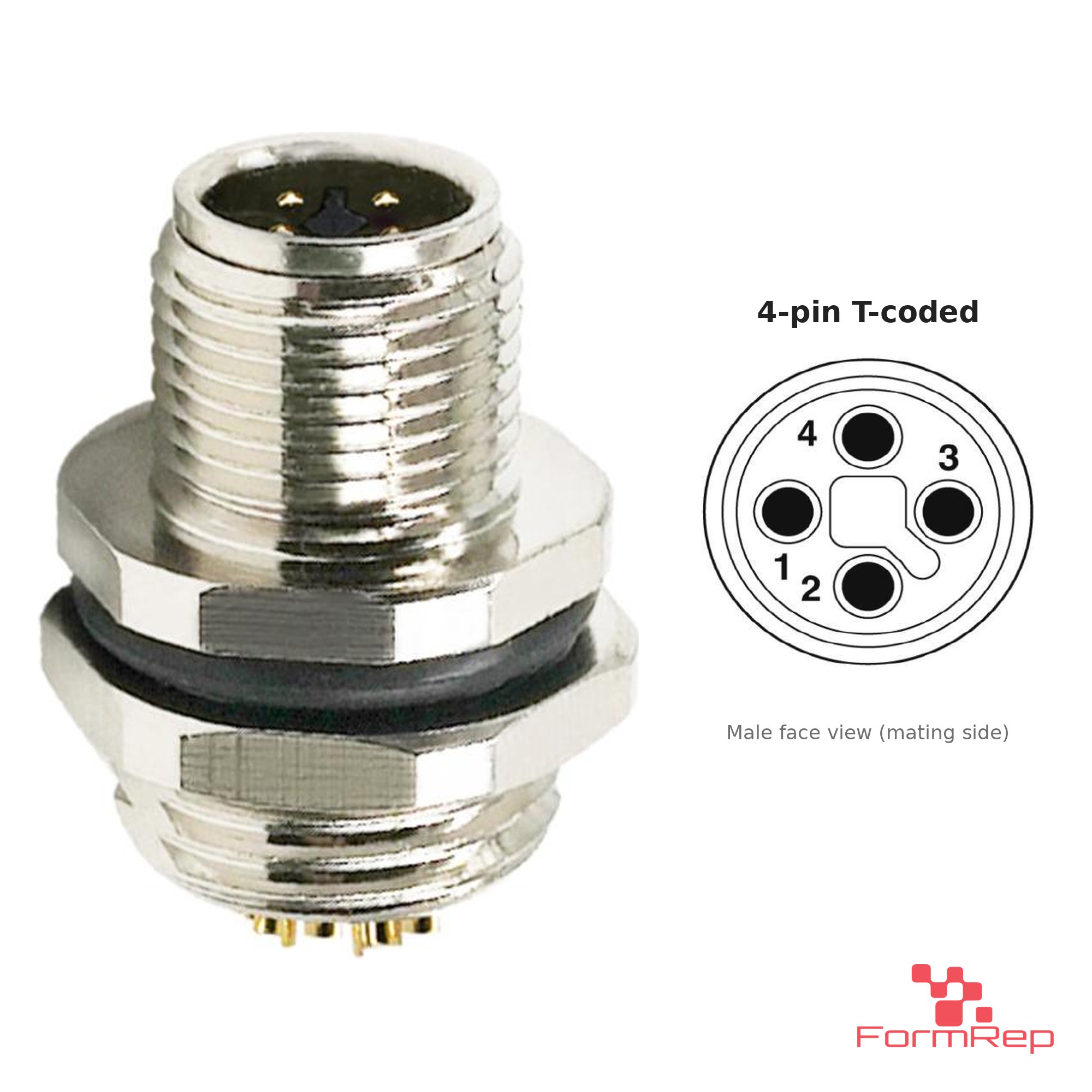

M12T-4P-[M/F]-ST-[FR/RR]-SC-[PG9/M16]. Example: M12T-4P-M-ST-FR-SC-PG9 = 4-pin T-coded male straight, front mount receptacle, solder cups, PG9 thread.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; pins and coding follow your selection.
Need a molded M12 T-coded cable instead, or a different thread or lead length? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
