Description

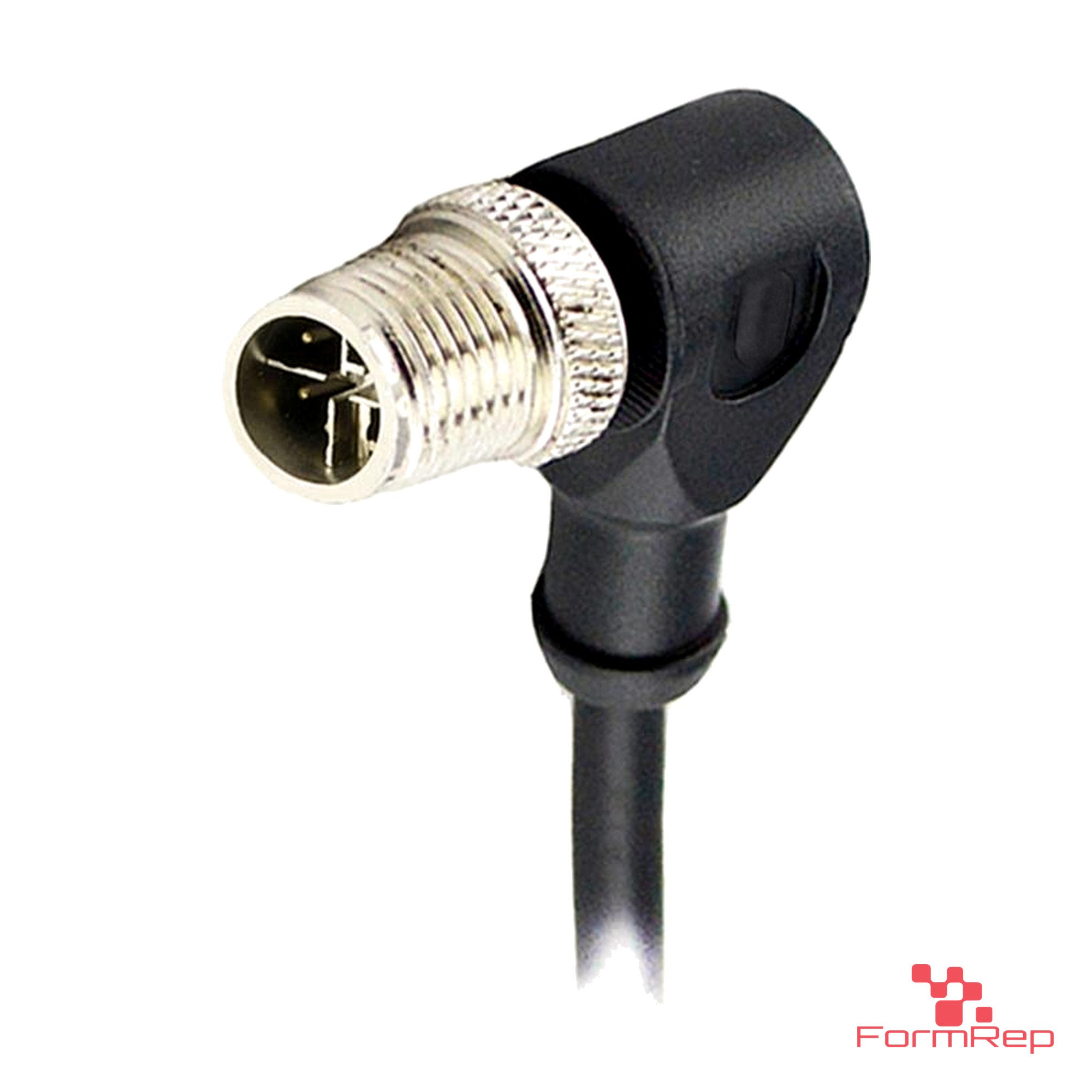

Overmolded M12 X-coded 8-pin cable for industrial Ethernet, with a male right-angle connector on one end and open conductors on the other for wiring into a switch, controller or terminal. Choose the jacket and length; the configuration code updates as you pick.
Specifications
- Connector: M12 × 1.0, X-coded, male right-angle, per IEC 61076-2-101
- Free end: open conductors

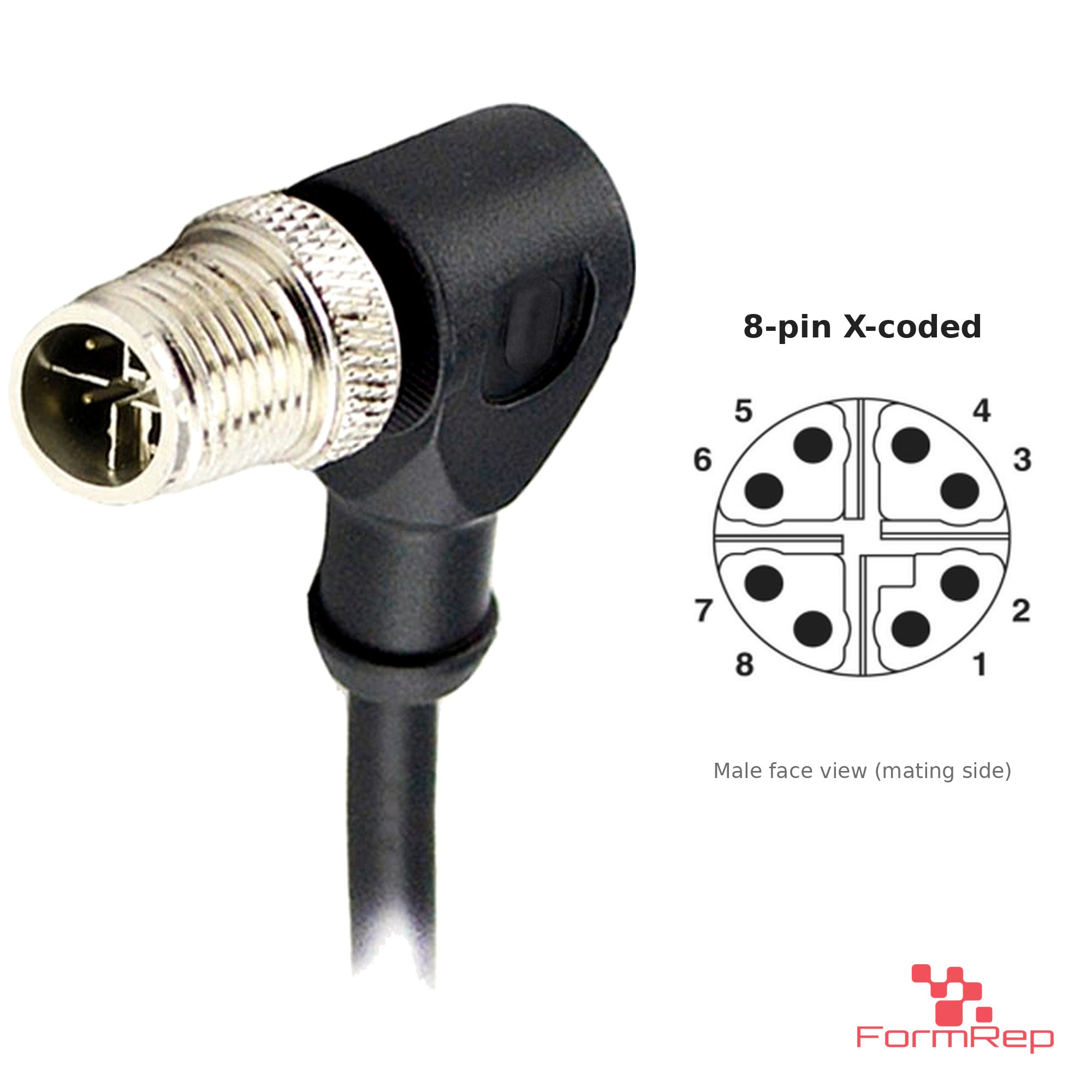

- Pins: 8 (see the pin layout image)
- Rating: 60 V, 0.5 A (current rating at 40 °C)
- Wire gauge: 0.14 mm² (26 AWG)
- Cable: PUR or PVC jacket, black, shielded, rated −40 to +105 °C
- Lengths: 1 m, 2 m, 5 m or 10 m
- Materials: brass contacts, gold plated · brass coupling, nickel plated · TPU body and overmold
- Insulation resistance: ≥ 100 MΩ · Contact resistance: ≤ 5 mΩ · Mating cycles: more than 100
- Compliance: RoHS, REACH
Configuration code
M12X-8P-M-RA-[PUR or PVC]-S-[length]M. Example: M12X-8P-M-RA-PUR-S-2M is a PUR, shielded, 2 m cable.
Ordering
Built to order and priced by quote; standard configurations ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; jacket and length follow your selection.
Need a different length, an RJ45 on one end or a different connector? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
