Description
M5 panel-mount receptacle with PCB pins, for bringing compact sensor connections through a panel onto a circuit board. Choose your options; the configuration code updates as you pick.
Specifications
- Connector: M5 × 0.5 screw lock, male or female

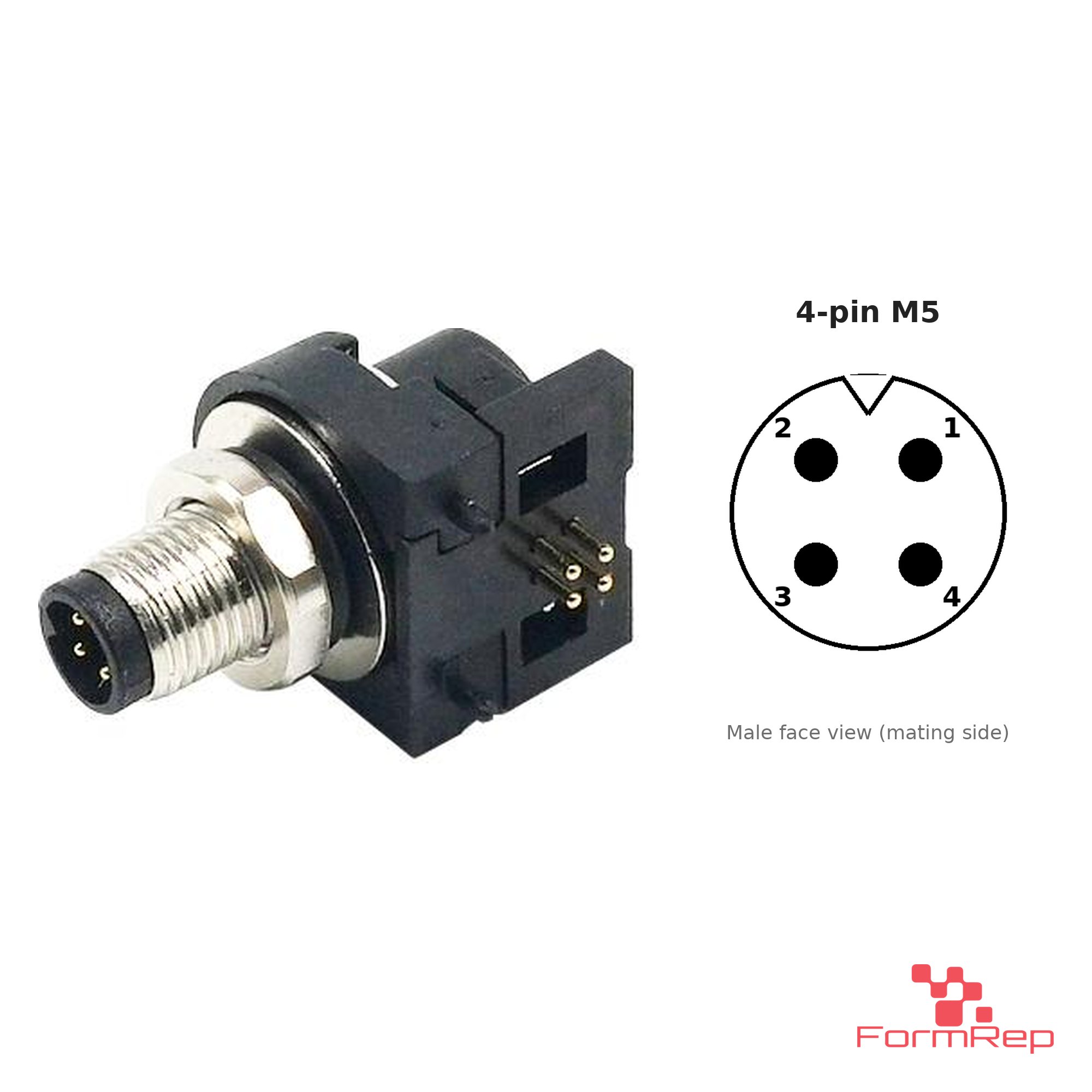

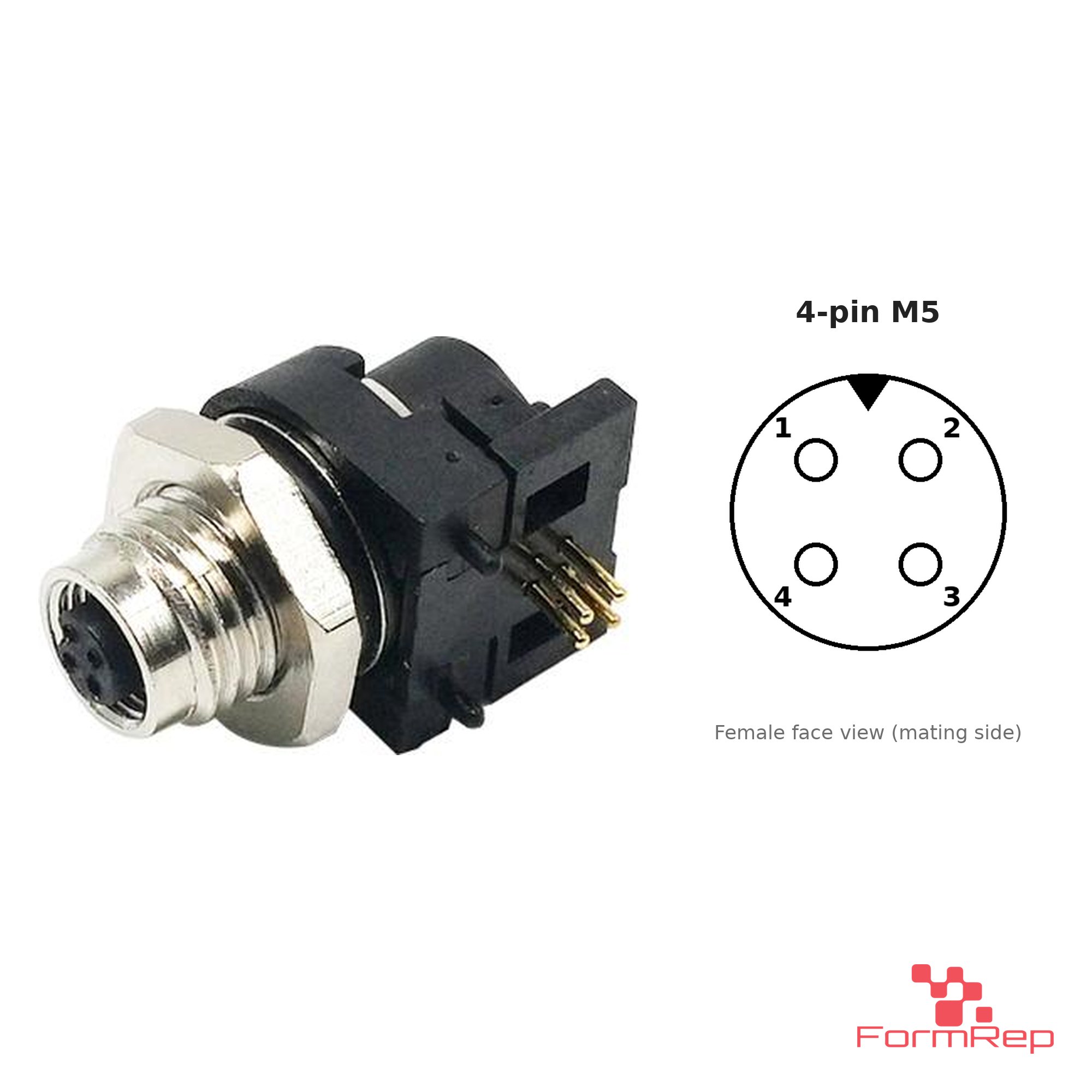

- Mounting: straight front or rear mount, or right-angle front mount (4 pin)

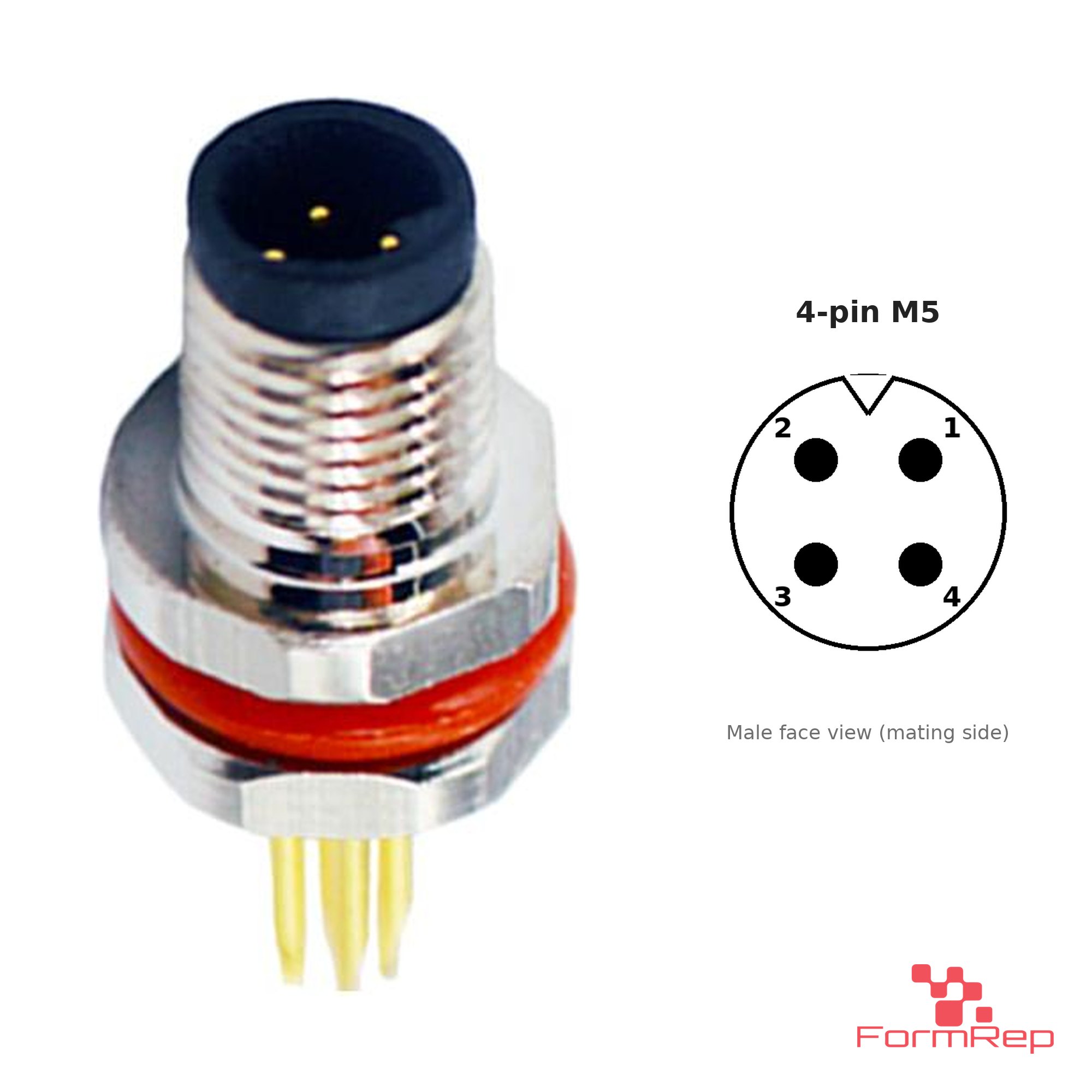

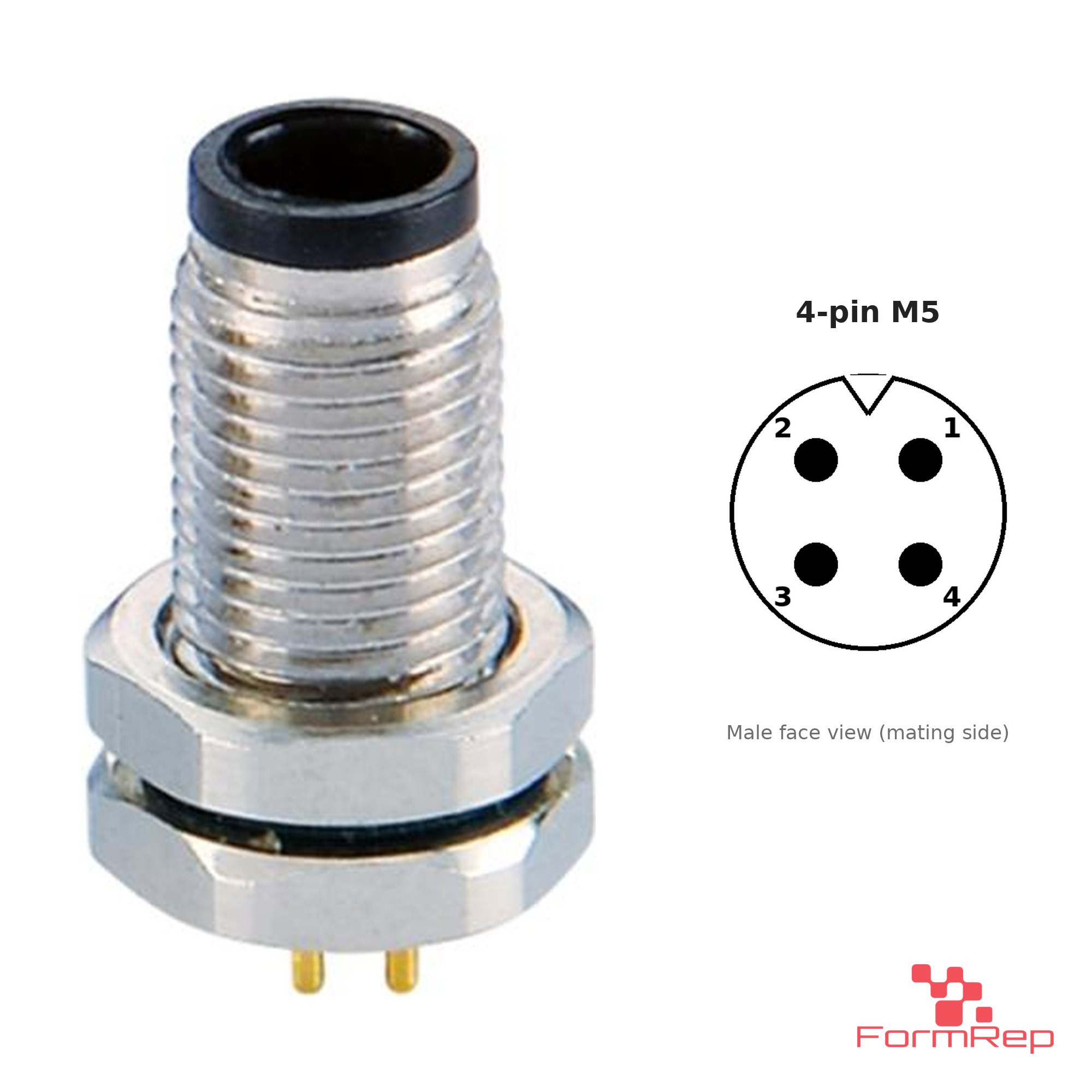

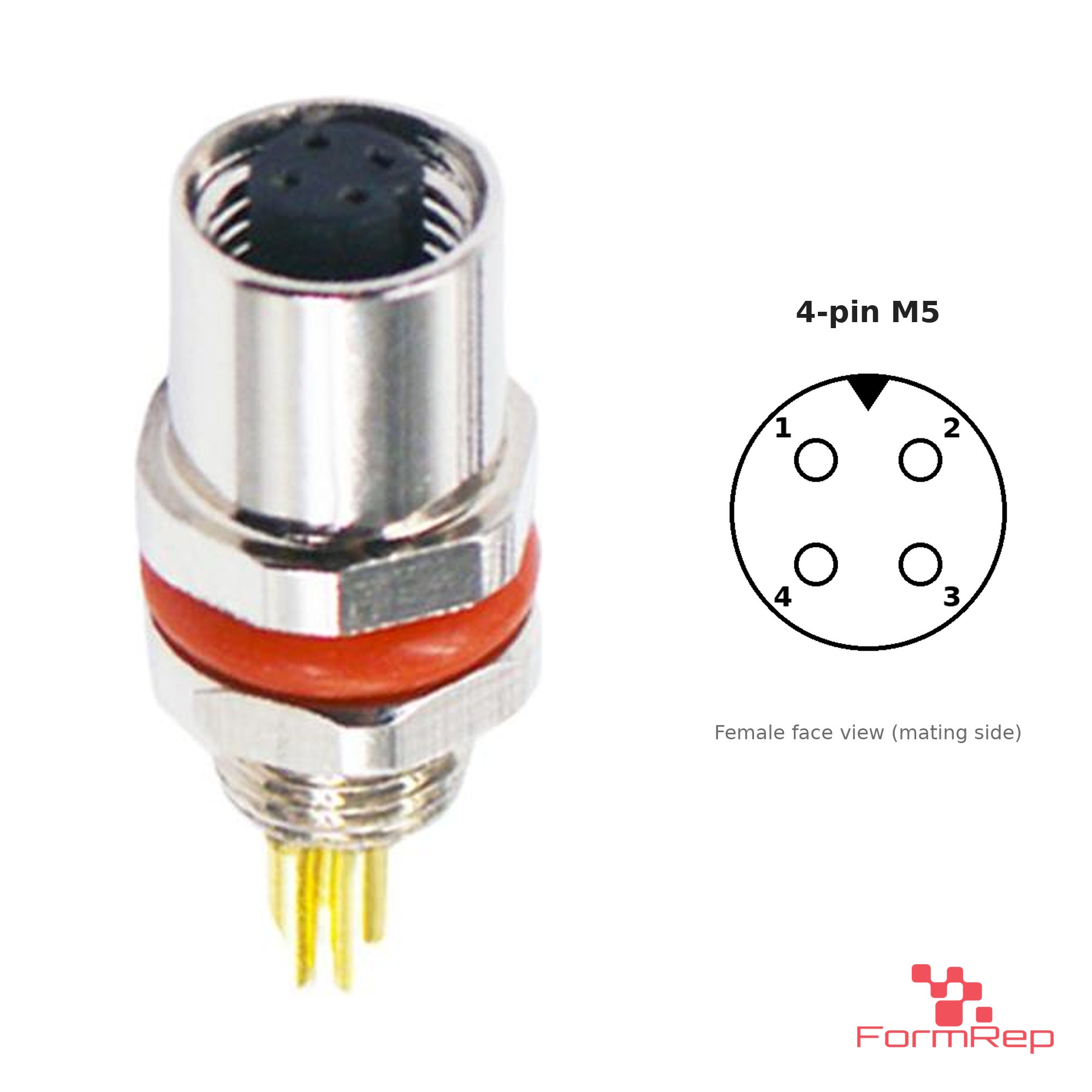

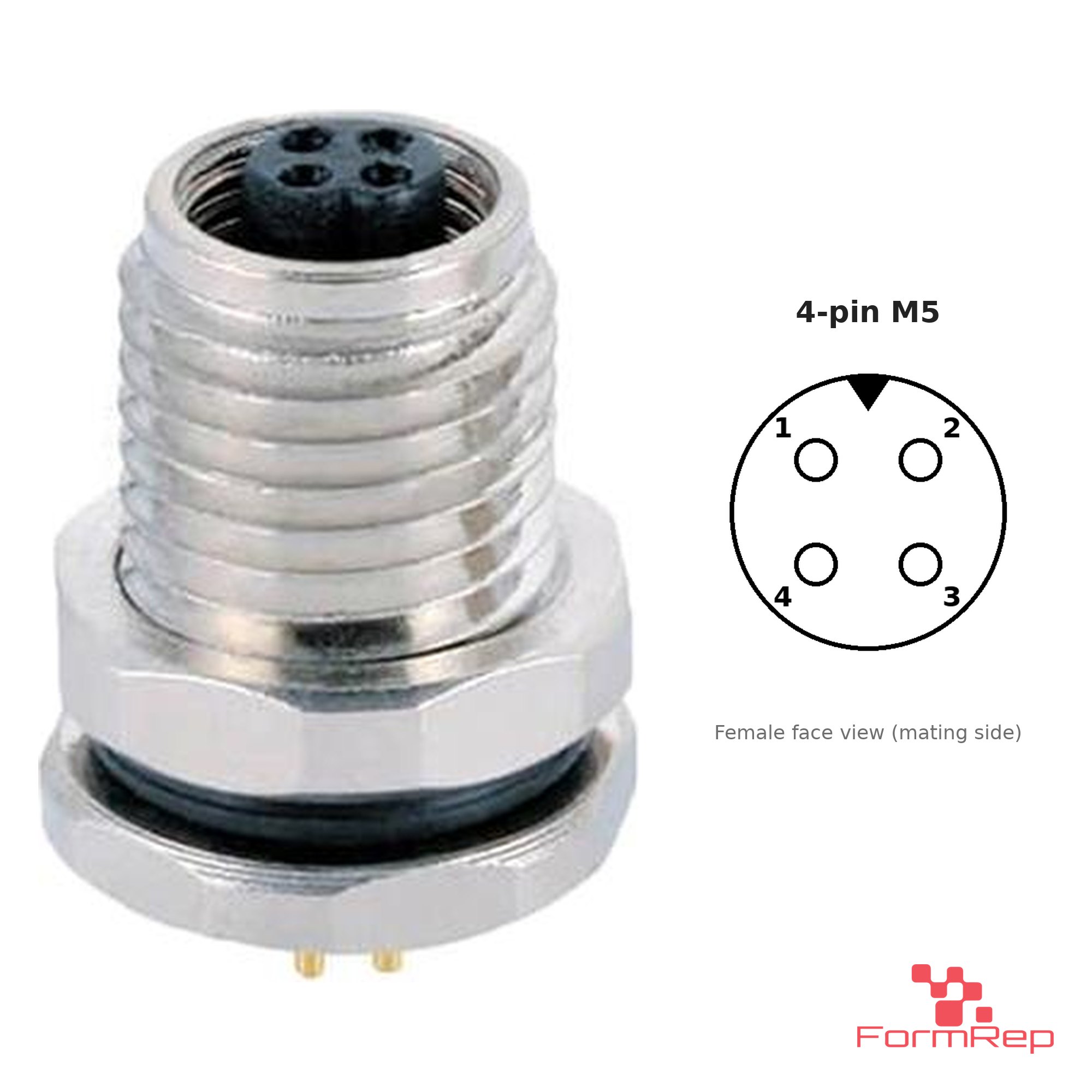

- Pins: 3 or 4 (see the pin layout image)
- Rating: 60 V, 1 A (current rating at 40 °C)
- Termination: PCB pins
- Panel thread: male front and all rear-mount versions M5 × 0.5; female front M7 × 0.75
- Materials: brass contacts, gold plated · brass nut and shell, nickel plated · TPU insert
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
M5-[3P/4P]-[M/F]-[ST/RA]-[FR/RR]-PCB. Example: M5-4P-F-ST-FR-PCB = 4-pin M5 female straight receptacle, front mount, PCB pins.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; pins and style follow your selection.
Need a molded M5 cable instead, or a different lead length? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
