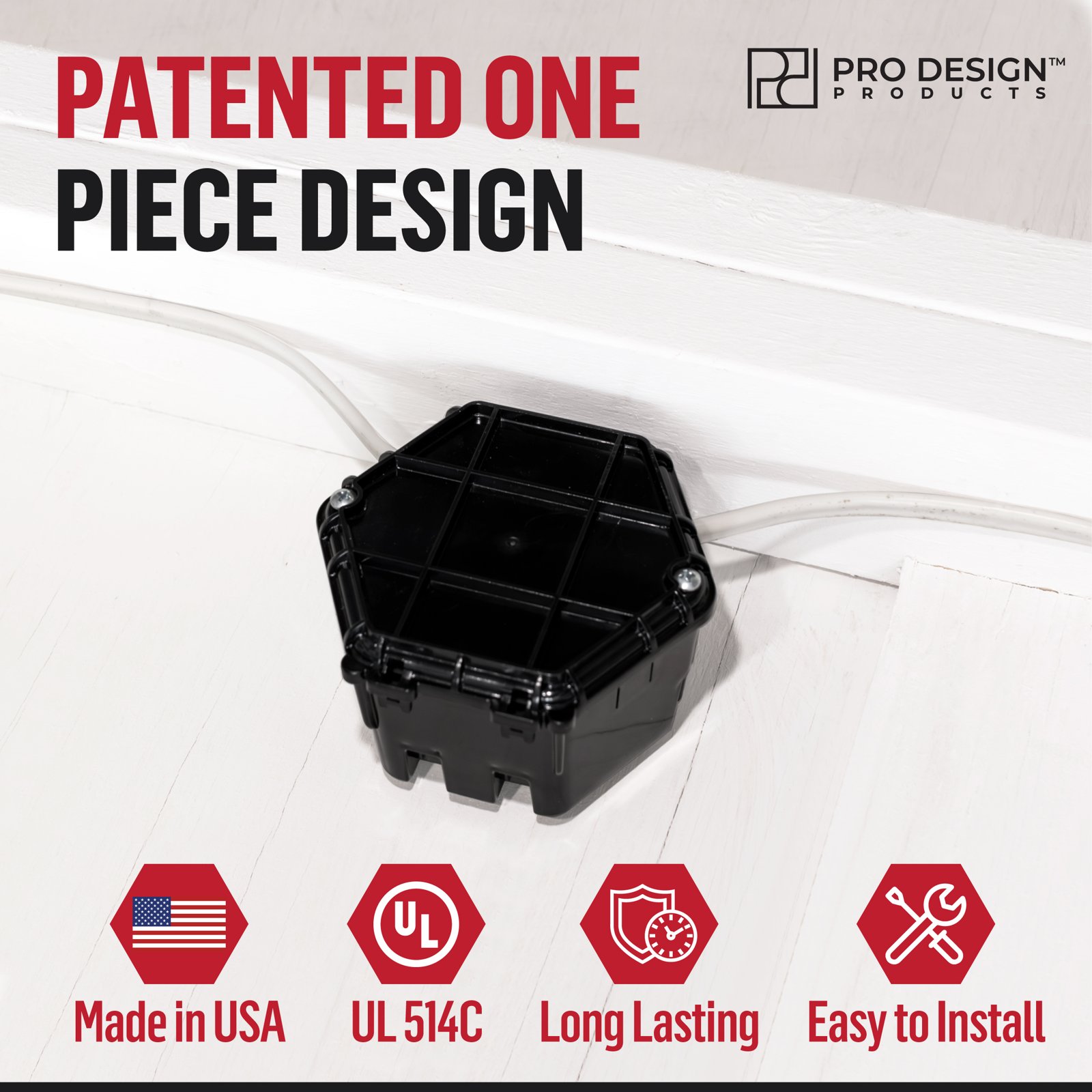

Open Splice Junction Box, black one-piece hinged enclosure

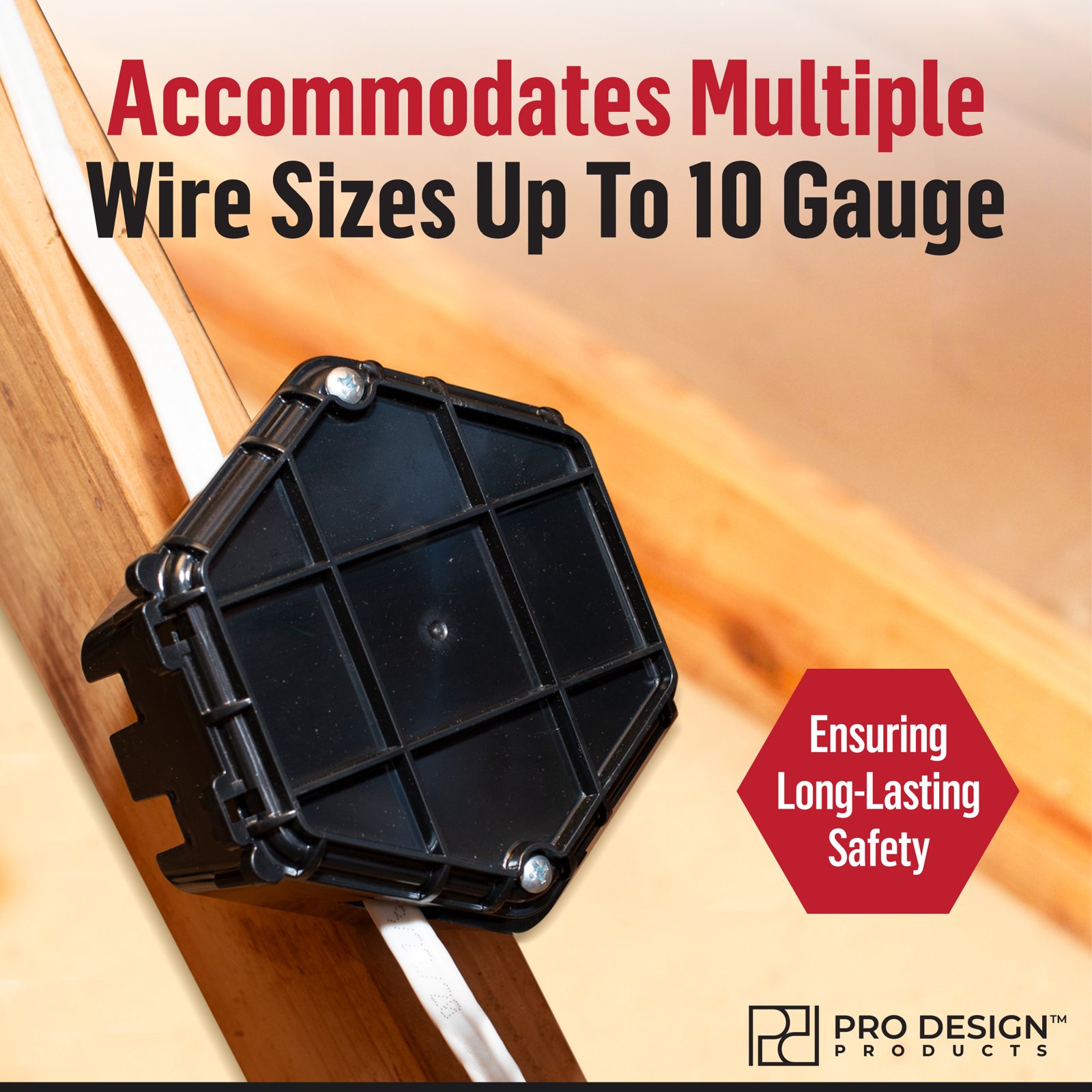

Open Splice Junction Box holds wire sizes up to 10 gauge

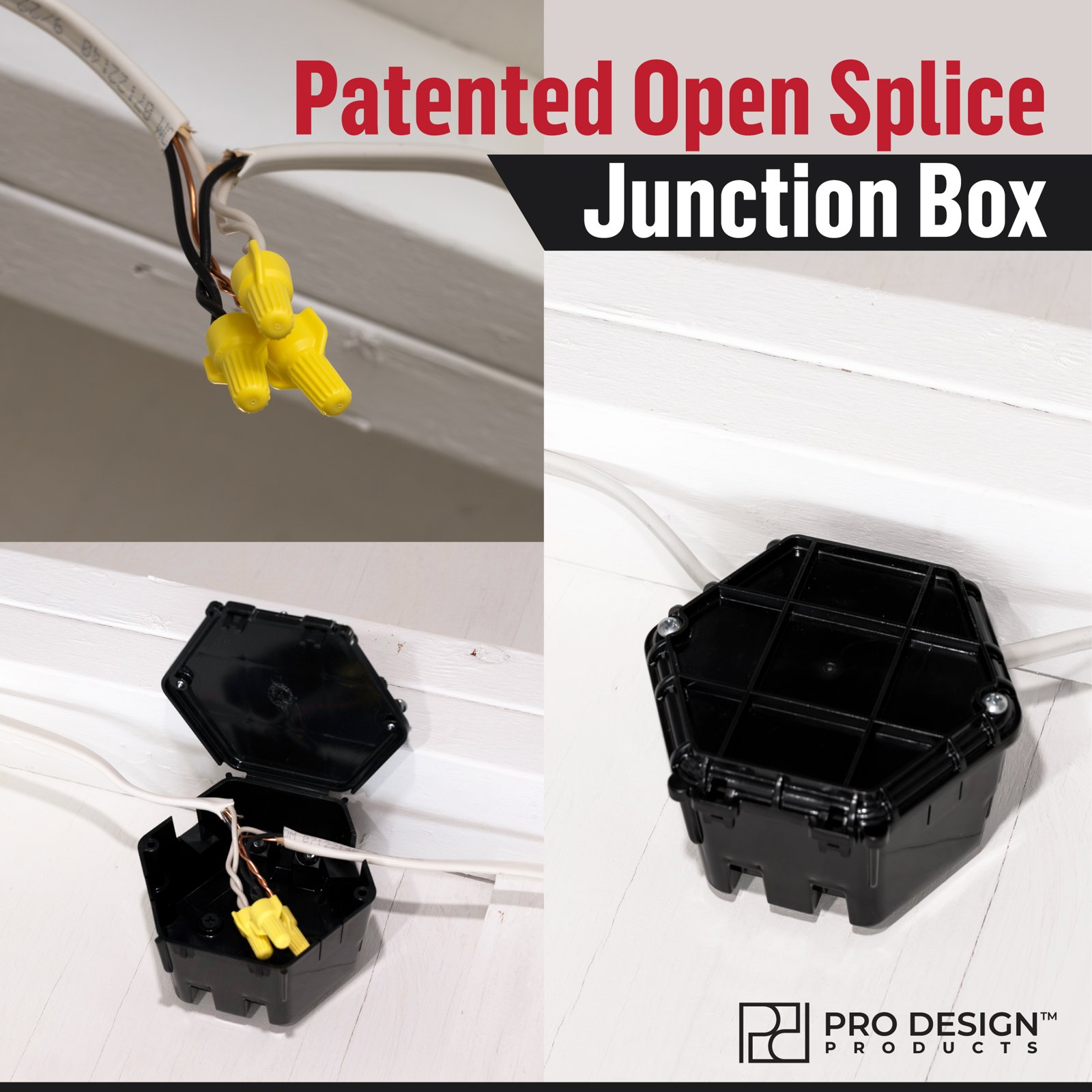

Patented one-piece Open Splice Junction Box

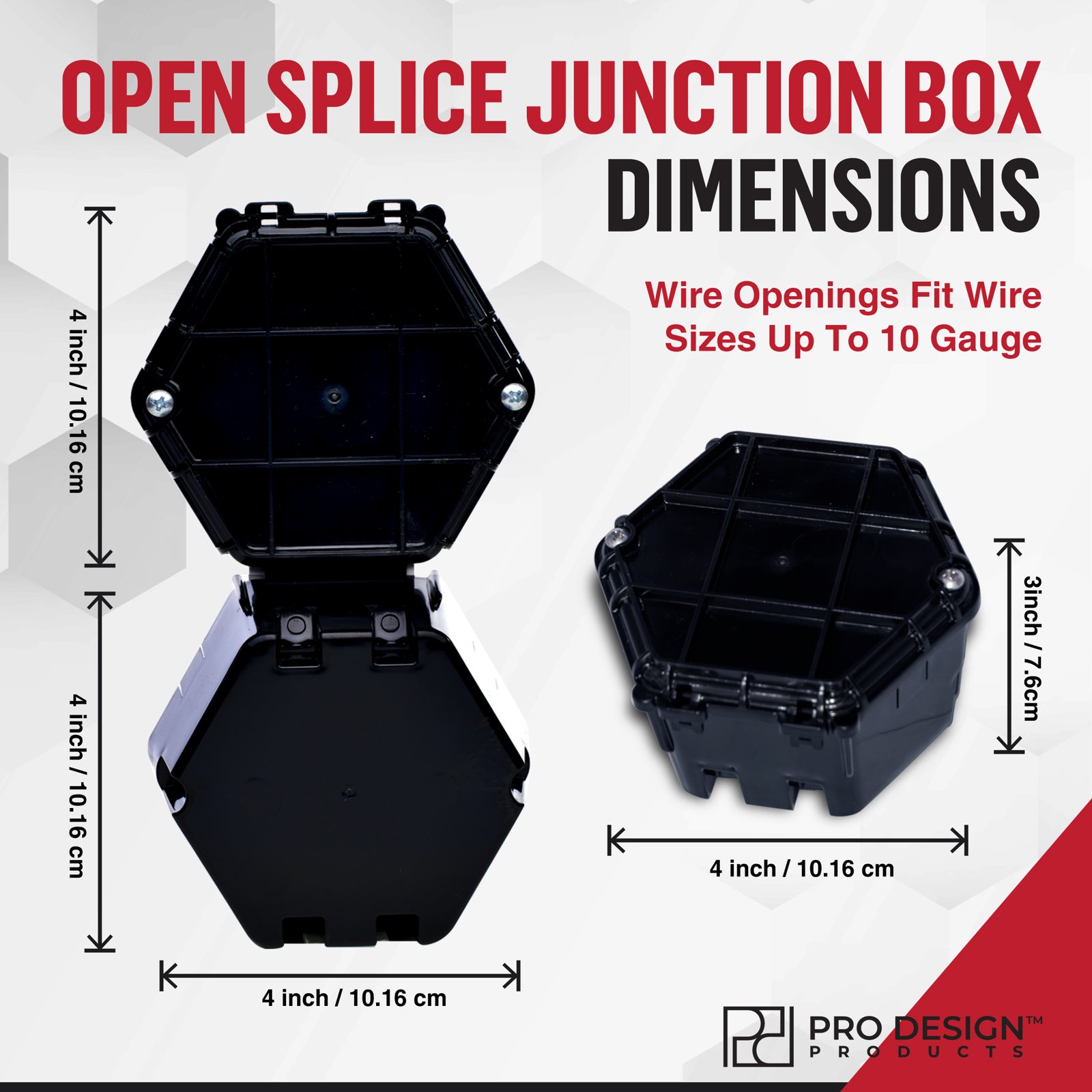

Open Splice Junction Box dimensions 4 x 4 x 3 in

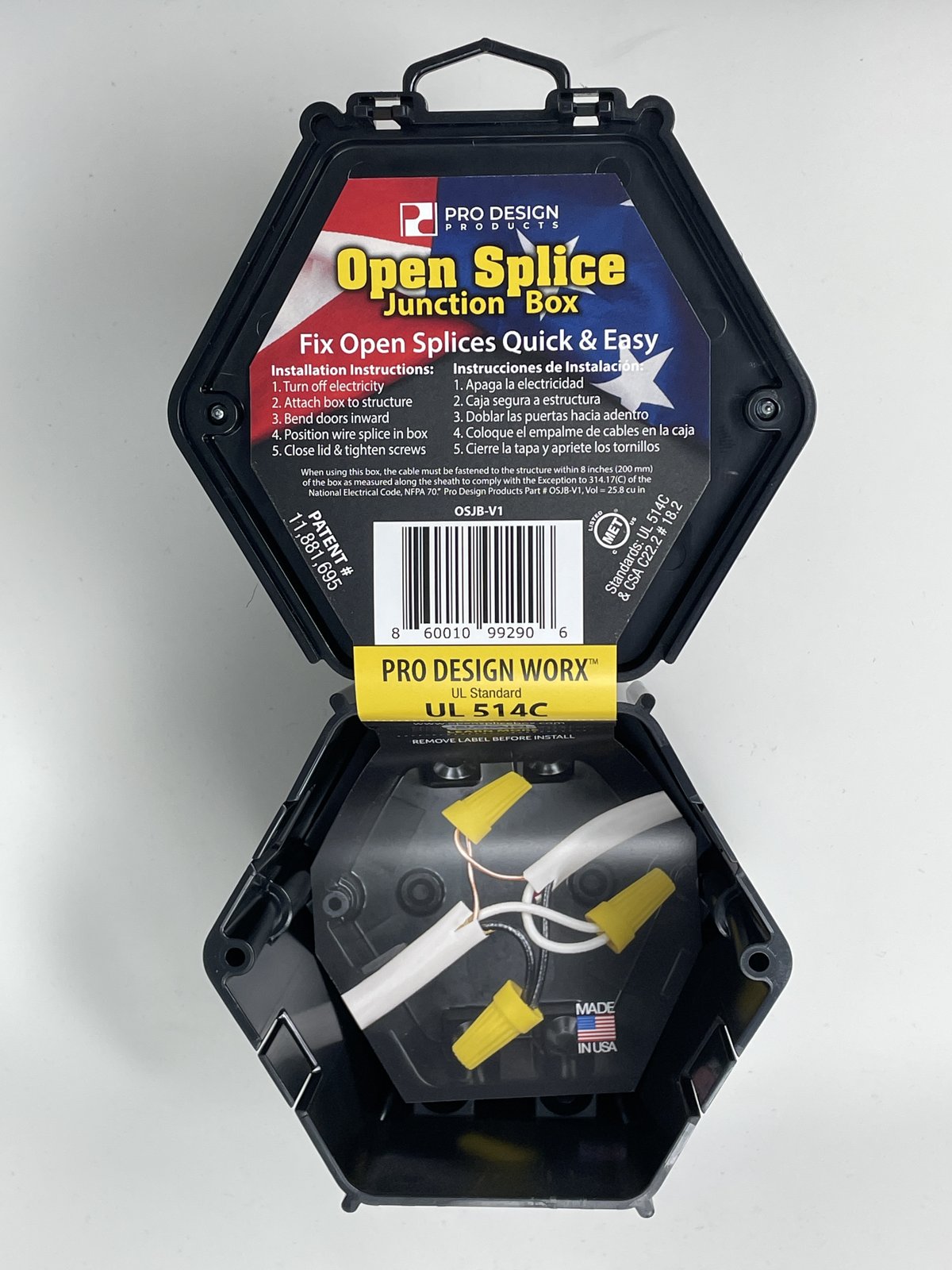

Open Splice Junction Box in retail packaging

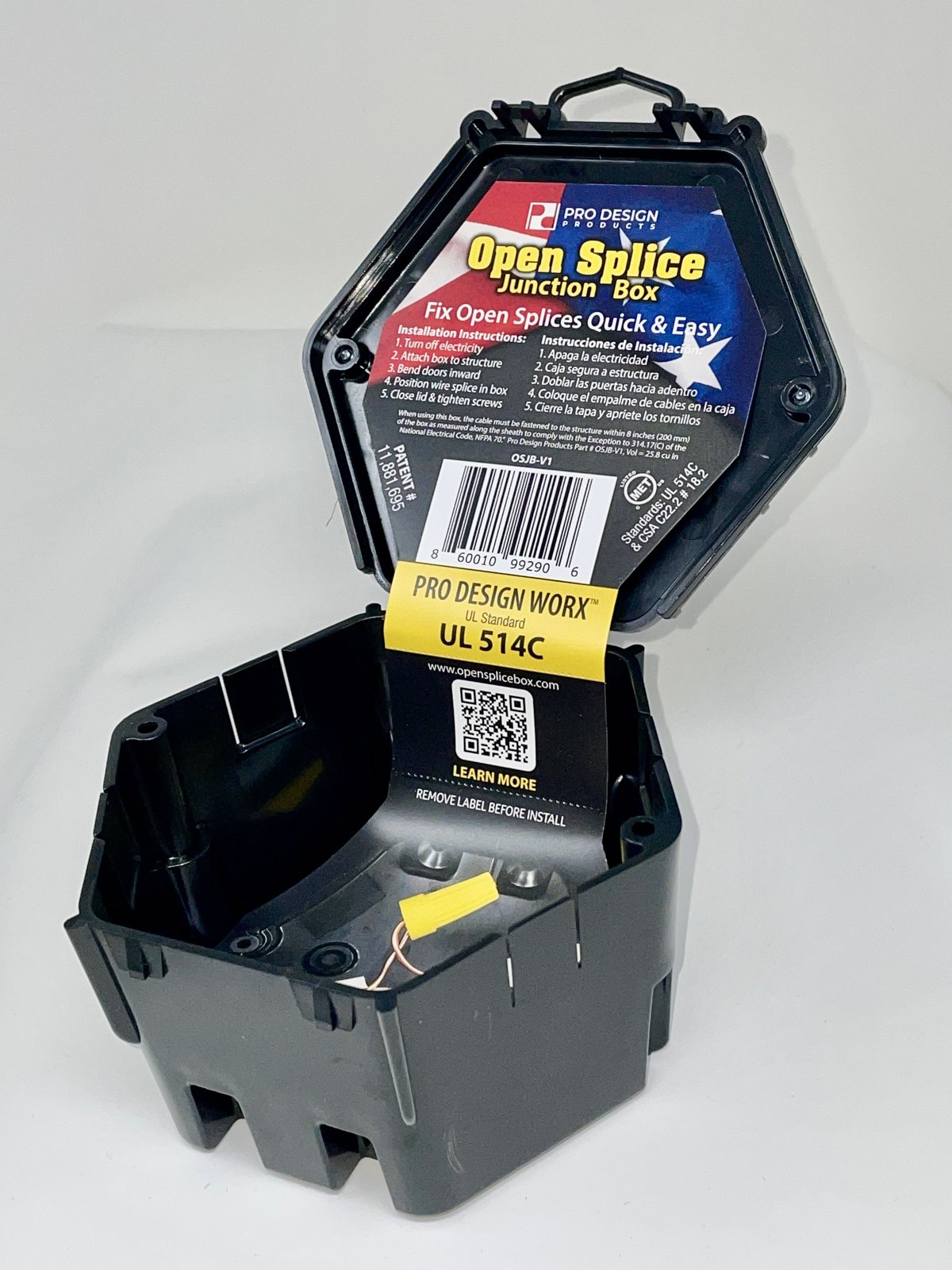

Open Splice Junction Box open with wire splices inside
Exposed wire splice before installing a junction box

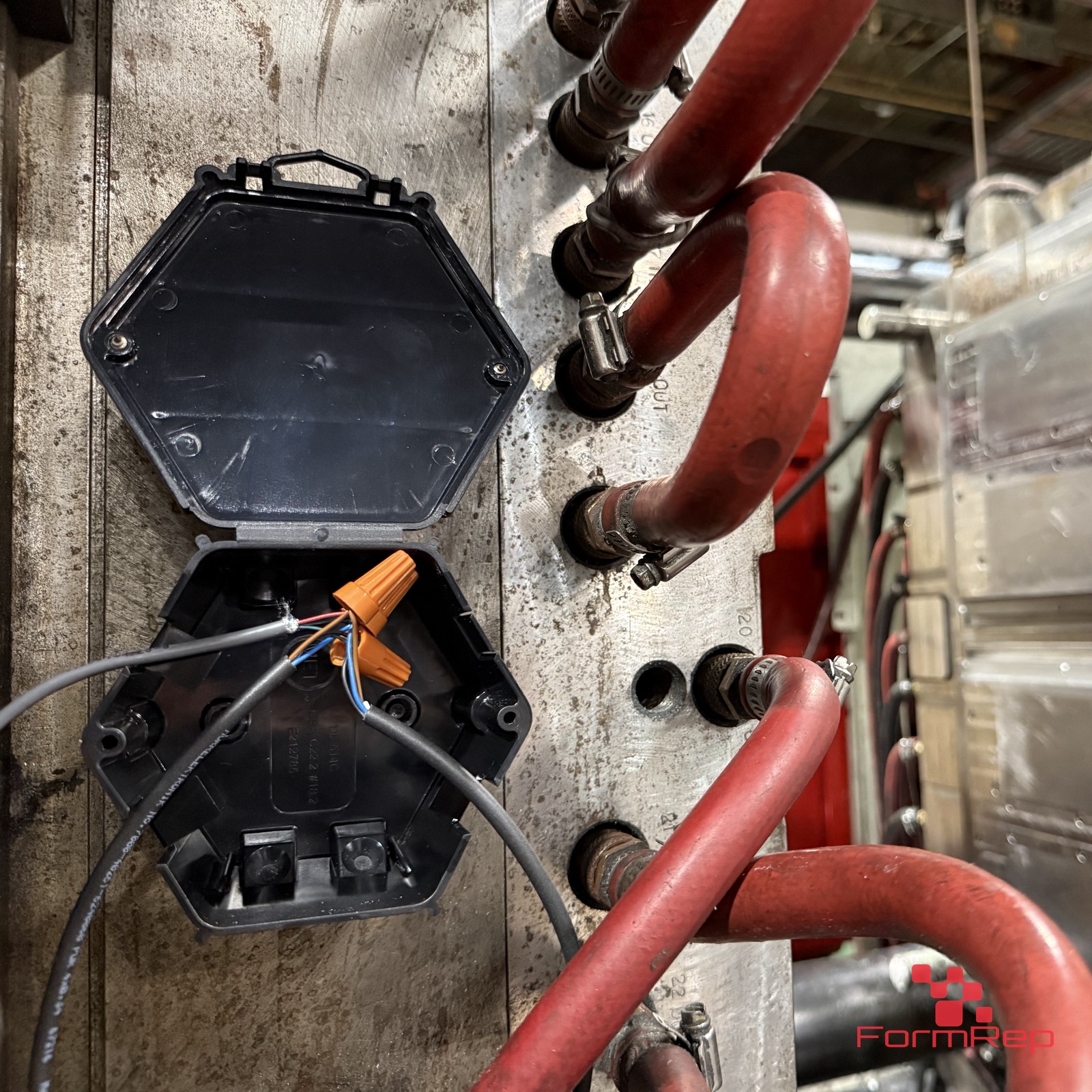

Open Splice Junction Box open on an injection mold, showing a wire splice inside

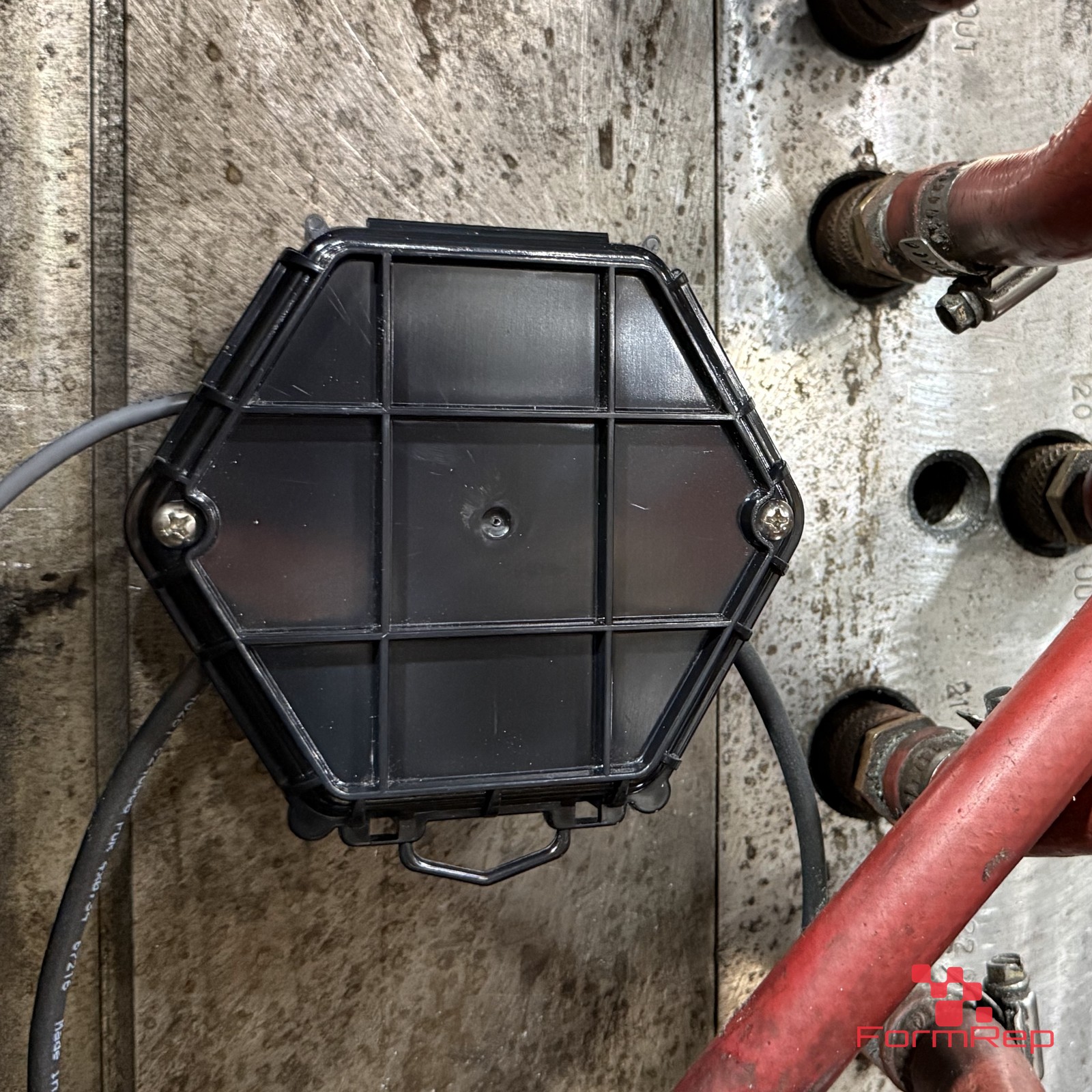

Open Splice Junction Box closed and mounted on an injection mold

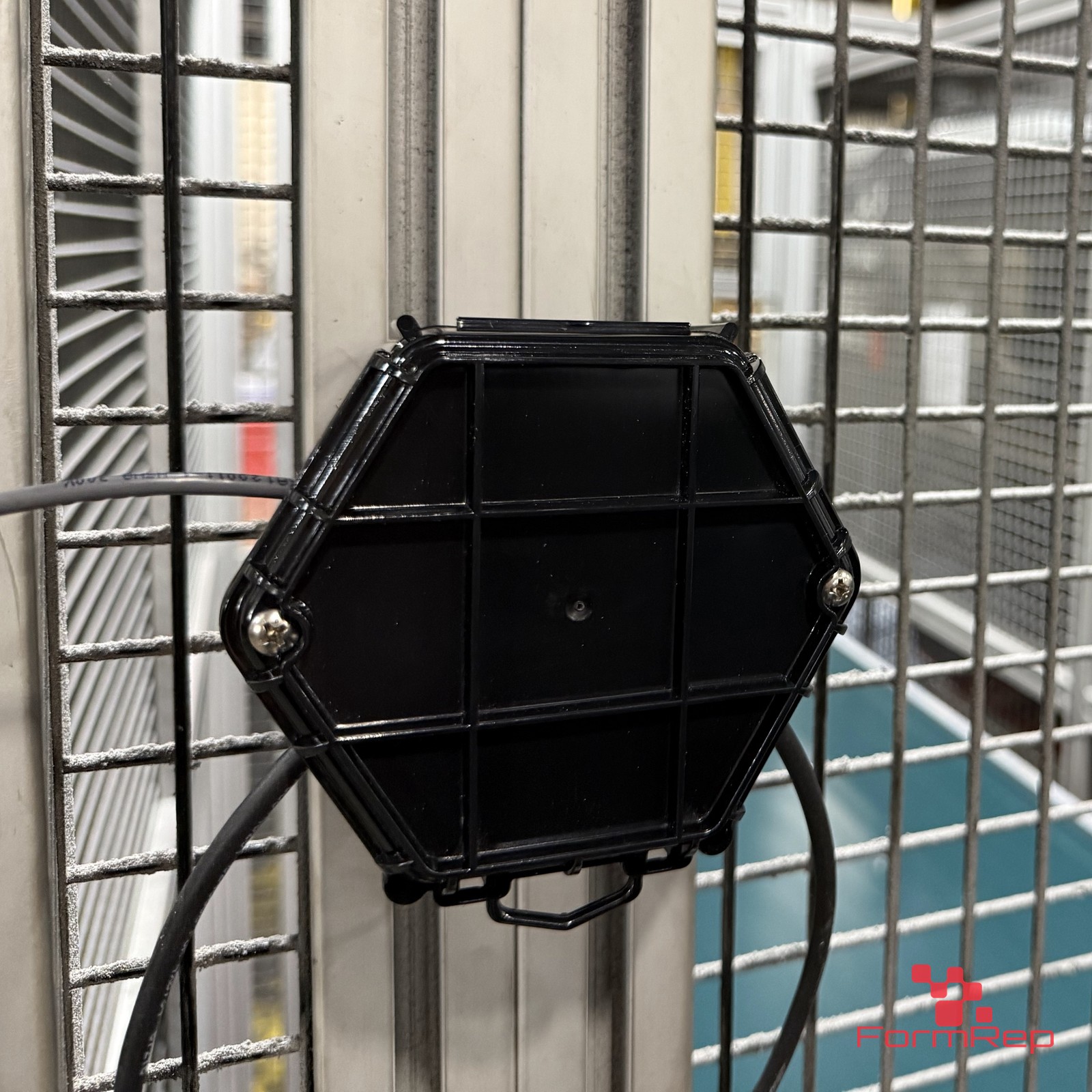

Open Splice Junction Box mounted on a machine guard fence

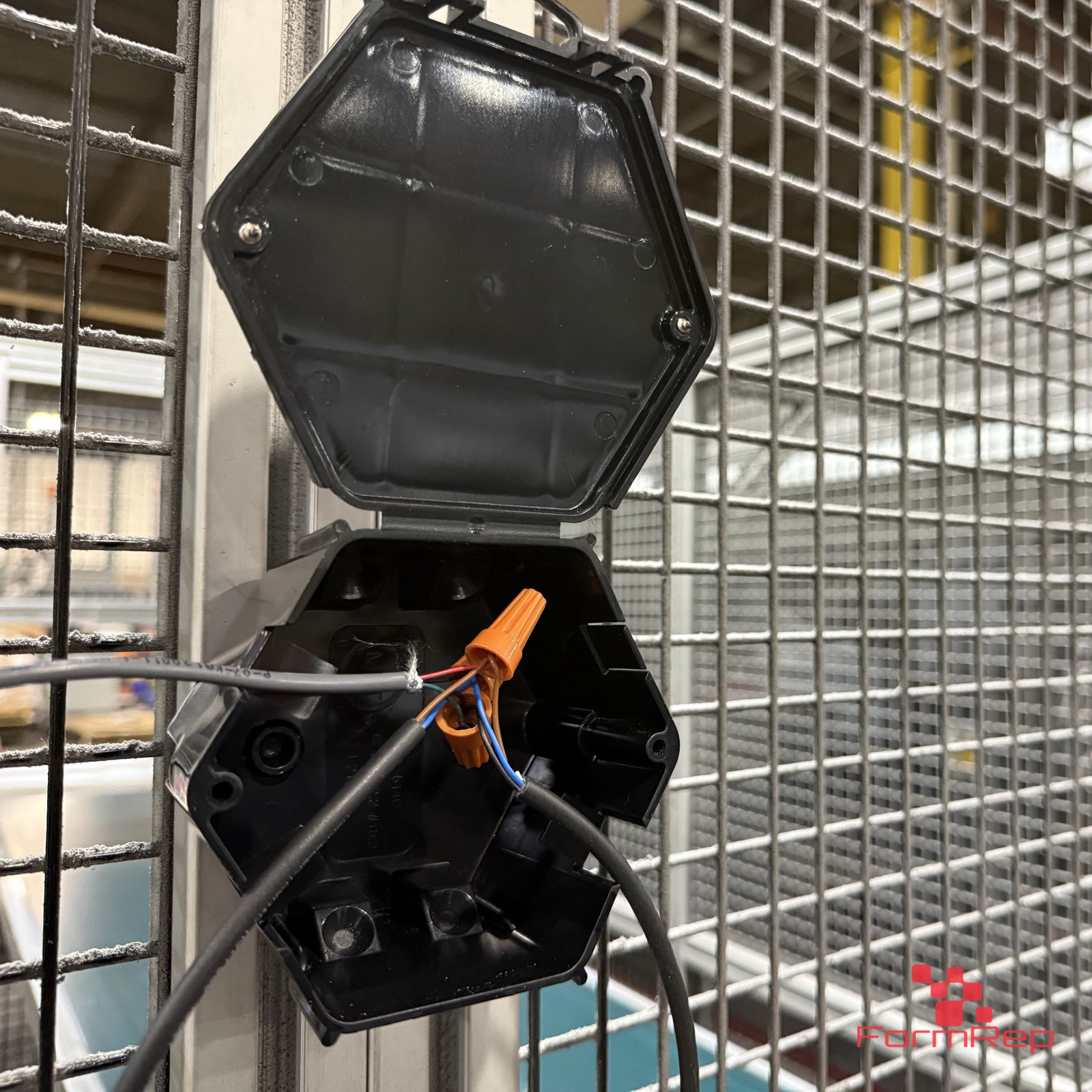

Open Splice Junction Box open on a guard fence, showing the splice inside

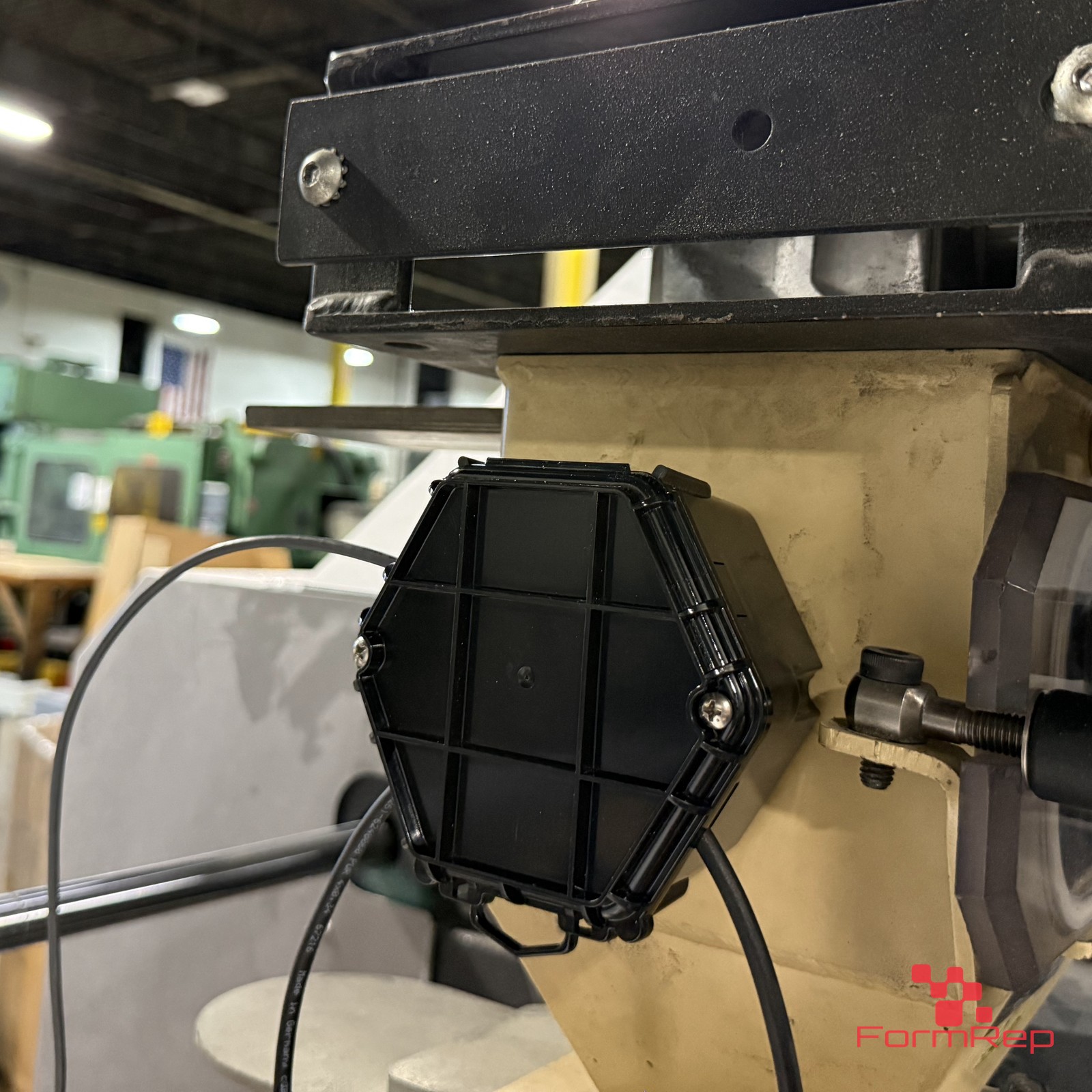

Open Splice Junction Box mounted on a hopper bracket

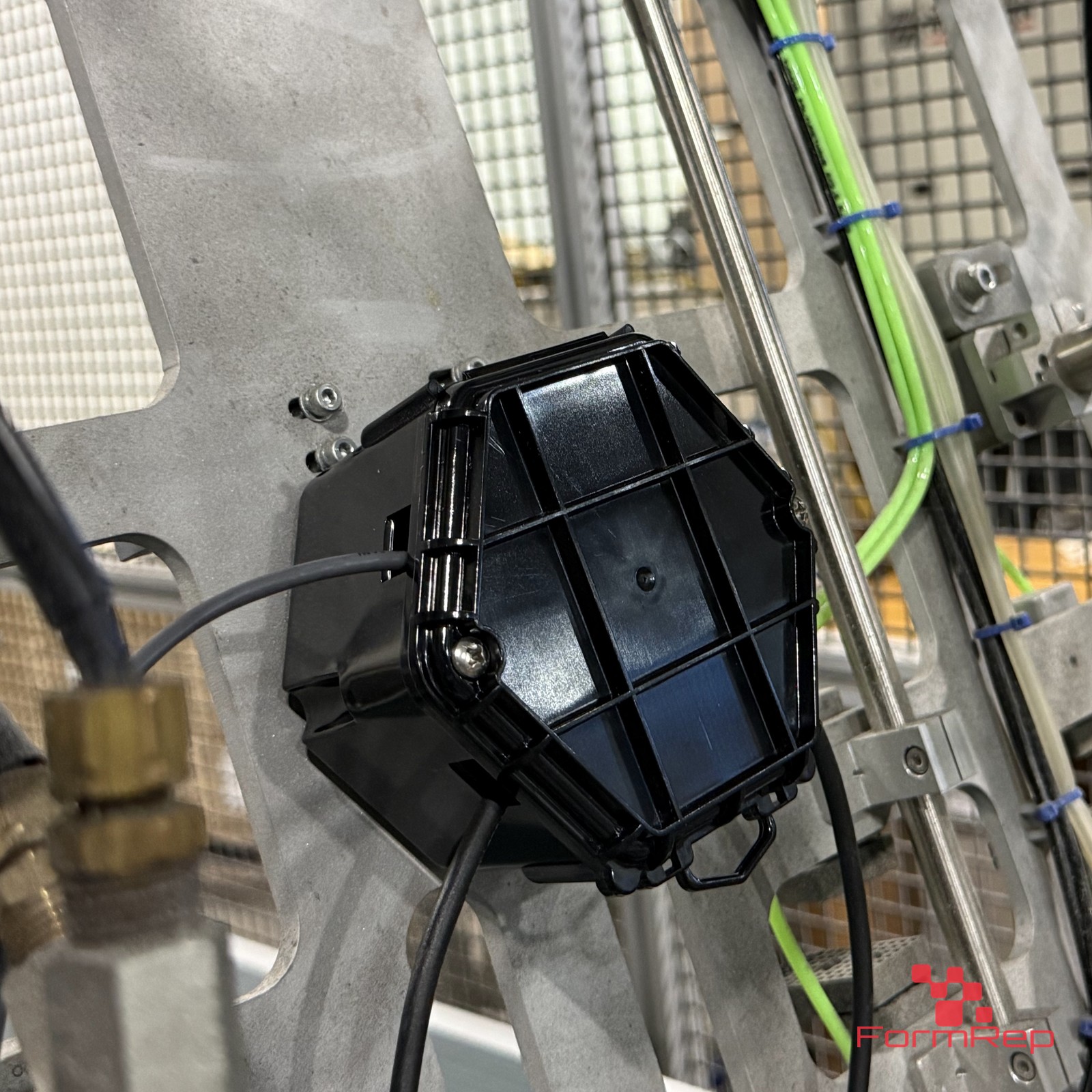

Open Splice Junction Box mounted on a machine frame
Open Splice Junction Box, black one-piece hinged enclosure
Open Splice Junction Box holds wire sizes up to 10 gauge
Patented one-piece Open Splice Junction Box
Open Splice Junction Box dimensions 4 x 4 x 3 in
Open Splice Junction Box in retail packaging
Open Splice Junction Box open with wire splices inside
Exposed wire splice before installing a junction box
Open Splice Junction Box open on an injection mold, showing a wire splice inside
Open Splice Junction Box closed and mounted on an injection mold
Open Splice Junction Box mounted on a machine guard fence
Open Splice Junction Box open on a guard fence, showing the splice inside
Open Splice Junction Box mounted on a hopper bracket
Open Splice Junction Box mounted on a machine frame

Open Splice Junction Box, One-Piece with Hinged Lid, 25.8 cu in

$8.98

  • One-piece box with a hinged lid, patent pending
  • Encloses an existing splice without taking the wires apart
  • Tested to UL 514C (US) and CSA C22.2 No. 182 (Canada)
  • 25.8 cu in; cable slots on all four sides fit 14-2 to 10-3 NM with ground
  • Fire-resistant black polymer, made in the USA
  • ✓ In stock · ships next business day from Missouri
  • ✓ Free US shipping on orders over $100
  • ✓ 30-day returns · Returns & warranty
  • Need a different length, connector or a made-to-fit part? Request a quote
  • ☎ Questions? Call 816-782-7800
We acceptVISAAMEXDISCVERPayGPay

Buying in volume? Contact us for volume pricing options.

SKU: 3448 Category:

Description

The Open Splice Junction Box gives exposed wire splices a safe, code-compliant home in minutes. The one-piece box has a hinged lid that folds down over the splice, so existing connections can be enclosed as they are instead of being cut apart and remade. It’s a quick fix for attics, crawl spaces, basements and inspection punch lists.

Features

  • No re-splicing: the hinged lid closes over the existing splice, so you don’t have to disconnect the wires.
  • One-piece design: patent pending, with no loose covers or parts to manage.
  • Tested to code standards: UL 514C (US) and CSA C22.2 No. 182 (Canada).
  • Room to work: 25.8 cu in of volume, with cable slots on all four sides for tight spaces.
  • Fits common NM cable: 14-2 with ground through 10-3 with ground.
  • Fire-resistant polymer: black finish keeps wiring neat and discreet.
  • Made in the USA.

How to install

  1. Turn off power at the breaker, then check that the existing connections are tight and undamaged.
  2. Push the side doors inward where the cables will enter.
  3. Mount the box to the framing.
  4. Set the splice inside the box.
  5. Close the lid and secure it with the two included screws.

Specifications

Item # 3448
Material Fire-resistant polymer
Color Black
Dimensions 4 x 4 x 3 in (10.16 x 10.16 x 7.6 cm)
Volume 25.8 cu in
Cable entry Slots on 4 sides; 14-2 to 10-3 NM with ground
Standards UL 514C / CSA C22.2 No. 182
Lid screws 2, included

Always turn off power at the breaker before working on electrical wiring, inspect connections before enclosing them, and follow local electrical codes.
