Description
Terminate and Seal an Unused 4-Pin DT-Style Port in One Step

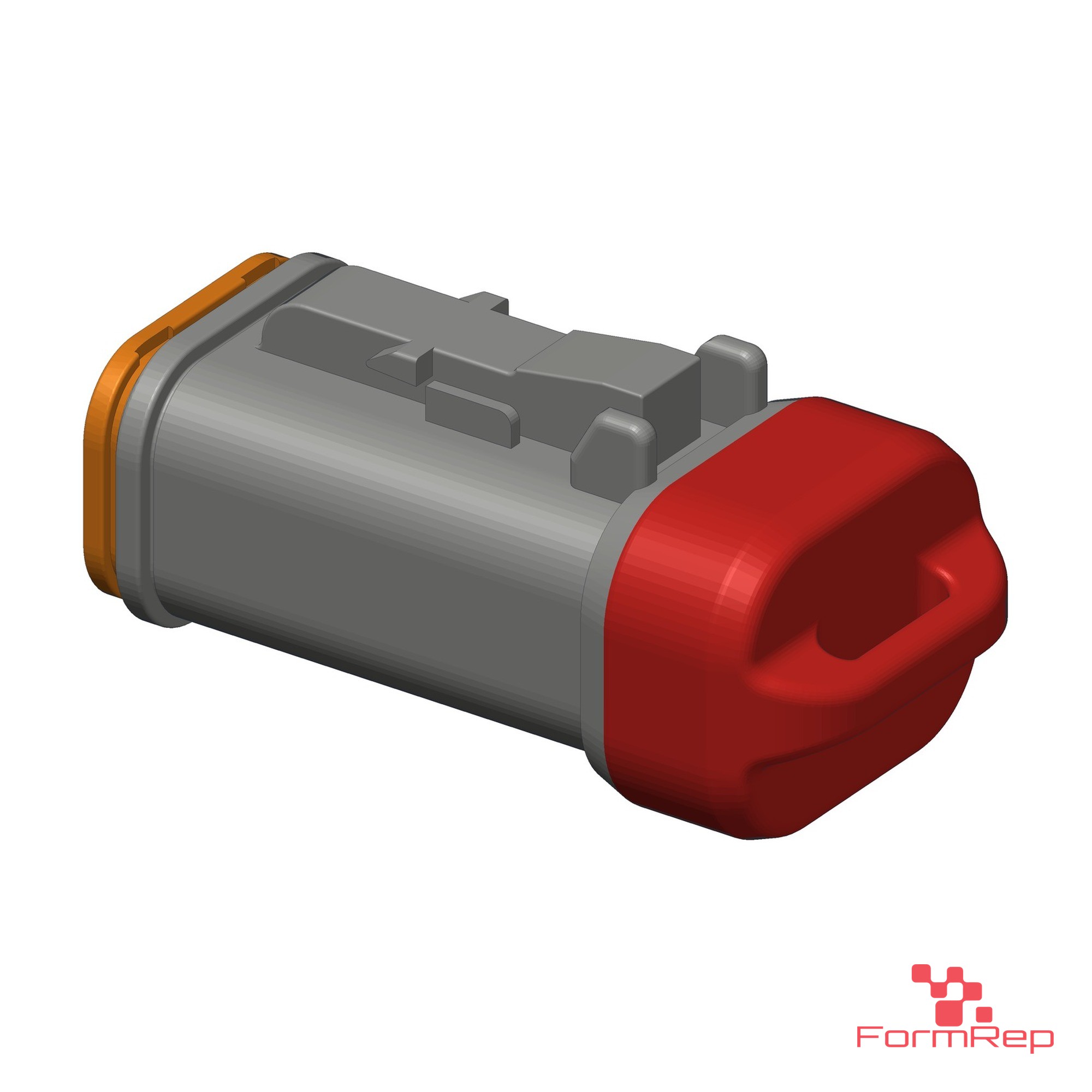

Some I/O module networks need a 120 Ω terminating resistor at the open end of the bus. This Socket Lock™ plug has the resistor built in, wired across cavities 2 and 4, and seals the port against water, dust and debris at the same time.

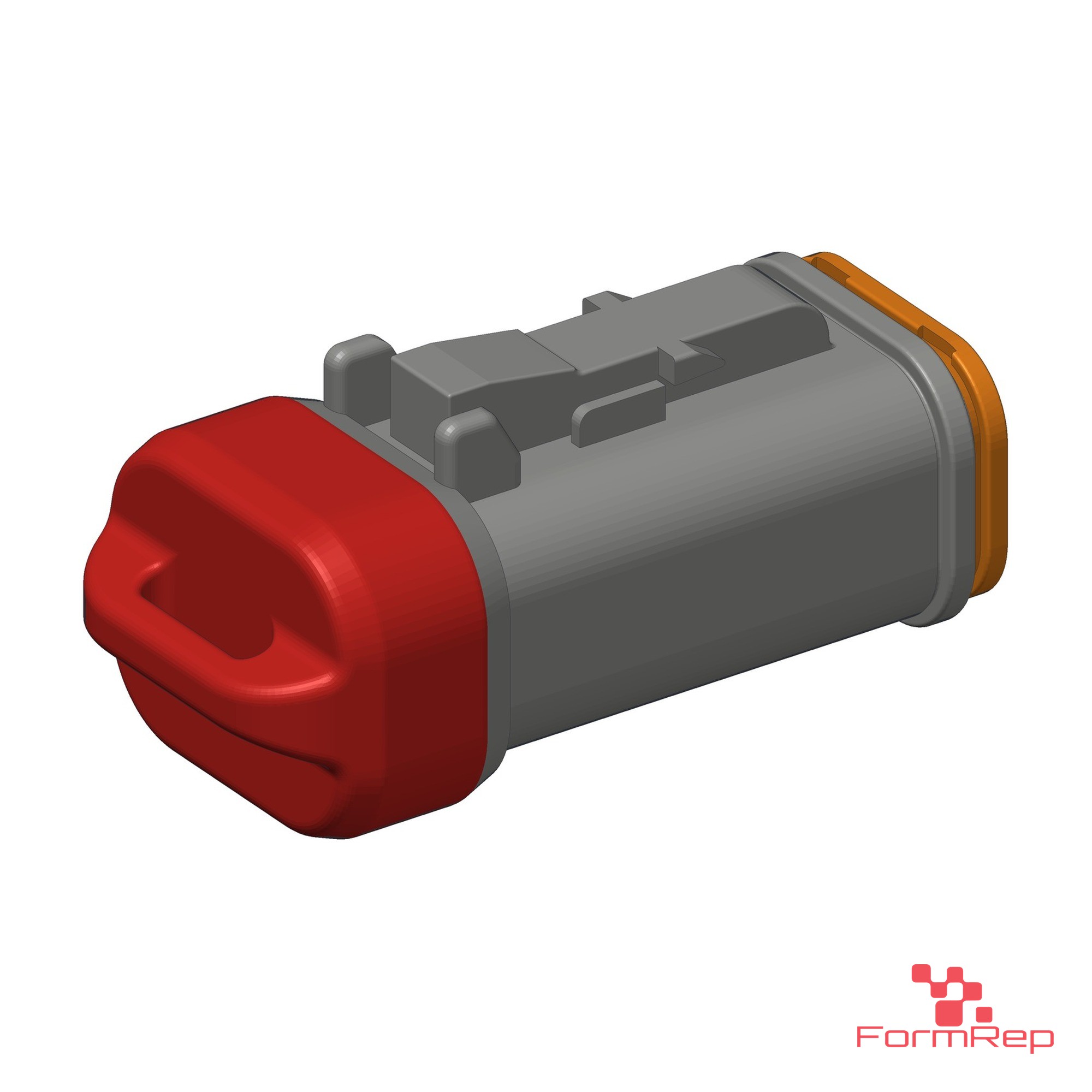

It mates with 4-pin DT-style receptacles (DT04-4P compatible), latches in by hand with no tools. A molded loop on the cap gives you a spot to attach a lanyard. It is a direct replacement for Data Panel DP-34042-402 on xtremeDB-style module ports.
Specifications
- Termination: 120 Ω resistor between cavities 2 and 4
- Mates with: 4-pin DT-style receptacle (DT04-4P compatible)
- Body: PA6 + 30% glass fiber, UV-stabilized, integrated DT-style latch

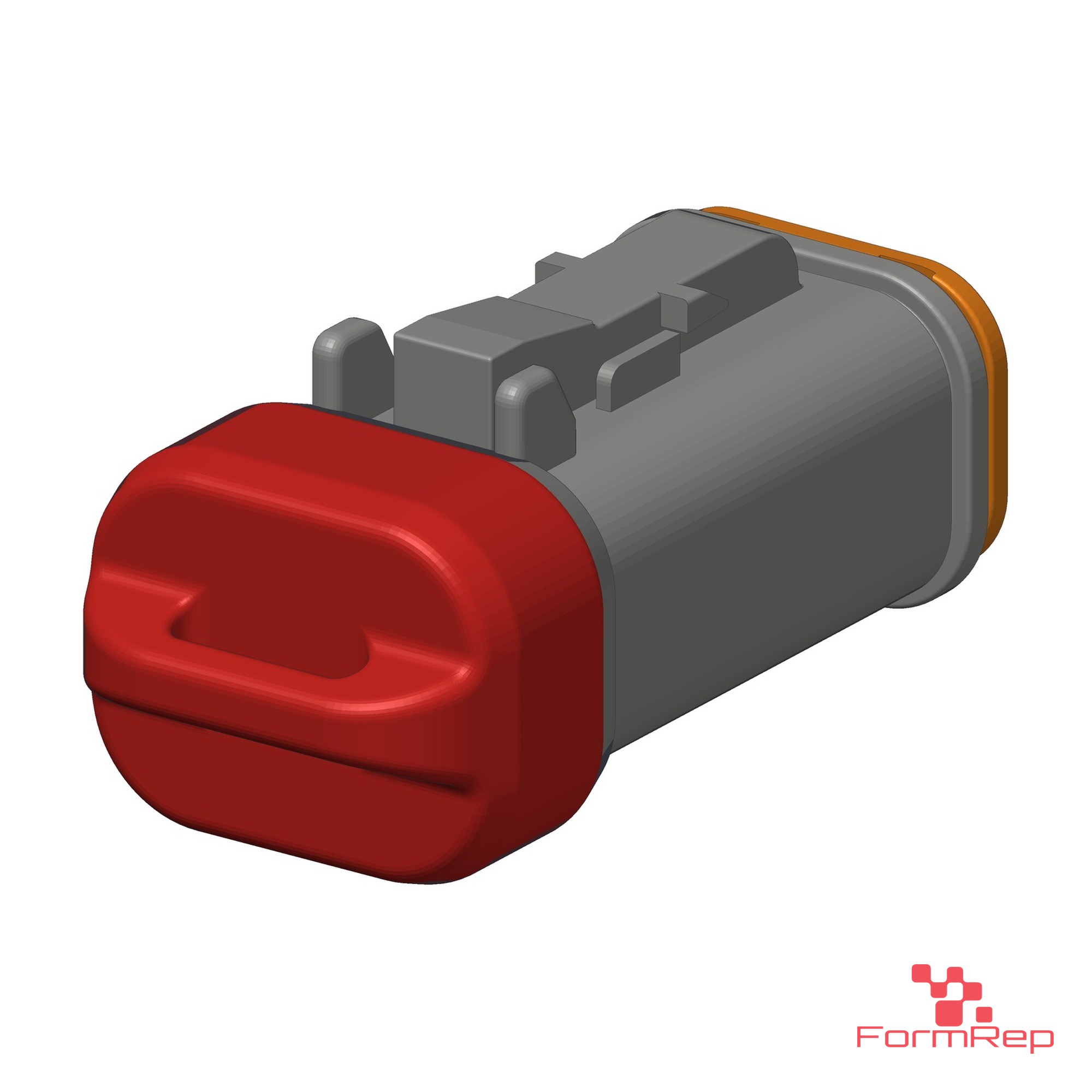

- Cap: Red overmold with lanyard loop

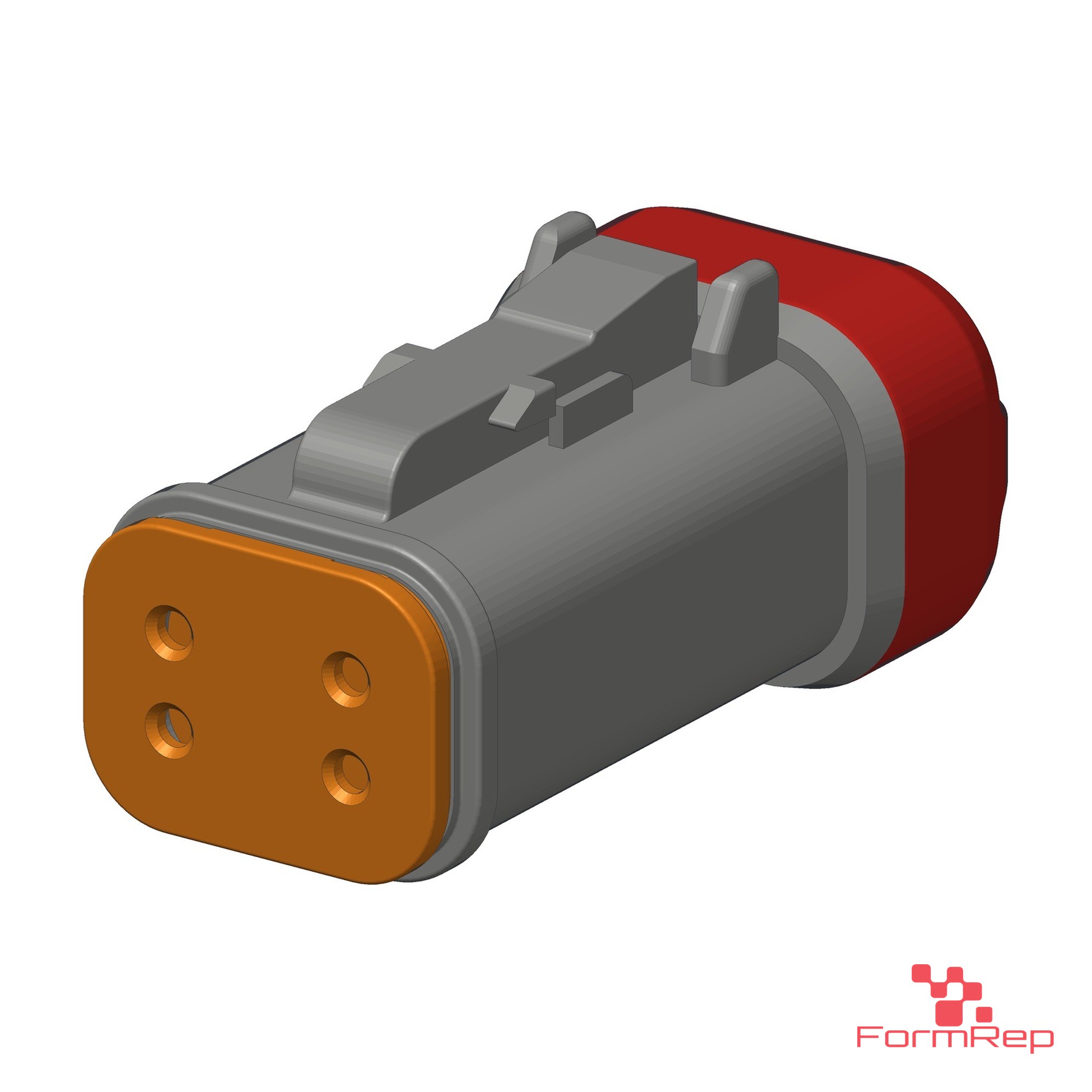

- Seal: Silicone

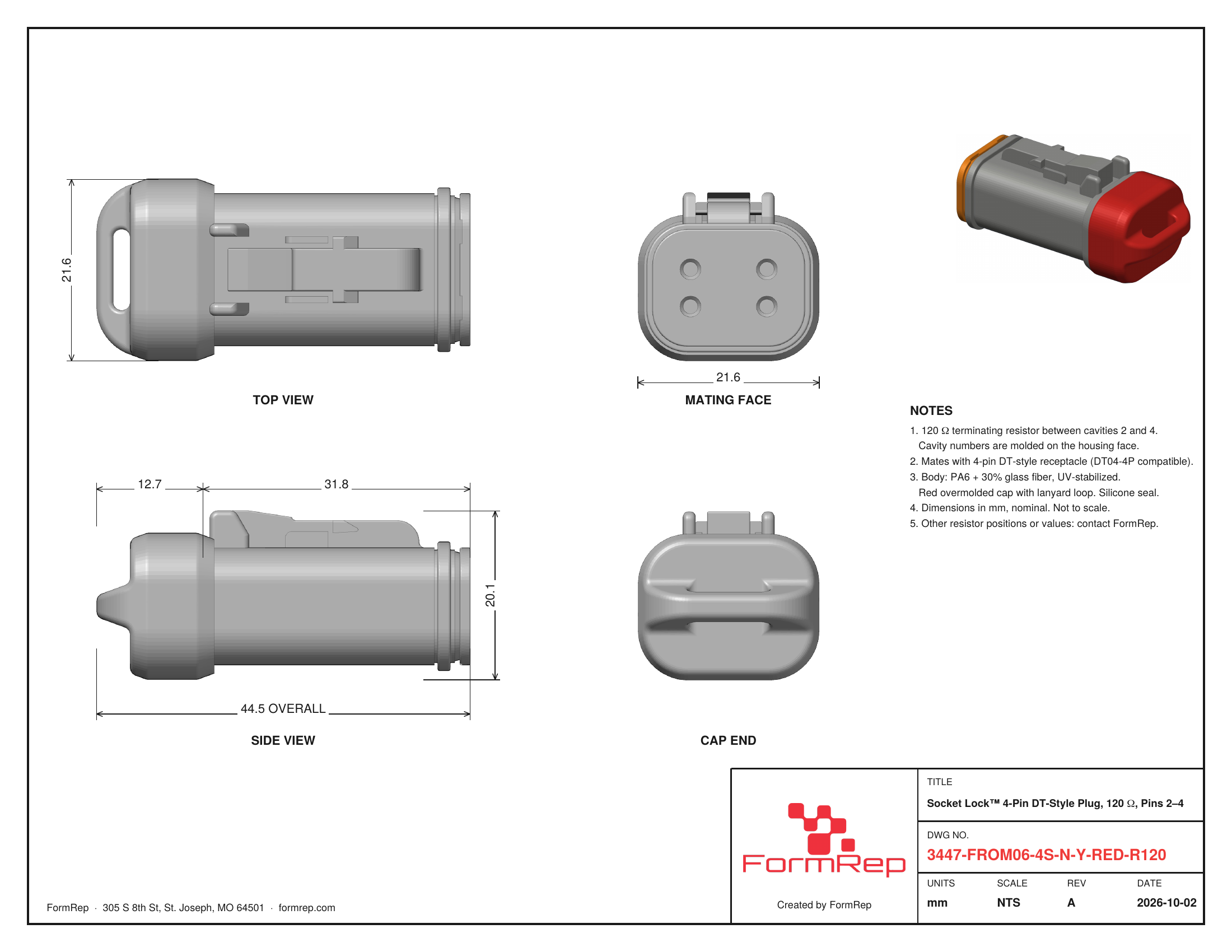

- Dimensions: 44.5 × 21.6 × 20.1 mm (L × W × H), nominal
Cross-reference
FormRep item: 3447 · Part # 3447-FROM06-4S-N-Y-RED-R120 (single), 3447-FROM06-4S-N-Y-RED-R120-10PK (10-pack)
Replaces: Data Panel DP-34042-402
Brand names are trademarks of their owners; used for identification only.
See the full cross-reference list →
Need the resistor on different cavities, a different value, or another pin count? FormRep builds made-to-fit versions. Request a quote or call 816-782-7800.
