Description

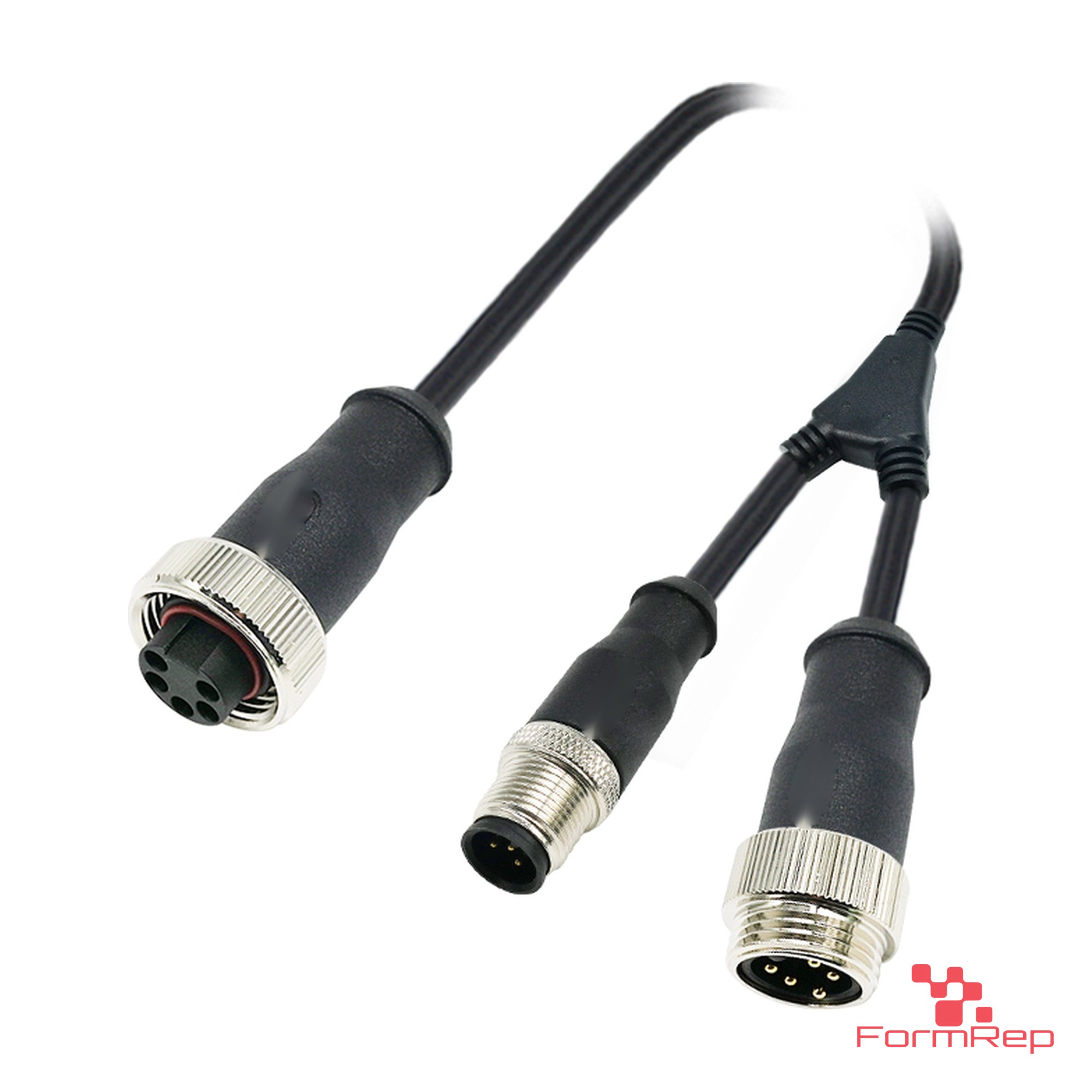

Molded Y-splitter cable that takes one 7/8″-16UN 5-pin female trunk to a 7/8″ 5-pin male branch and an M12 A-coded 5-pin male branch.
Specifications
- J1 (trunk): 7/8″-16UN 5-pin female
- J2: 7/8″-16UN 5-pin male
- J3: M12 × 1.0 A-coded 5-pin male
- Wiring: J1-1 to J2-3 and J3-1 · J1-2 to J2-5 · J1-3 to J2-1 · J1-4 to J3-4 · J1-5 to J3-5
- Lengths: trunk and branch lengths to order
- Materials: brass contacts, gold plated · brass couplings, nickel plated · molded black body
- Compliance: RoHS, REACH
Configuration code
78-5P-Y-F-78M-M12M. Example: 78-5P-Y-F-78M-M12M = 7/8″ 5-pin female to 7/8″ male and M12 male Y-splitter cable.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative.
Need a different length, pinout or connector combination? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
