Description

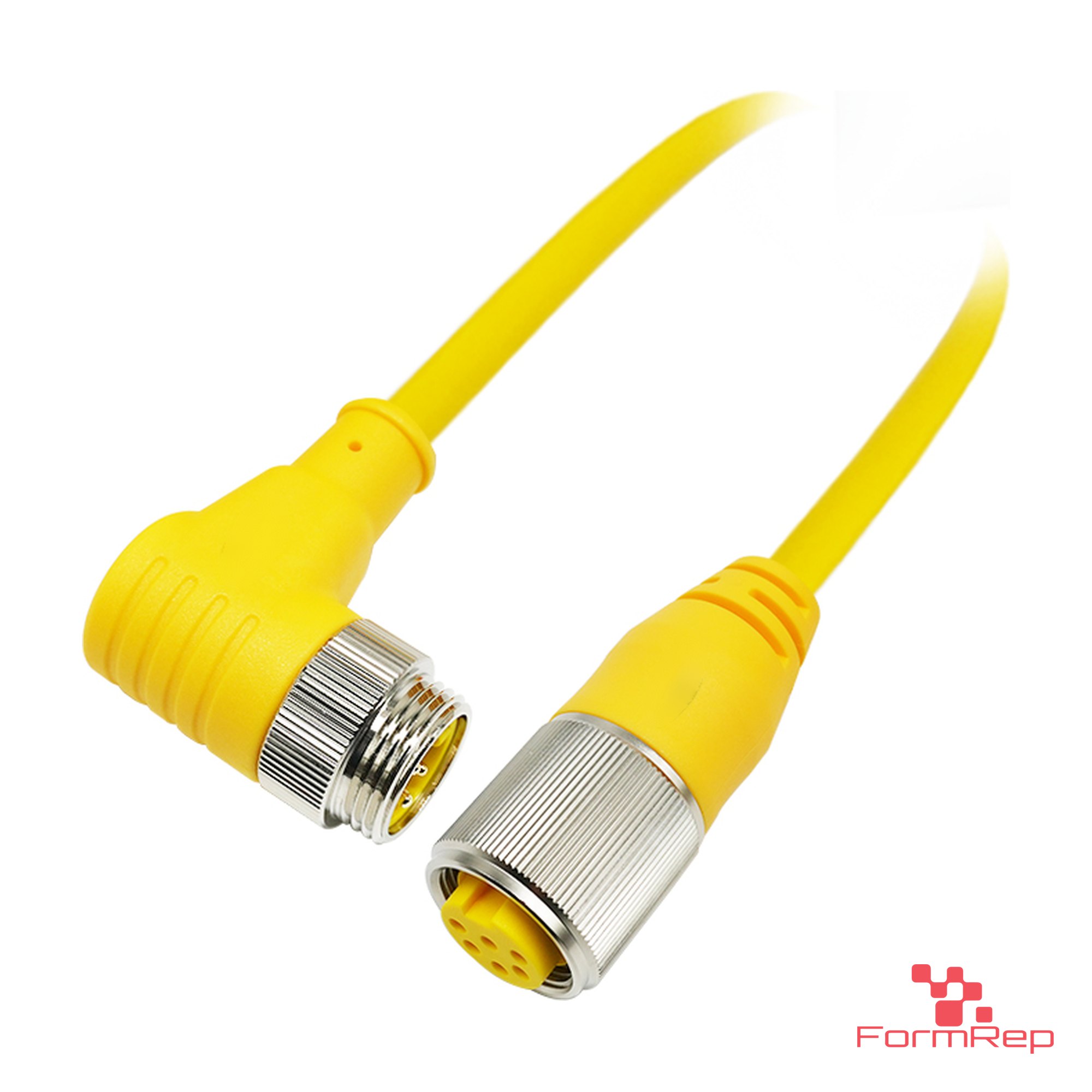

Molded yellow power cable joining a 7/8″-16UN 6-pin male right-angle connector to a 1″-16UN 6-pin female straight connector, wired pin to pin. Choose the length; the configuration code updates as you pick.
Specifications
- J1: 7/8″-16UN screw lock, 6-pin male, right-angle
- J2: 1″-16UN screw lock, 6-pin female, straight
- Wiring: pin to pin: 1 orange, 2 blue, 3 black, 4 white, 5 red, 6 green/yellow
- Lengths: 1, 2, 5 or 10 m
- Rating: 600 V, 13 A (conductor size confirmed at quote)
- Materials: brass contacts, gold plated · brass couplings, nickel plated · yellow molded bodies and jacket
- Operating temperature: −40 to +105 °C (connectors)
- Compliance: RoHS, REACH
Configuration code
78-6P-MRA-116-FST-[1M/2M/5M/10M]. Example: 78-6P-MRA-116-FST-5M = 7/8″ 6-pin male right-angle to 1″-16UN 6-pin female cable, 5 m.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative.
Need a different length, pinout or connector combination? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
