Description

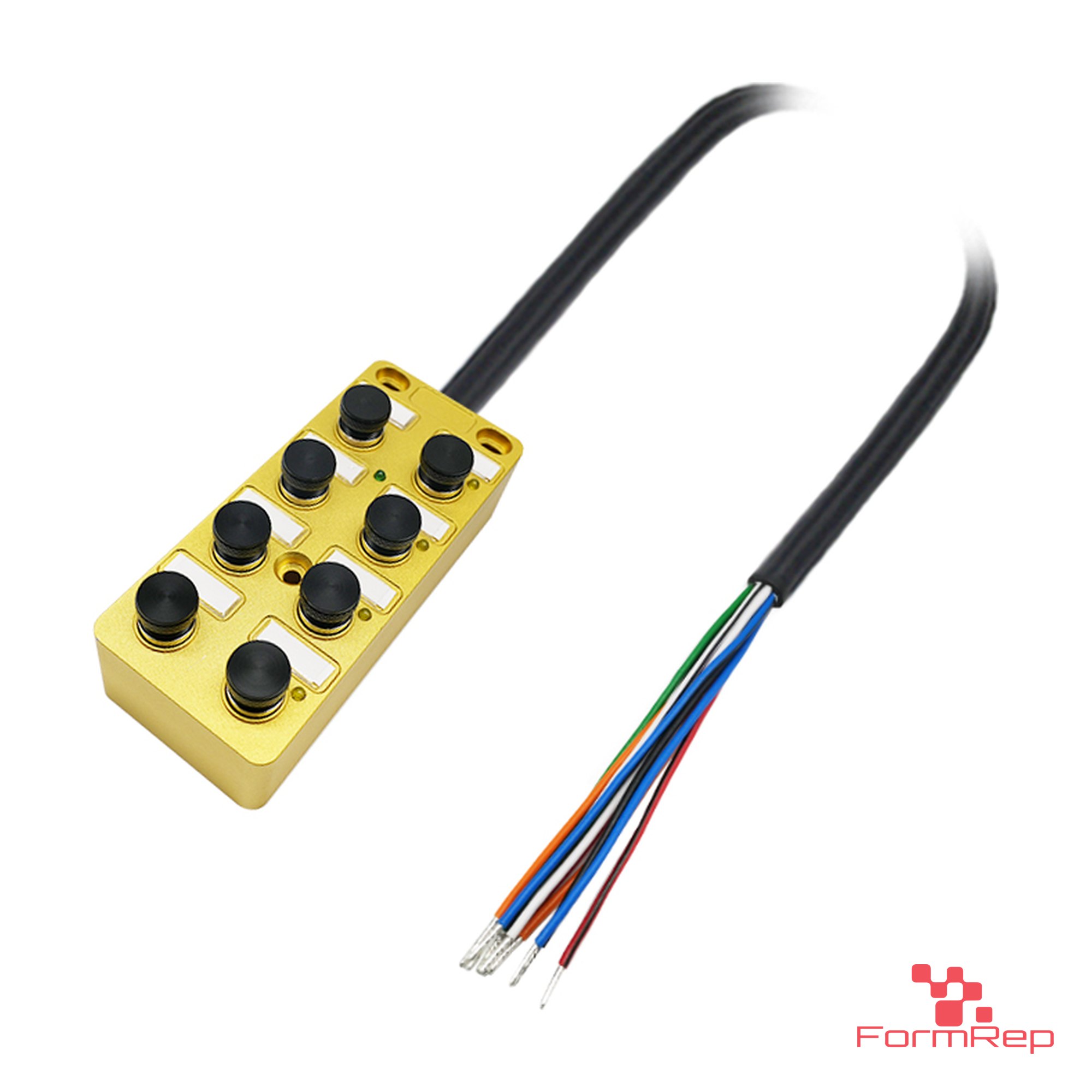

8-port M12 junction box for 3-wire sensors, with LED status for power and each signal and an open-end home-run cable for wiring into a cabinet. Choose the length; the configuration code updates as you pick.
Specifications

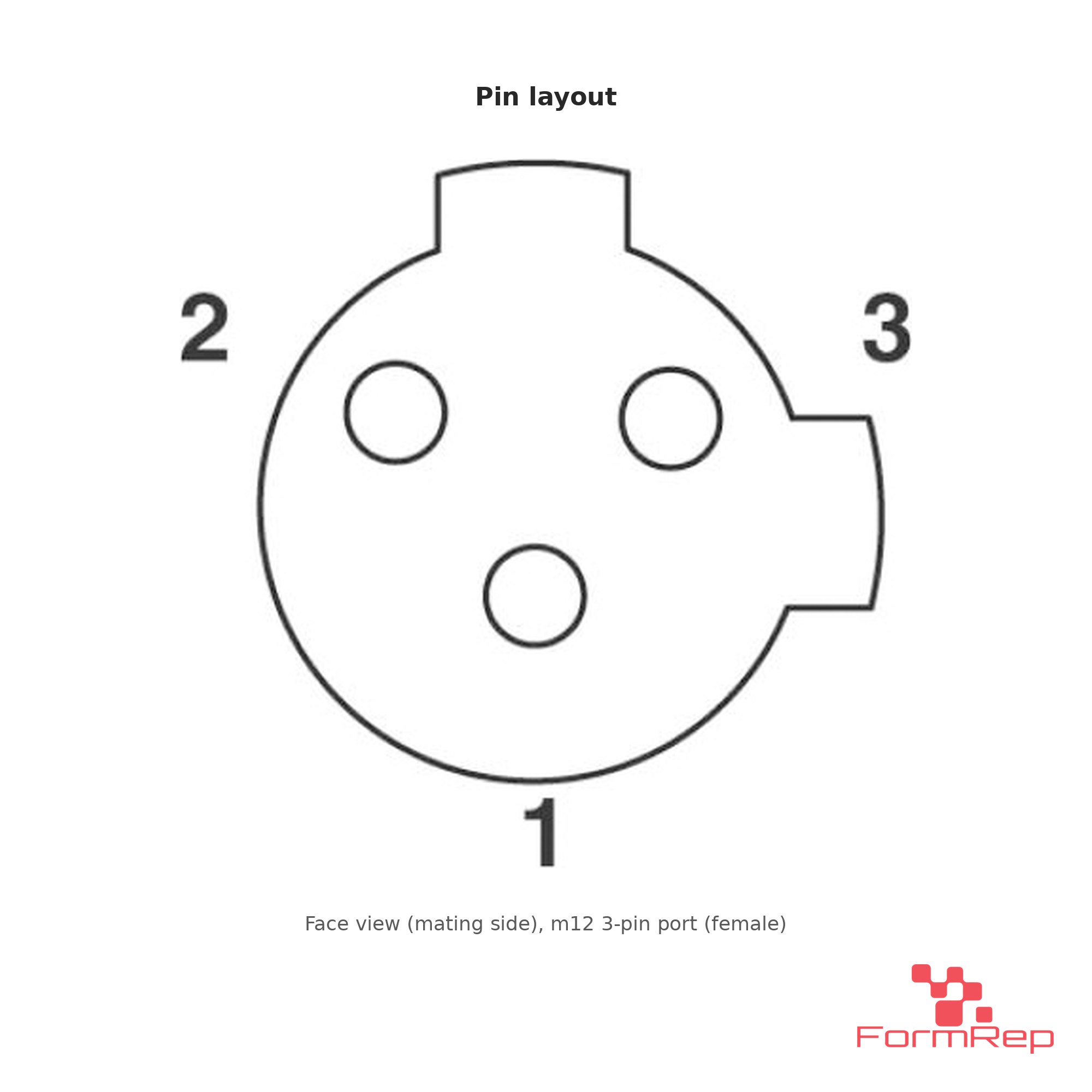

- Ports: 8 × M12 × 1.0 3-pin female
- Home run: cable with open tinned conductors, 1, 2, 5 or 10 m
- Indicators: green power LED, yellow signal LED per port
- Rating: 250 V, 4 A per port (confirmed at quote)
- Size: 125.2 × 54 mm
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
JB-M12-8X3P-OE-[1M/2M/5M/10M]. Example: JB-M12-8X3P-OE-5M = 8-port M12 3-pin junction box with 5 m open-end home-run cable.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative.
Need a different length, pinout or connector combination? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
