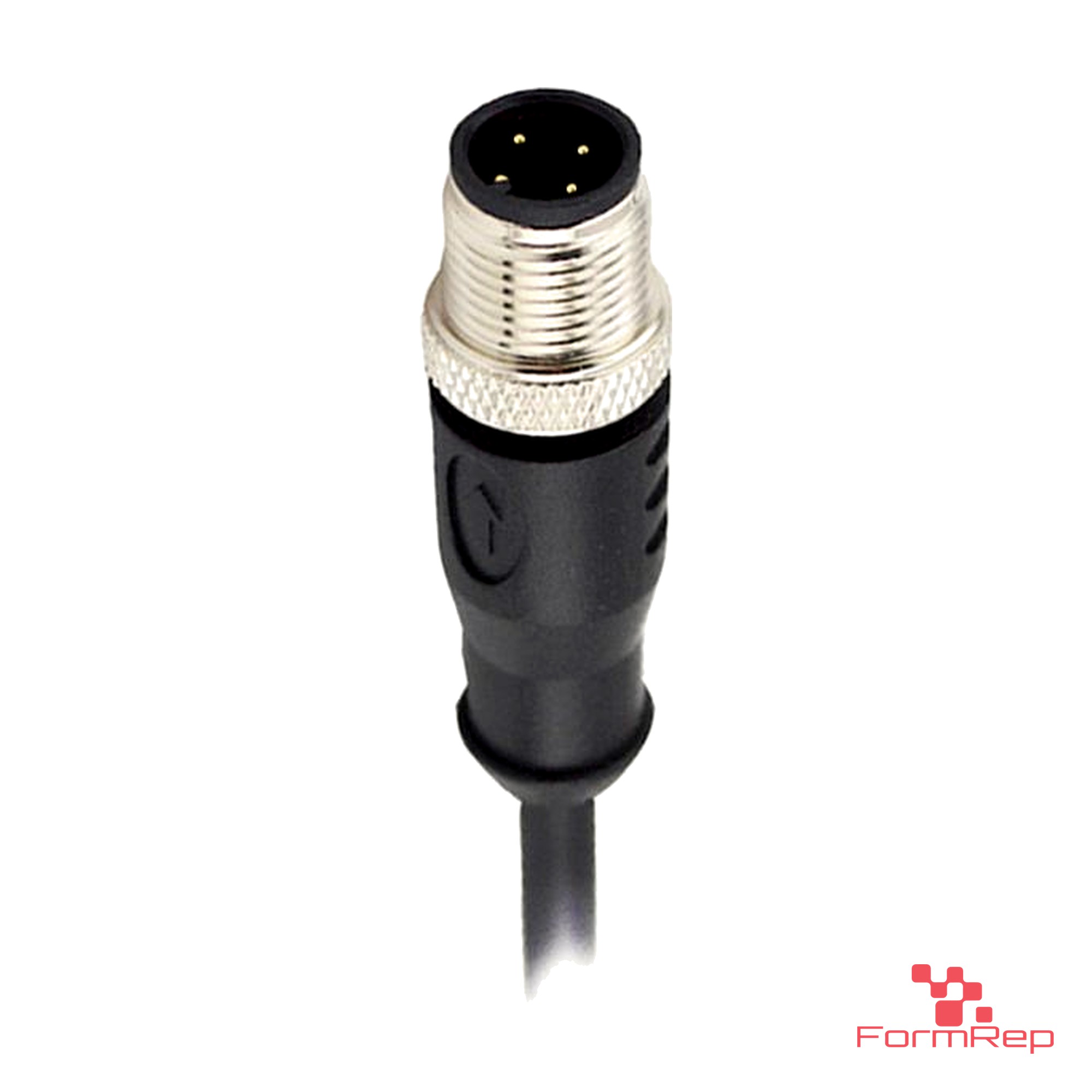

Description
Overmolded M12 B-coded 5-pin cable for fieldbus networks, with a male straight connector on one end and open conductors on the other for wiring into a terminal, controller or device. Choose the jacket, shielding and length; the configuration code updates as you pick.
Specifications
- Connector: M12 × 1.0, B-coded, male straight, per IEC 61076-2-101
- Free end: open conductors

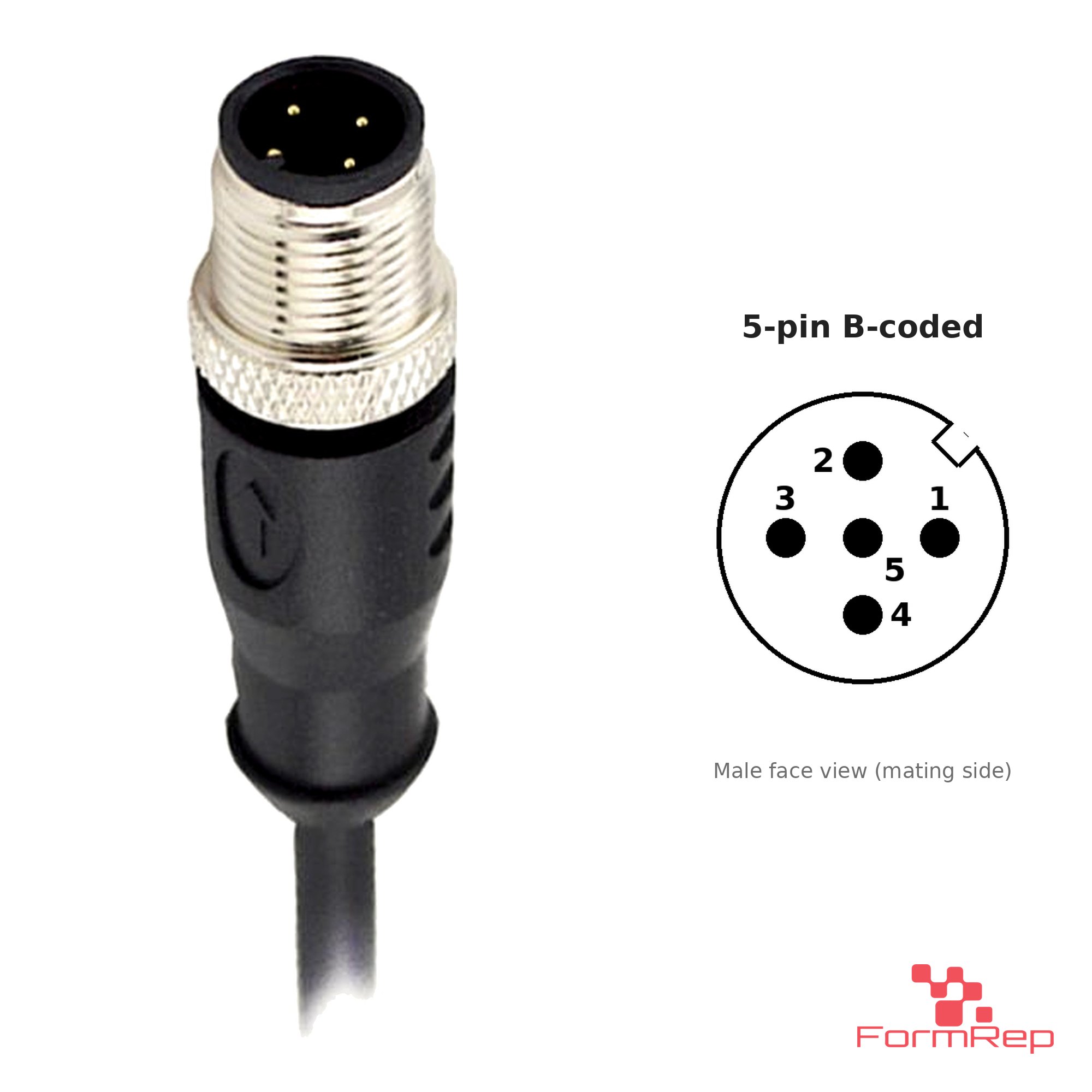

- Pins: 5 (see the pin layout image)
- Rating: 60 V, 4 A (current rating at 40 °C)
- Wire gauge: 0.14 to 0.75 mm² range (26 to 18 AWG)
- Cable: PUR or PVC jacket, black, unshielded or shielded, rated −40 to +105 °C
- Lengths: 1 m, 2 m, 5 m or 10 m
- Materials: brass contacts, gold plated · brass coupling, nickel plated · TPU body and overmold
- Insulation resistance: ≥ 100 MΩ · Contact resistance: ≤ 5 mΩ · Mating cycles: more than 100
- Compliance: RoHS, REACH
Configuration code
M12B-5P-M-ST-[PUR or PVC]-[U unshielded or S shielded]-[length]M. Example: M12B-5P-M-ST-PUR-U-2M is a 5-pin, PUR, unshielded, 2 m cable.
Ordering
Built to order and priced by quote; standard configurations ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; jacket and length follow your selection.
Need a different length, a different connector on one end or a special cable? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
