Description
M12 × 1.0 B-coded panel-mount receptacle with PCB pins, for bringing fieldbus connections through an enclosure wall onto a circuit board. Choose your options; the configuration code updates as you pick.
Specifications
- Connector: M12 × 1.0, B-coded, male or female, per IEC 61076-2-101
- Mounting: straight front or rear mount

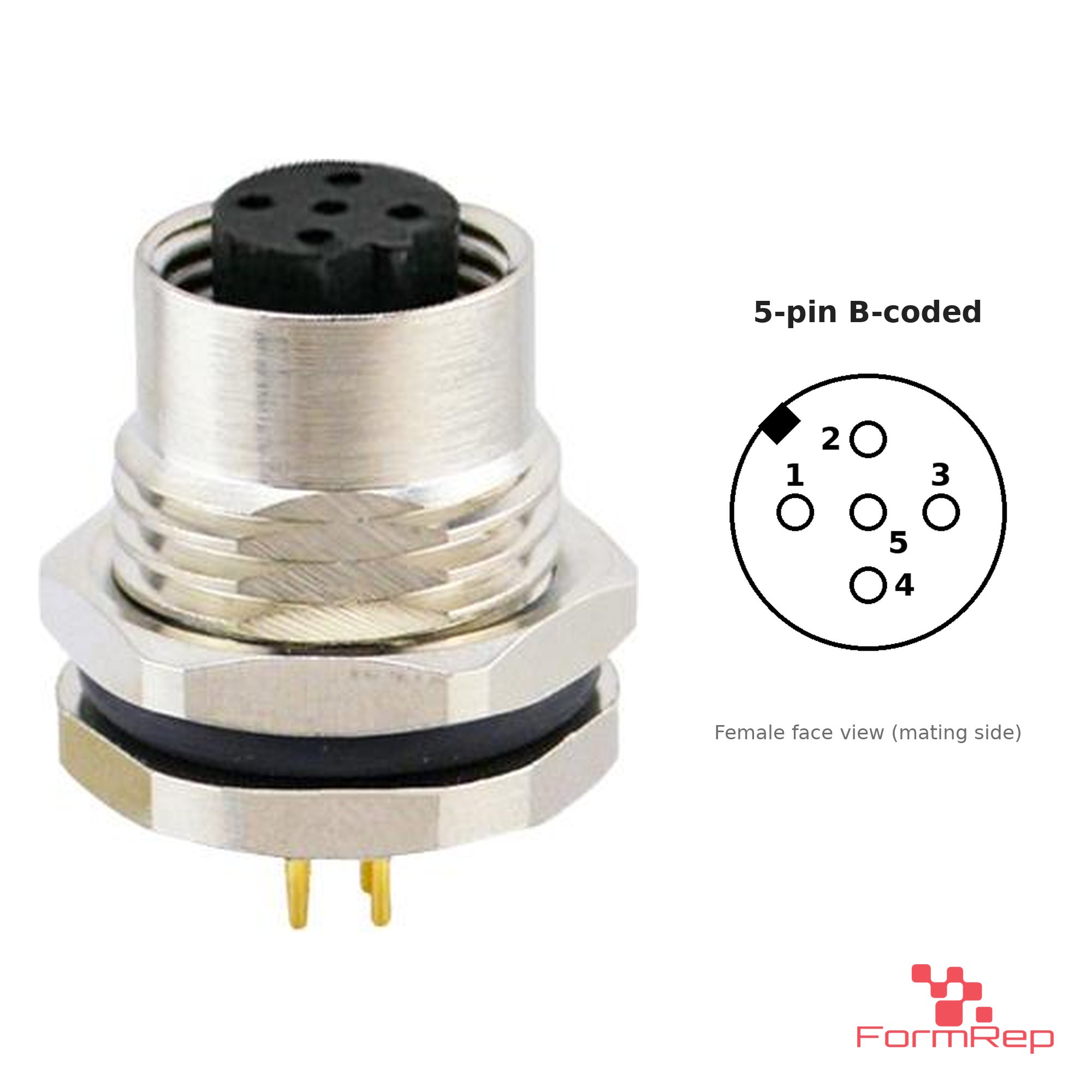

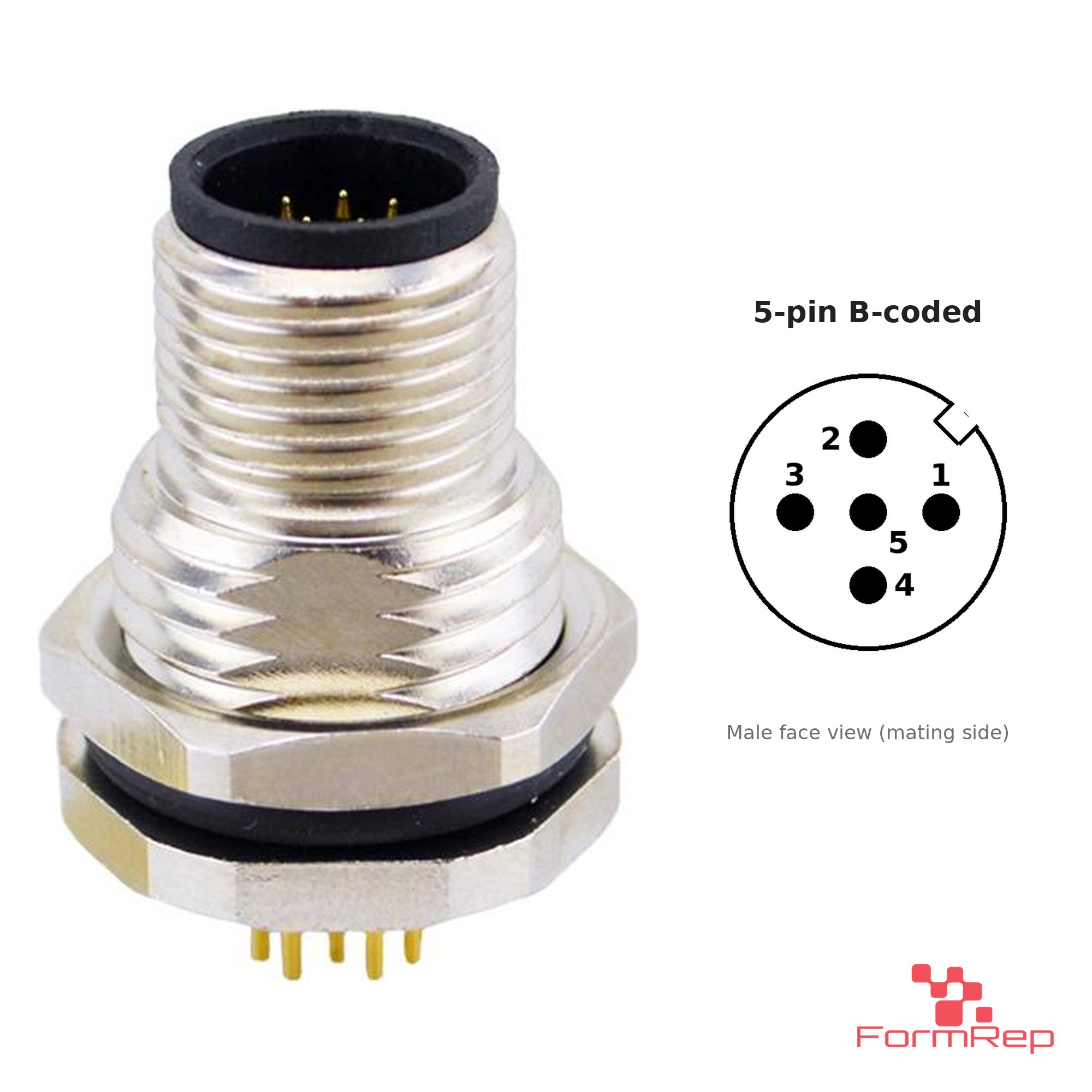

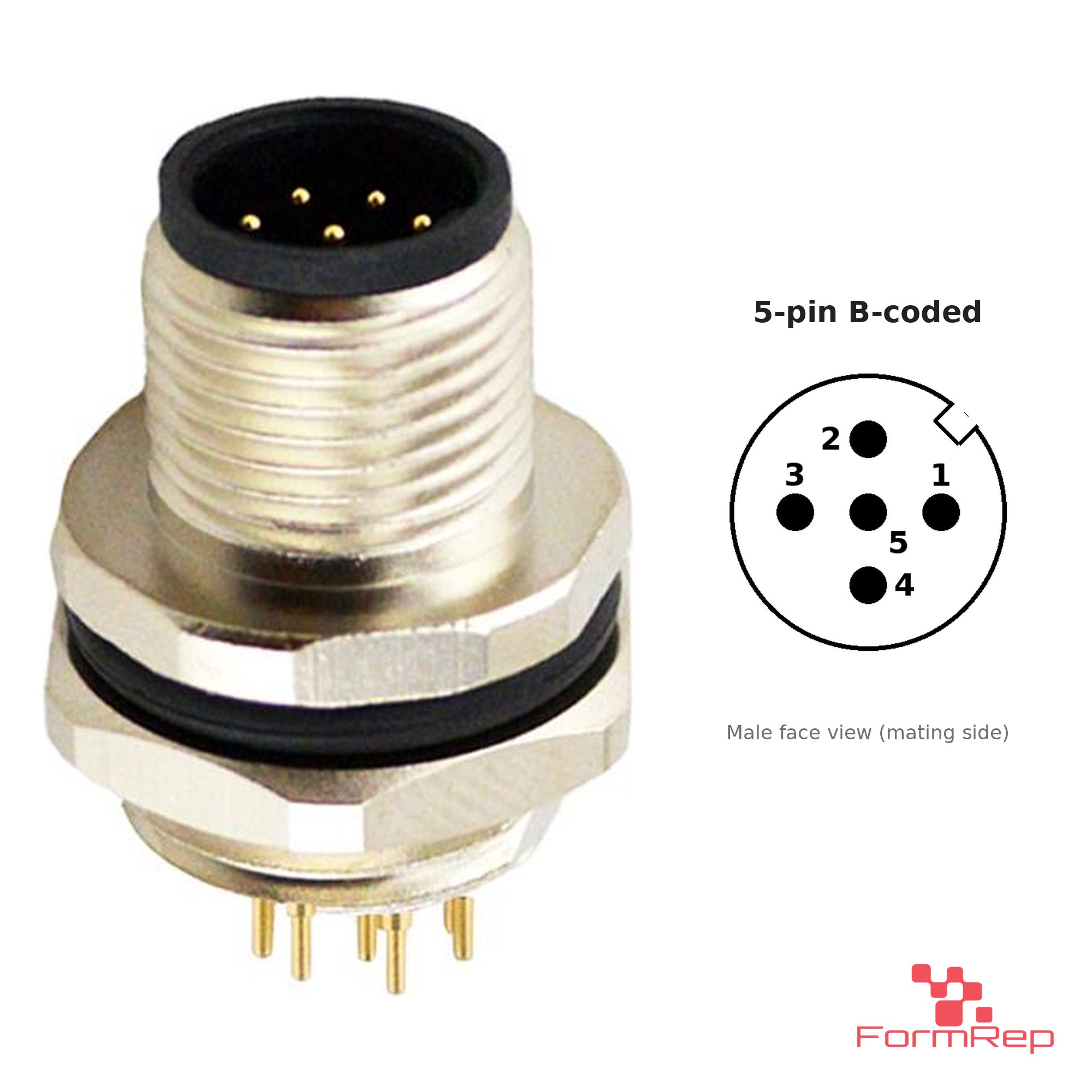

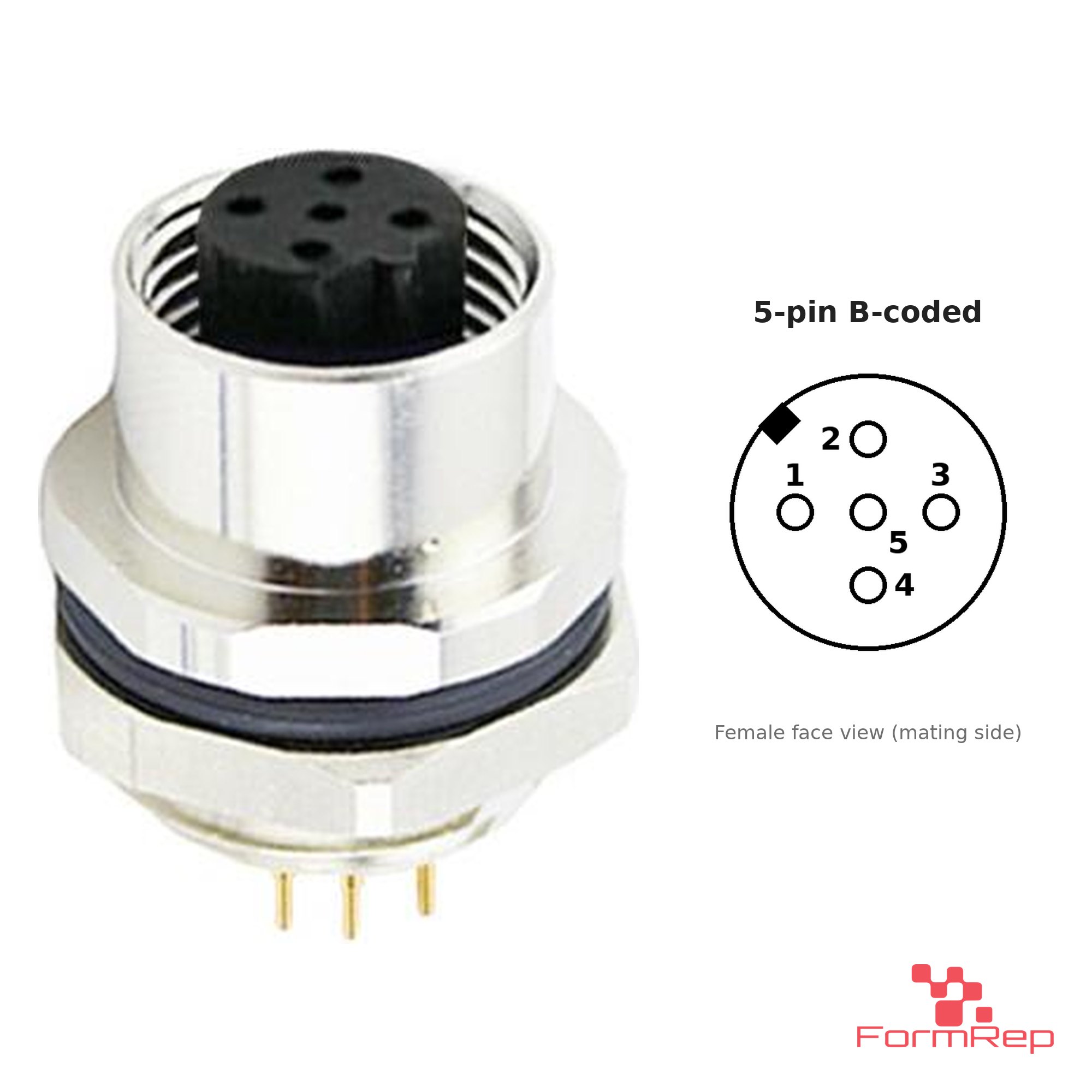

- Pins: 5 (B-coded; see the pin layout image)
- Ratings: 5-pin 60 V, 4 A (current rating at 40 °C)
- Termination: PCB pins
- Panel thread: straight: PG9 or M16 panel thread
- Materials: brass contacts, gold plated · brass nut and shell, nickel plated · TPU insert · FKM seal
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
M12B-5P-[M/F]-ST-[FR/RR]-PCB-[PG9/M16]. Example: M12B-5P-M-ST-FR-PCB-PG9 = 5-pin B-coded male straight, front mount receptacle, PCB pins, PG9 thread.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; pins and coding follow your selection.
Need a molded M12 B-coded cable instead, or a different thread or lead length? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
