Description

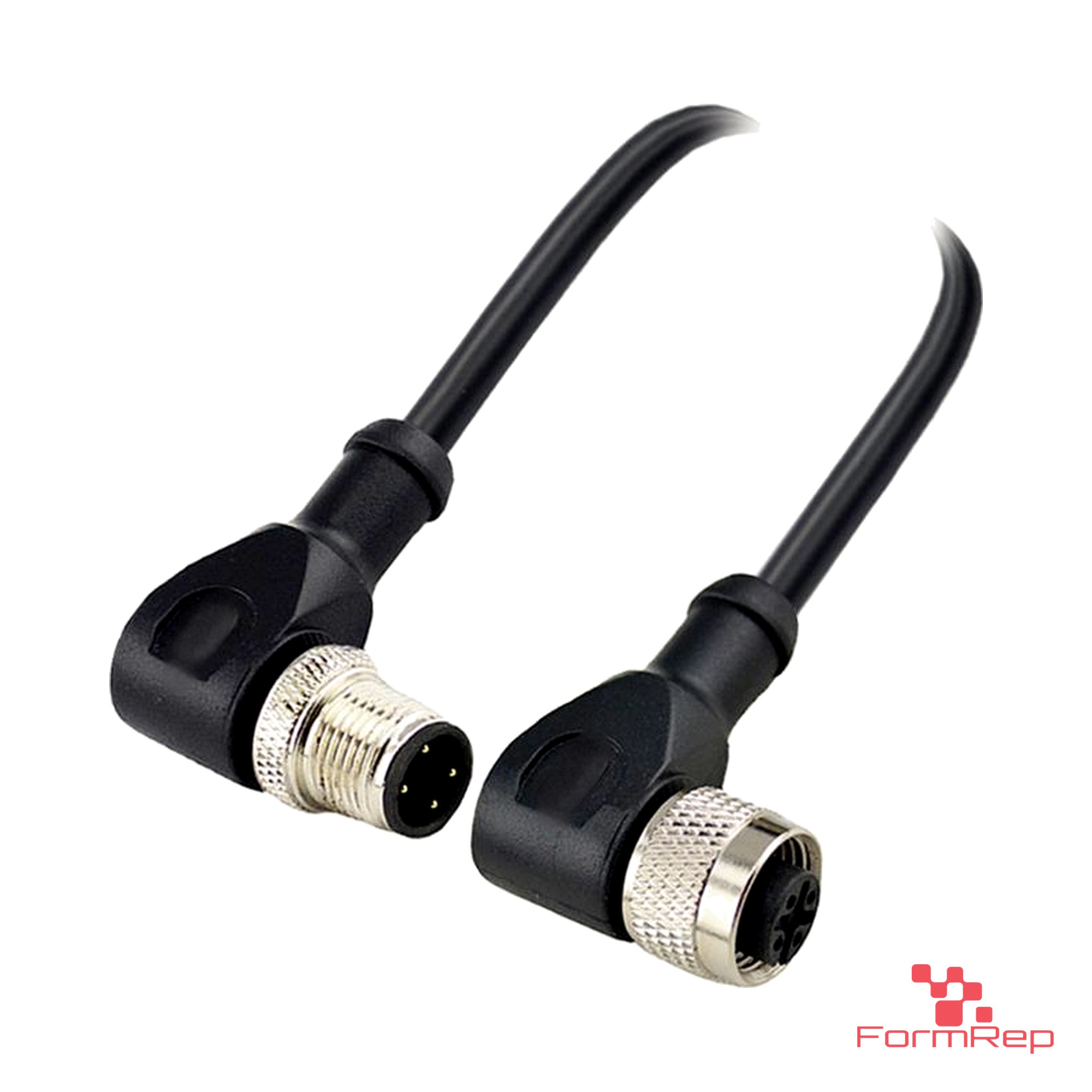

Overmolded M12 D-coded 4-pin cable for industrial Ethernet, with a male right-angle connector on one end and a female right-angle connector on the other, wired pin to pin. Choose the jacket, shielding and length; the configuration code updates as you pick.
Specifications
- Connectors: M12 × 1.0, D-coded, male right-angle to female right-angle, per IEC 61076-2-101
- Wiring: straight through, pin to pin

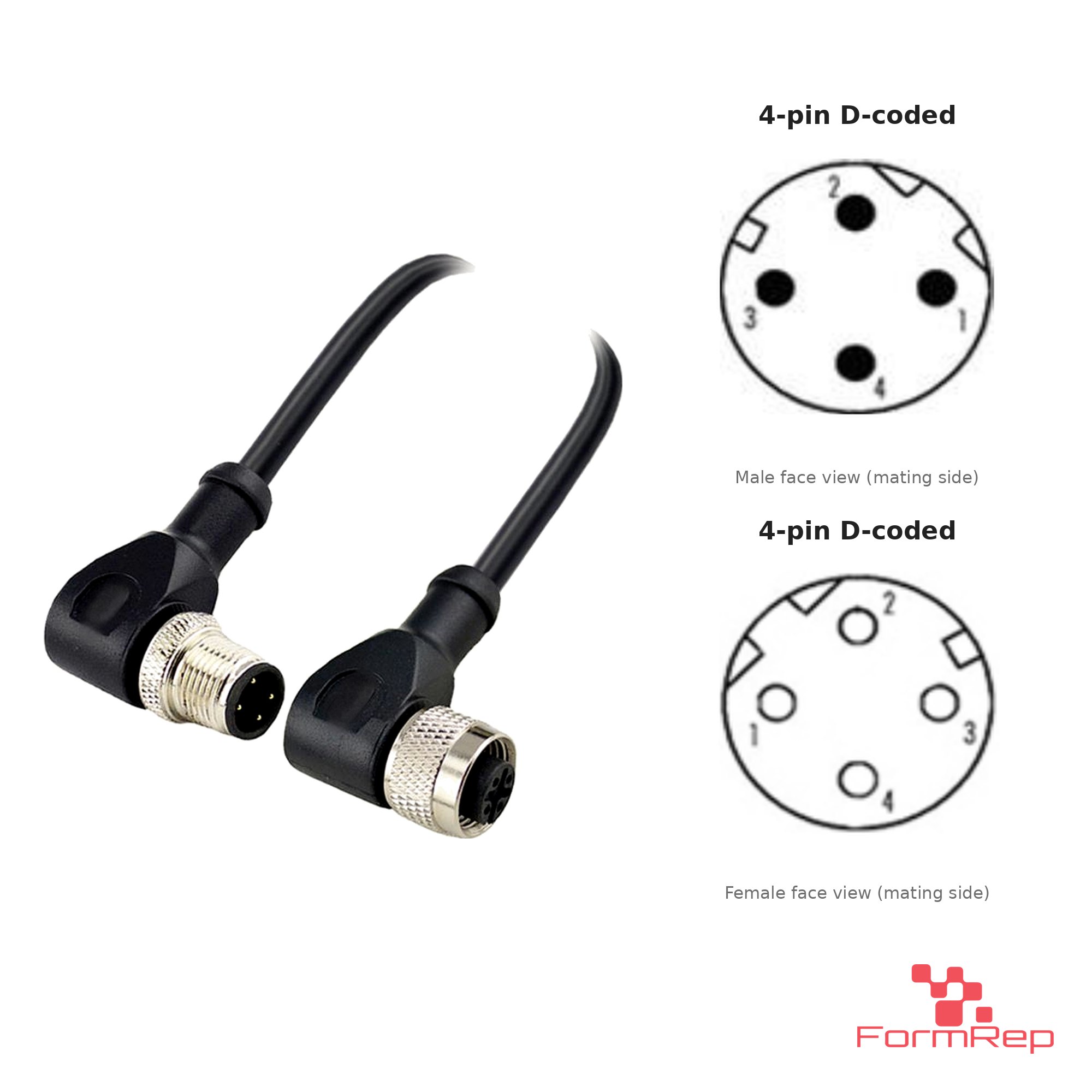

- Pins: 4 (see the pin layout image)
- Rating: 250 V, 4 A (current rating at 40 °C)
- Wire gauge: 0.14 to 0.75 mm² range (26 to 18 AWG)
- Cable: PUR or PVC jacket, black, unshielded or shielded, rated −40 to +105 °C
- Lengths: 1 m, 2 m, 5 m or 10 m overall
- Materials: brass contacts, gold plated · brass coupling, nickel plated · TPU body and overmold
- Insulation resistance: ≥ 100 MΩ · Contact resistance: ≤ 5 mΩ · Mating cycles: more than 100
- Compliance: RoHS, REACH
Configuration code
M12D-4P-MF-RA-[PUR or PVC]-[U unshielded or S shielded]-[length]M. Example: M12D-4P-MF-RA-PUR-U-2M is a PUR, unshielded, 2 m cable.
Ordering
Built to order and priced by quote; standard configurations ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; jacket and length follow your selection.
Need a different length, an RJ45 on one end or a different connector? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
