Description
Overmolded M5 3- or 4-pin cable for compact sensors and actuators, male right-angle to female straight, wired straight through pin to pin. Choose the pins, jacket, shielding and length; the configuration code updates as you pick.
Specifications
- Connectors: M5 × 0.5 screw lock, male right-angle to female straight

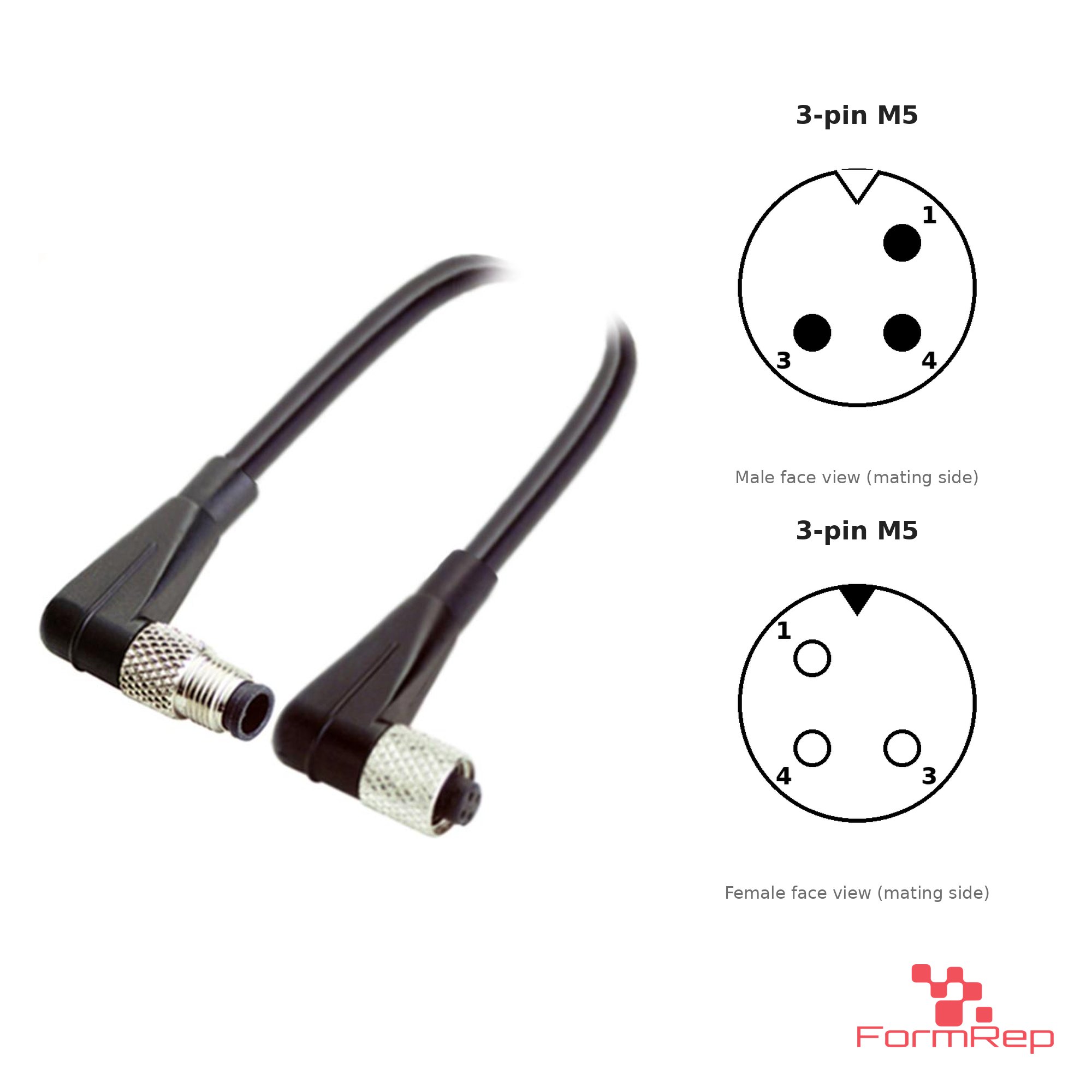

- Pins: 3 or 4 (see the pin layout image)
- Rating: 60 V, 1 A (current rating at 40 °C)
- Wire gauge: 0.14 mm² (26 AWG)
- Cable: PUR or PVC jacket, black, unshielded or shielded, rated −40 to +105 °C
- Lengths: 1 m, 2 m, 5 m or 10 m
- Materials: brass contacts, gold plated · brass coupling, nickel plated · TPU body and overmold
- Compliance: RoHS, REACH
Configuration code
M5-[3P/4P]-MRA-FST-[PUR/PVC]-[U/S]-[length]M. Example: M5-4P-MRA-FST-PUR-U-2M = 4-pin M5 male right-angle to female straight, PUR jacket, unshielded, 2 m.
Ordering
Built to order and priced by quote; standard configurations ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; jacket and length follow your selection.
Need a different length, a different connector on one end or an M8 or M12 cable instead? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
