Description

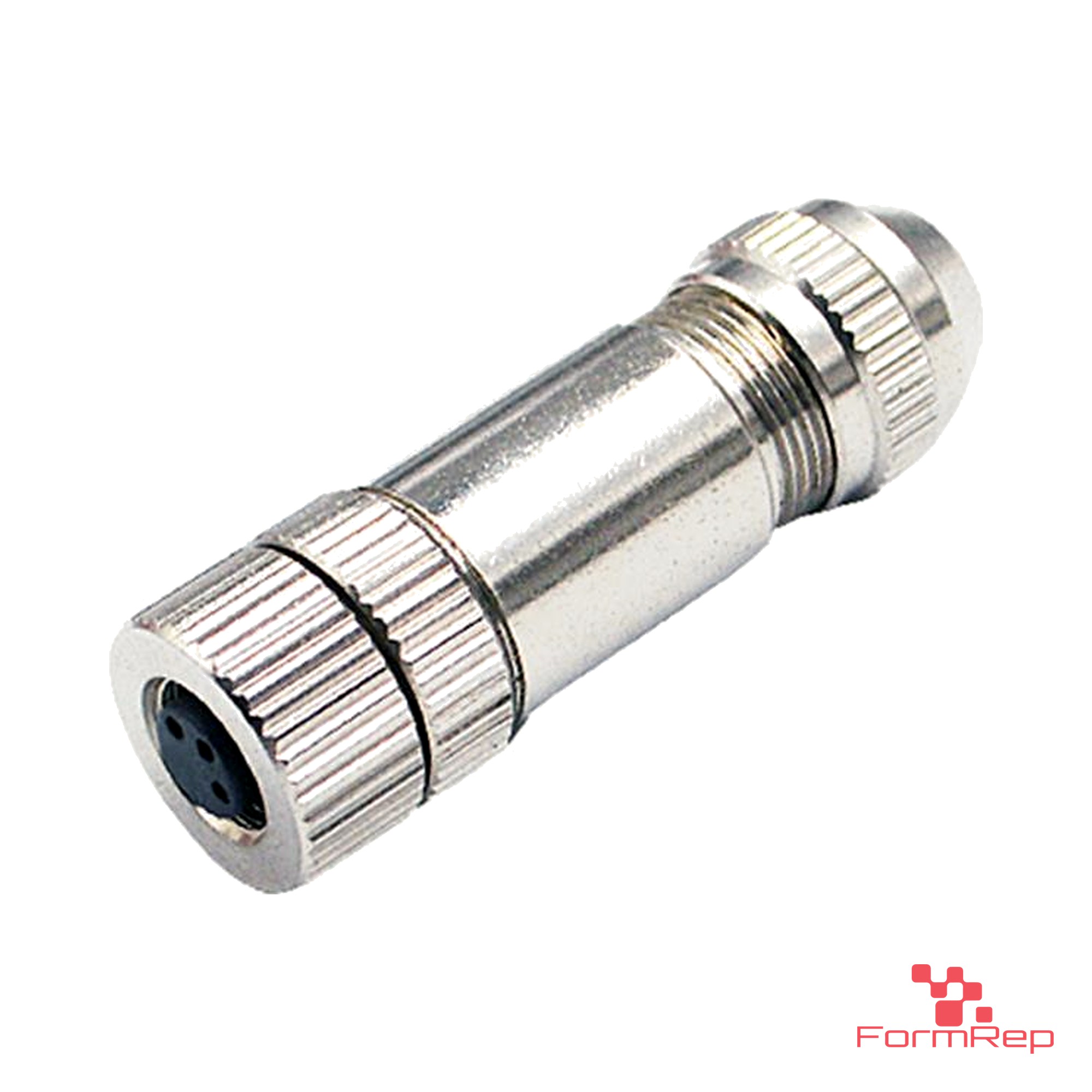

Field-attachable M8 × 1.0 A-coded connector that you solder onto your own cable, for repairs, prototypes and short runs where a molded cable doesn’t fit. The nickel-plated metal housing carries the cable shield. Choose gender and pin count; the configuration code updates as you pick.
Specifications
- Connector: M8 × 1.0, A-coded, male or female, per IEC 61076-2-104
- Head: straight

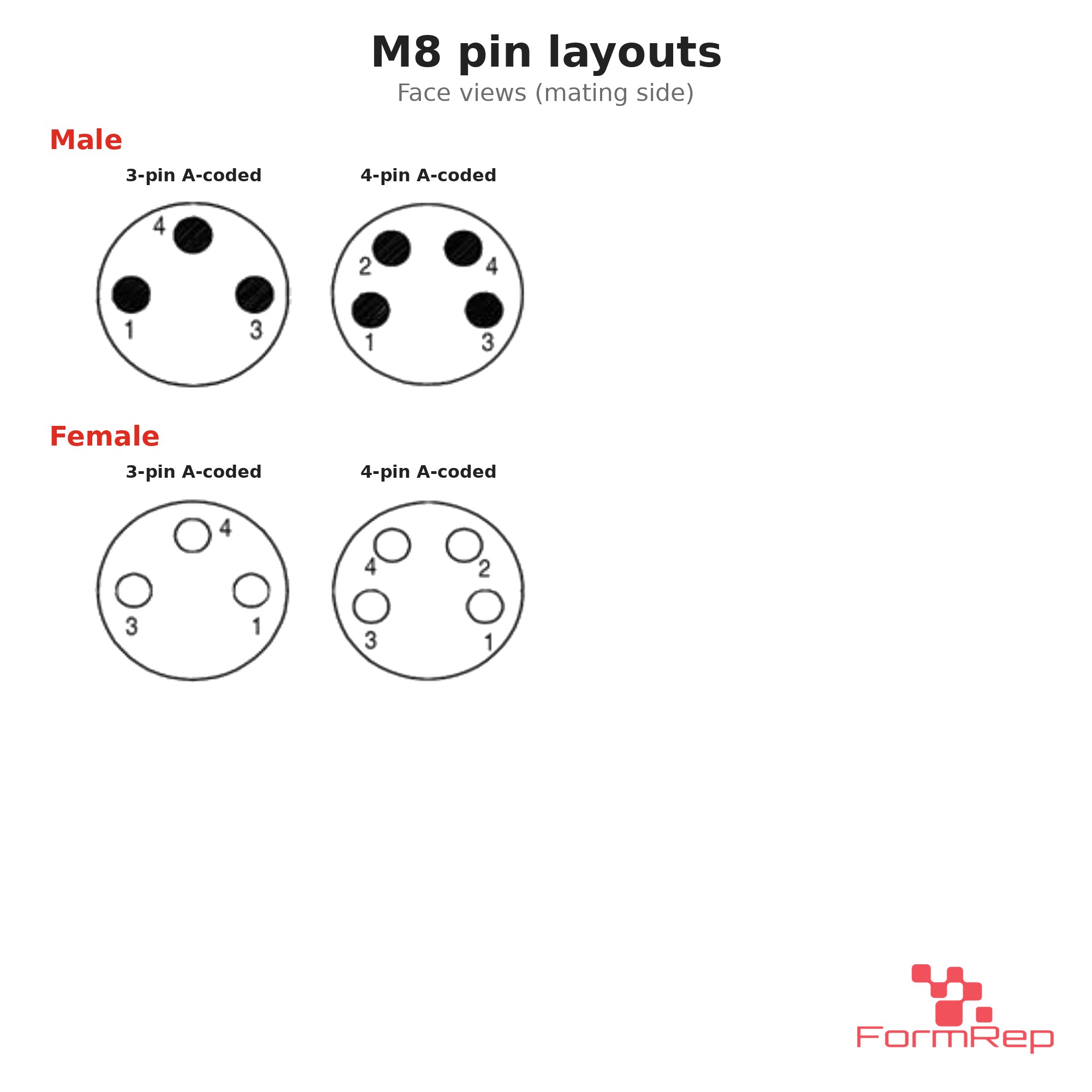

- Pins: 3 or 4 (see the pin layout image)
- Ratings: 3-pin 60 V, 3 A · 4-pin 30 V, 3 A (current rating at 40 °C)
- Termination: solder, 0.14 to 0.34 mm² (26 to 22 AWG)
- Cable: 3.5 to 5.0 mm outer diameter
- Materials: brass contacts, gold plated · brass coupling, nickel plated · metal housing, nickel plated, shielded · FKM seal
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code

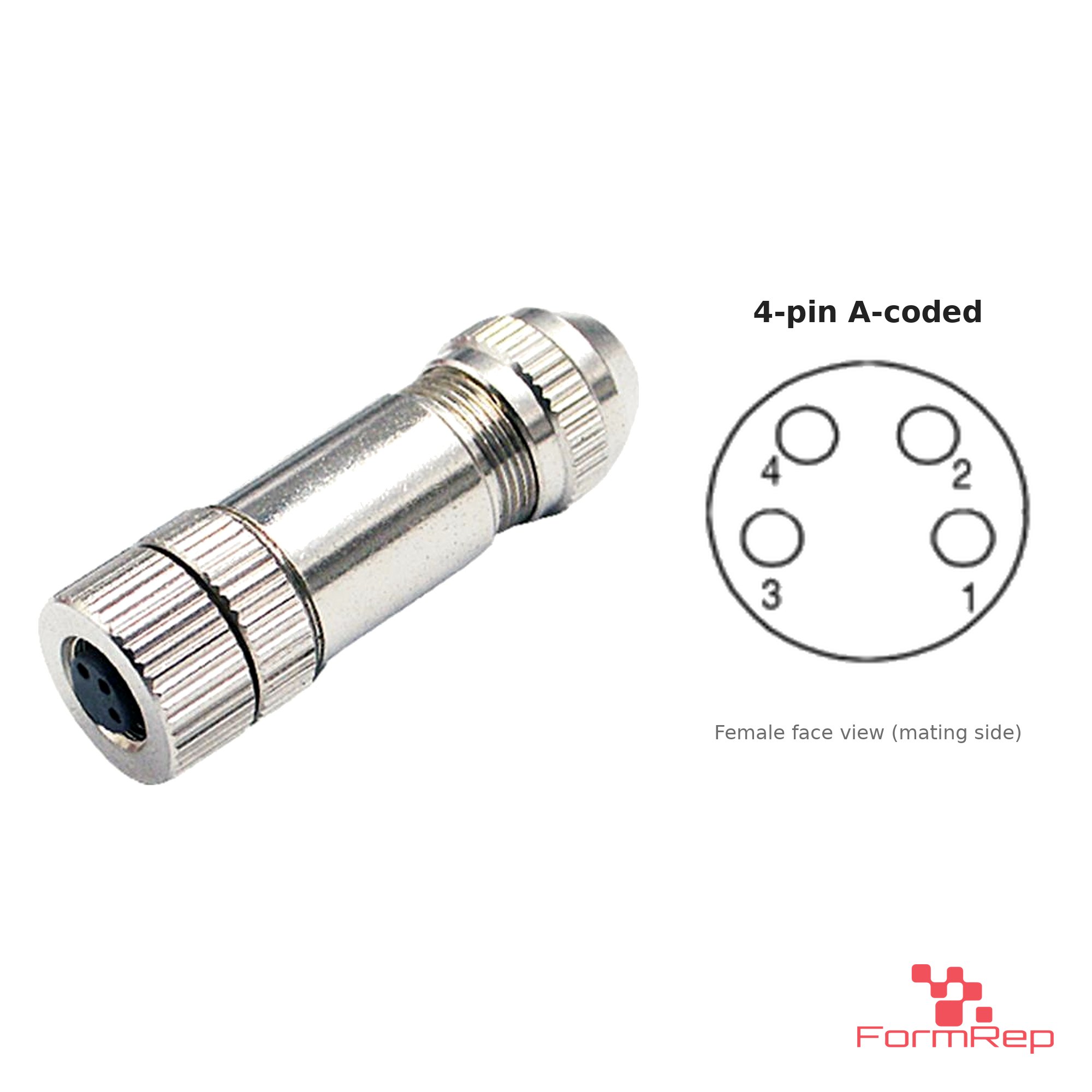

M8A-[3P or 4P]-[M or F]-ST-FAS. Example: M8A-4P-F-ST-FAS is a 4-pin female straight metal connector.
