Description

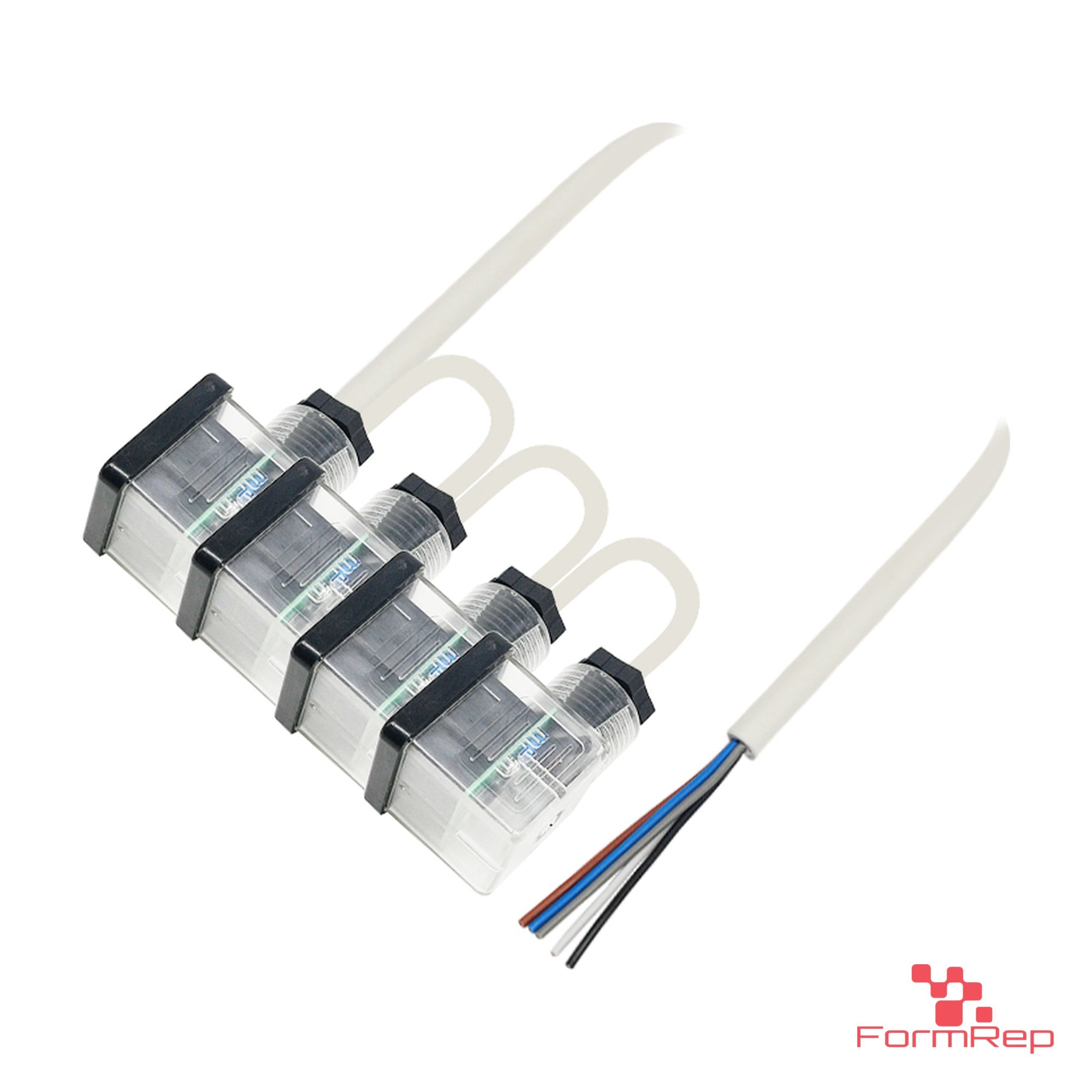

Four-valve Form A connector harness with clear housings: one cable runs four solenoid valves, with a shared return and a separate switched conductor for each valve.
Specifications
- Connectors: 4 × EN 175301-803 Form A (18 mm), 2 + PE, M3 fixing screws, clear housings
- Wiring: blue common to pin 2 of every valve; brown, black, white and gray to pin 1 of valves 1 to 4
- Protection: circuit across pins 1 and 2 of each valve (see the schematic)
- Free end: open conductors
- Lengths: branch and home-run lengths to order
- Ratings: confirmed at quote
- Compliance: RoHS, REACH
Configuration code
VC-A-2PE-4X-CL-OE. Example: VC-A-2PE-4X-CL-OE = 4-valve Form A harness, clear housings, open end.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative.
Need a different length, pinout or connector combination? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
