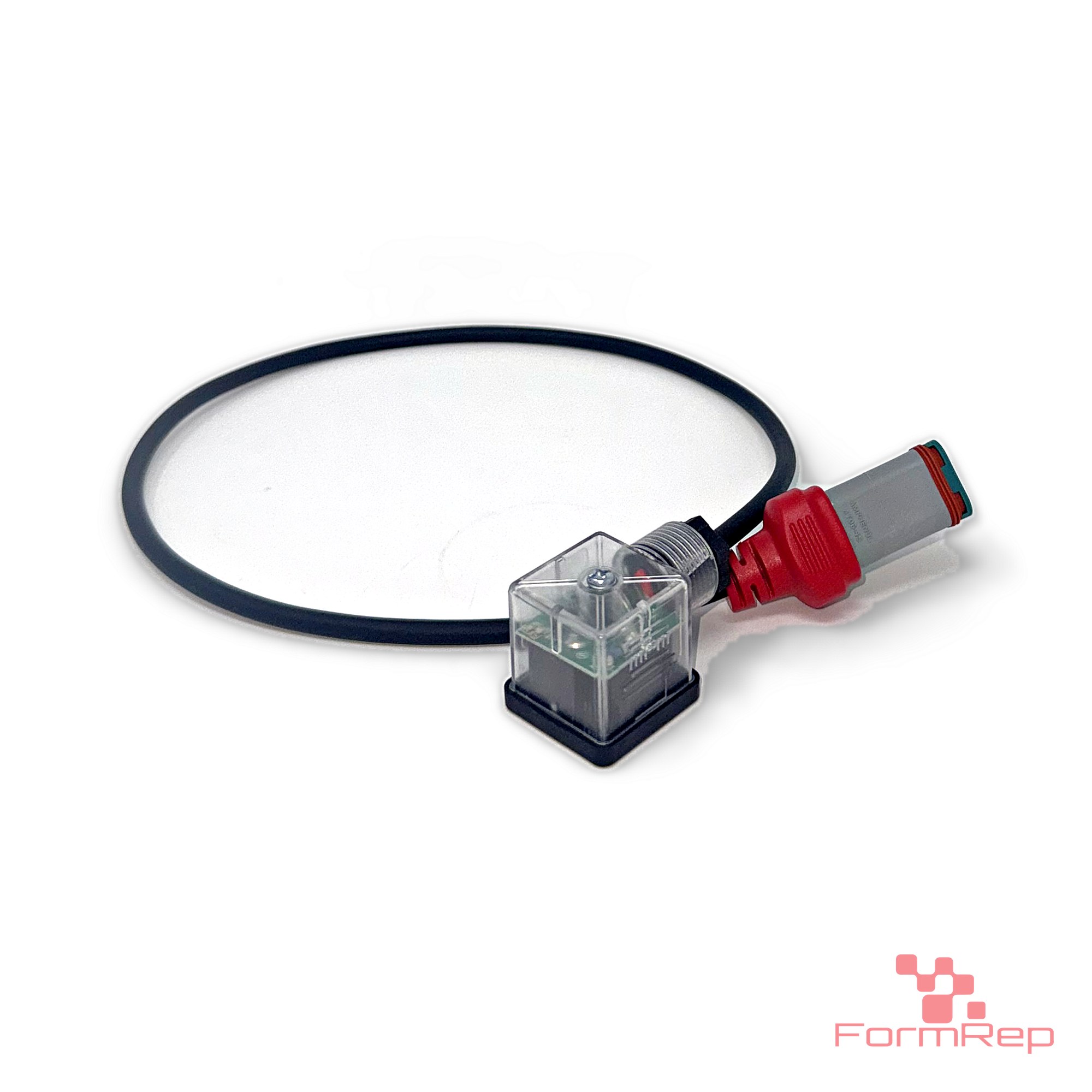

DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 2)

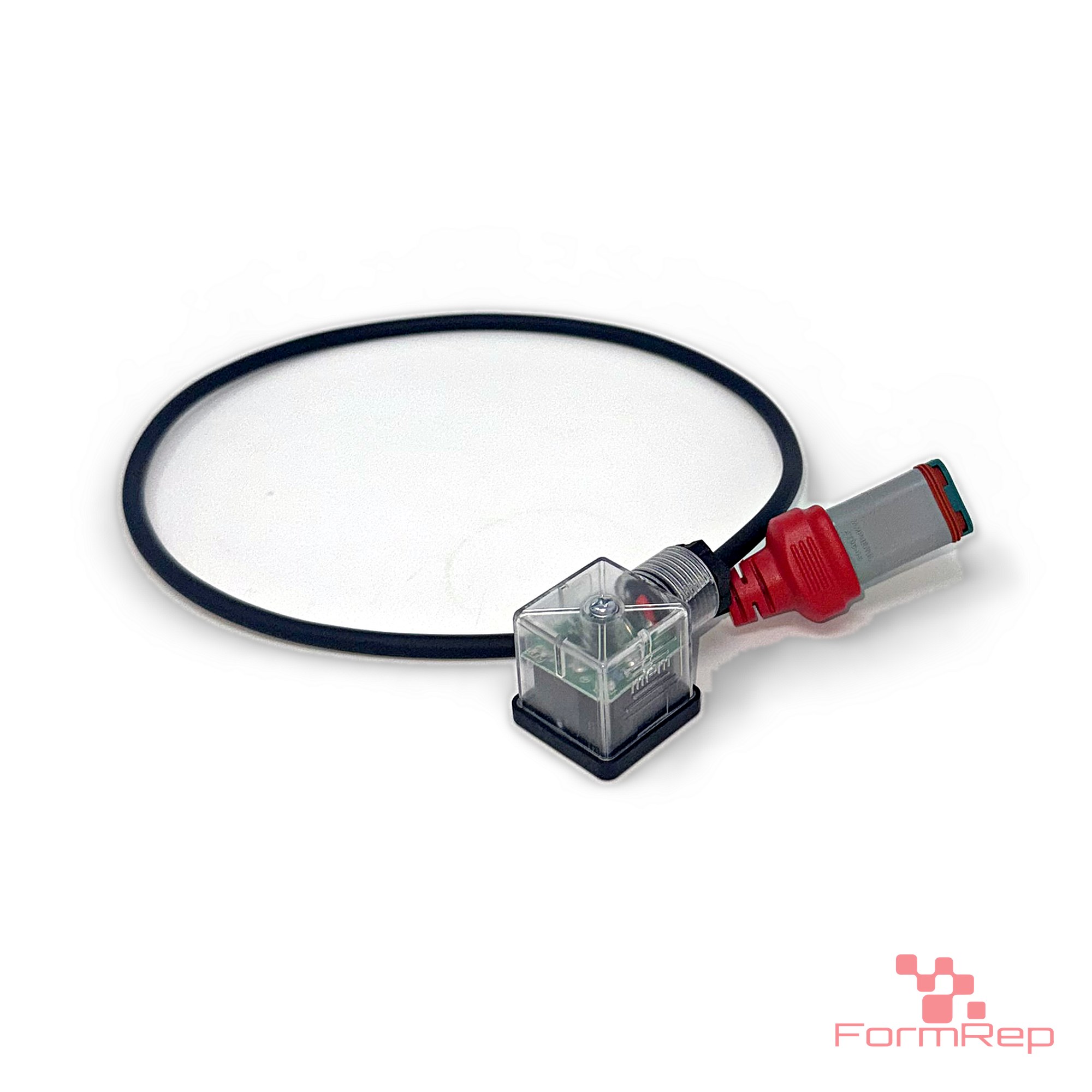

DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 3)

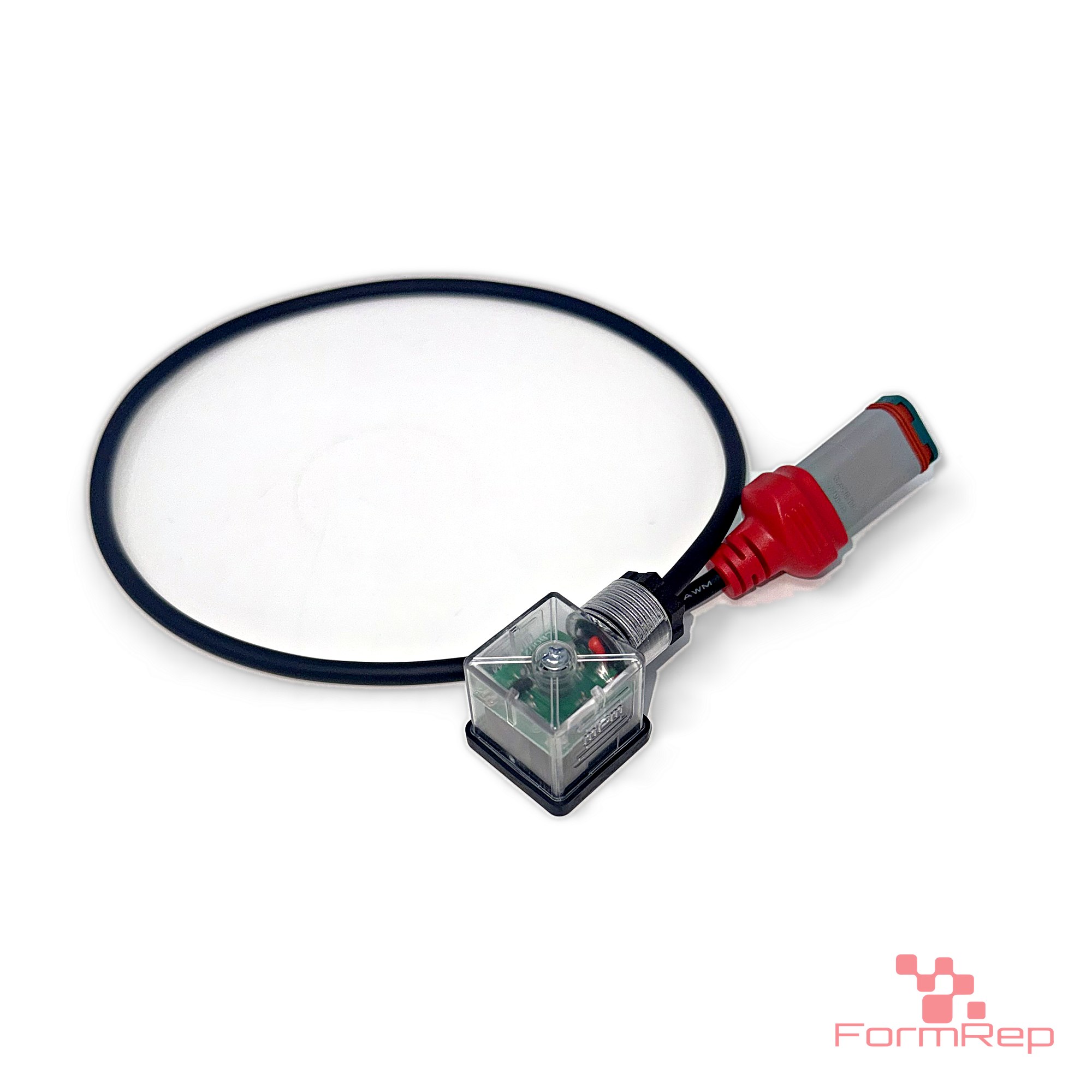

DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 4)

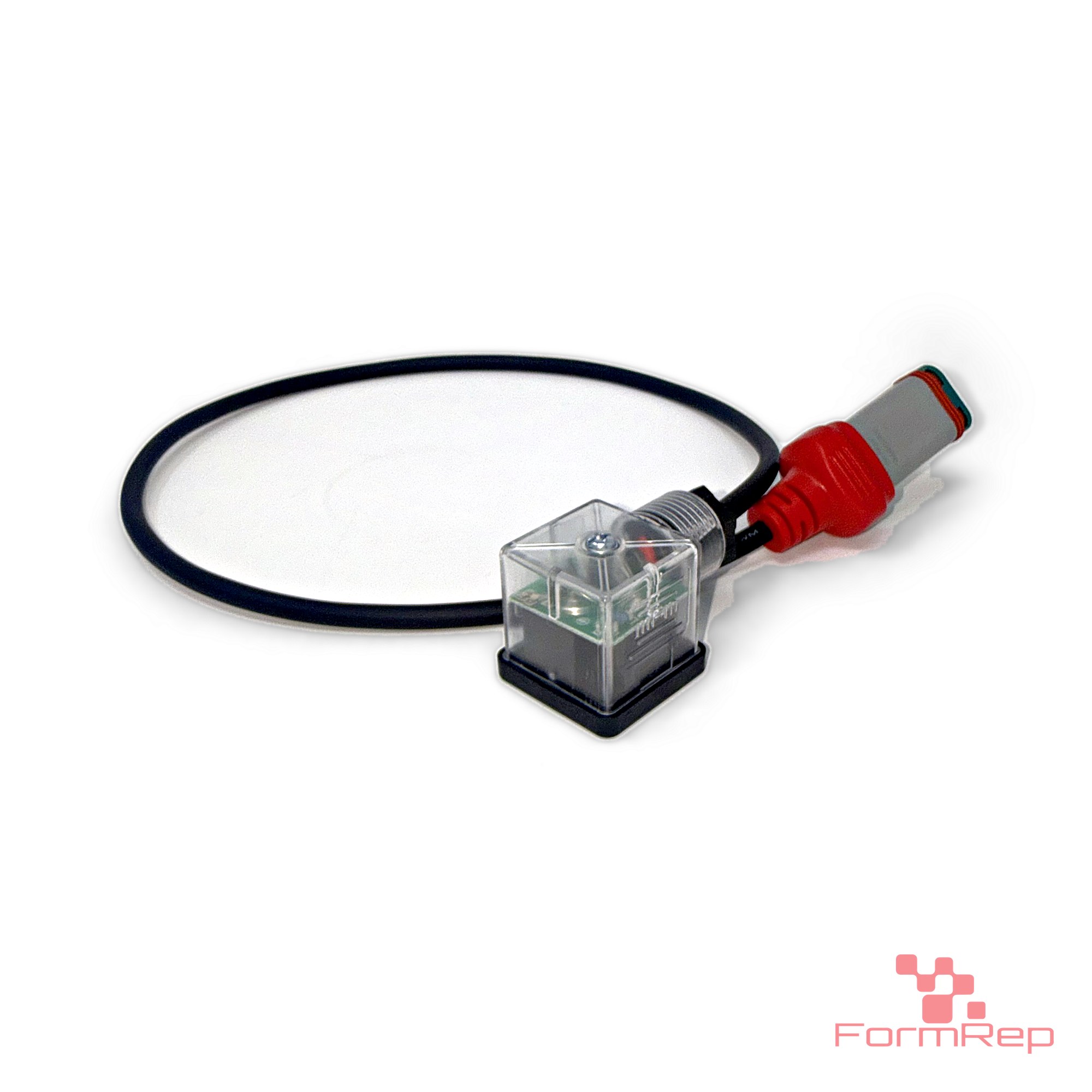

DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 5)

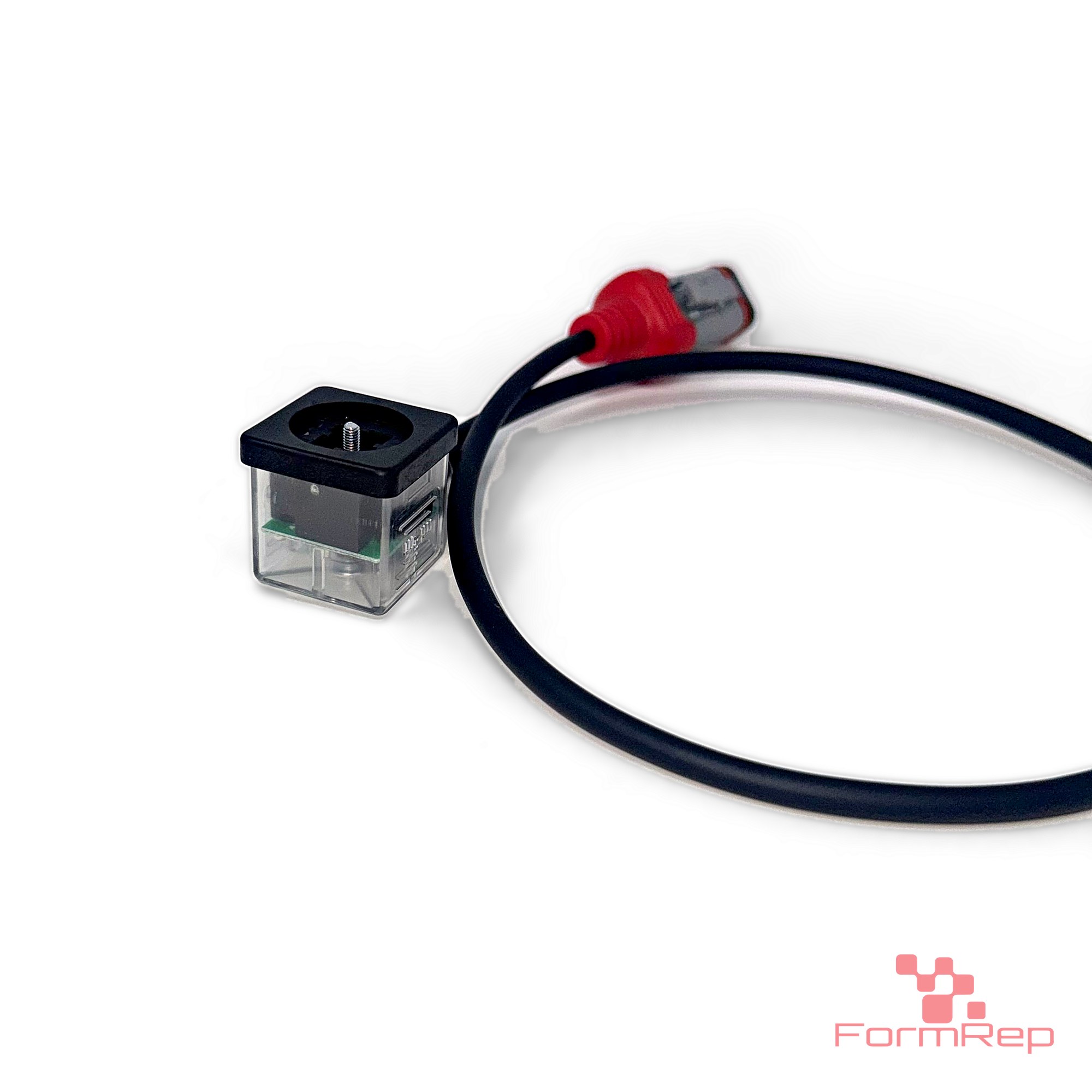

DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 6)

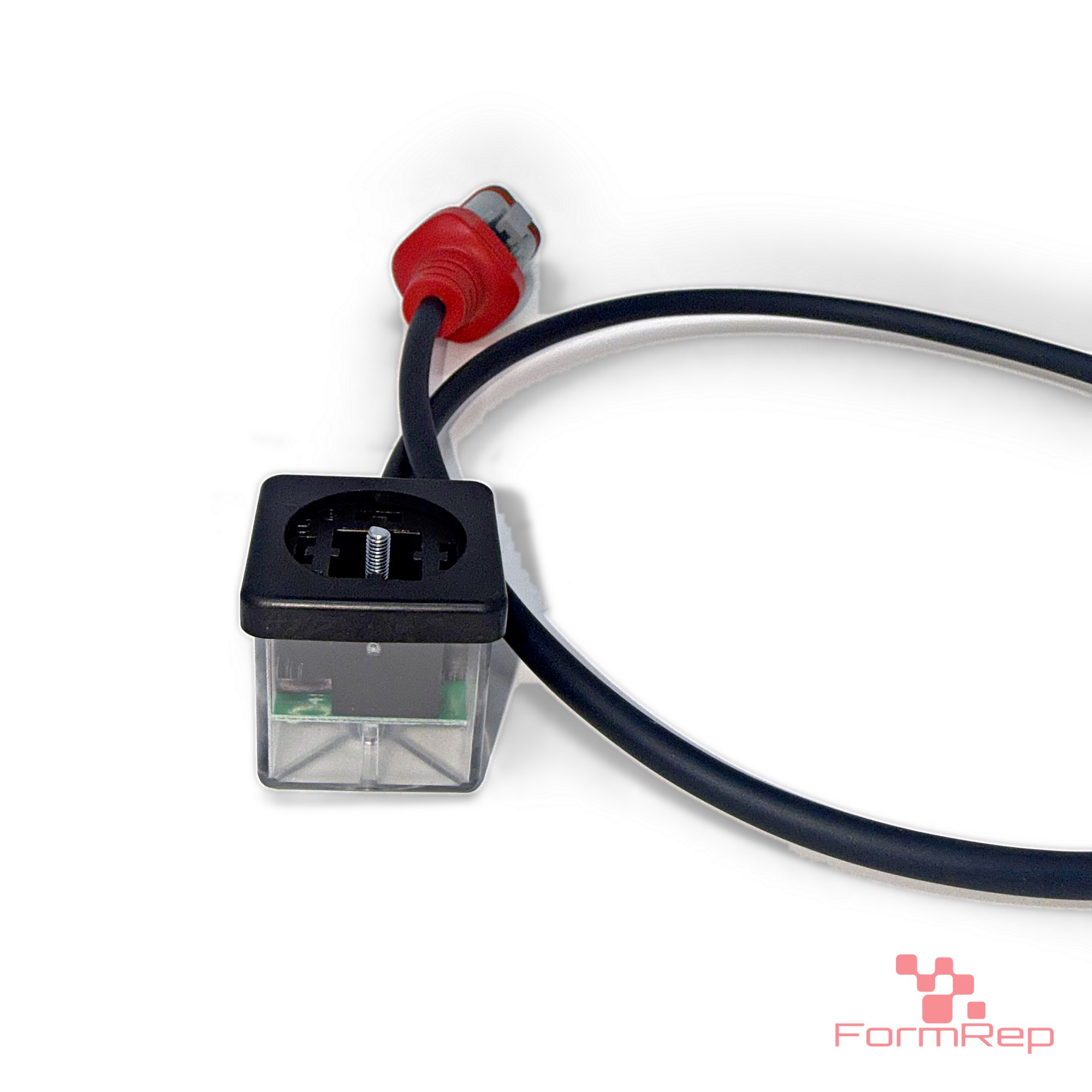

DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 7)

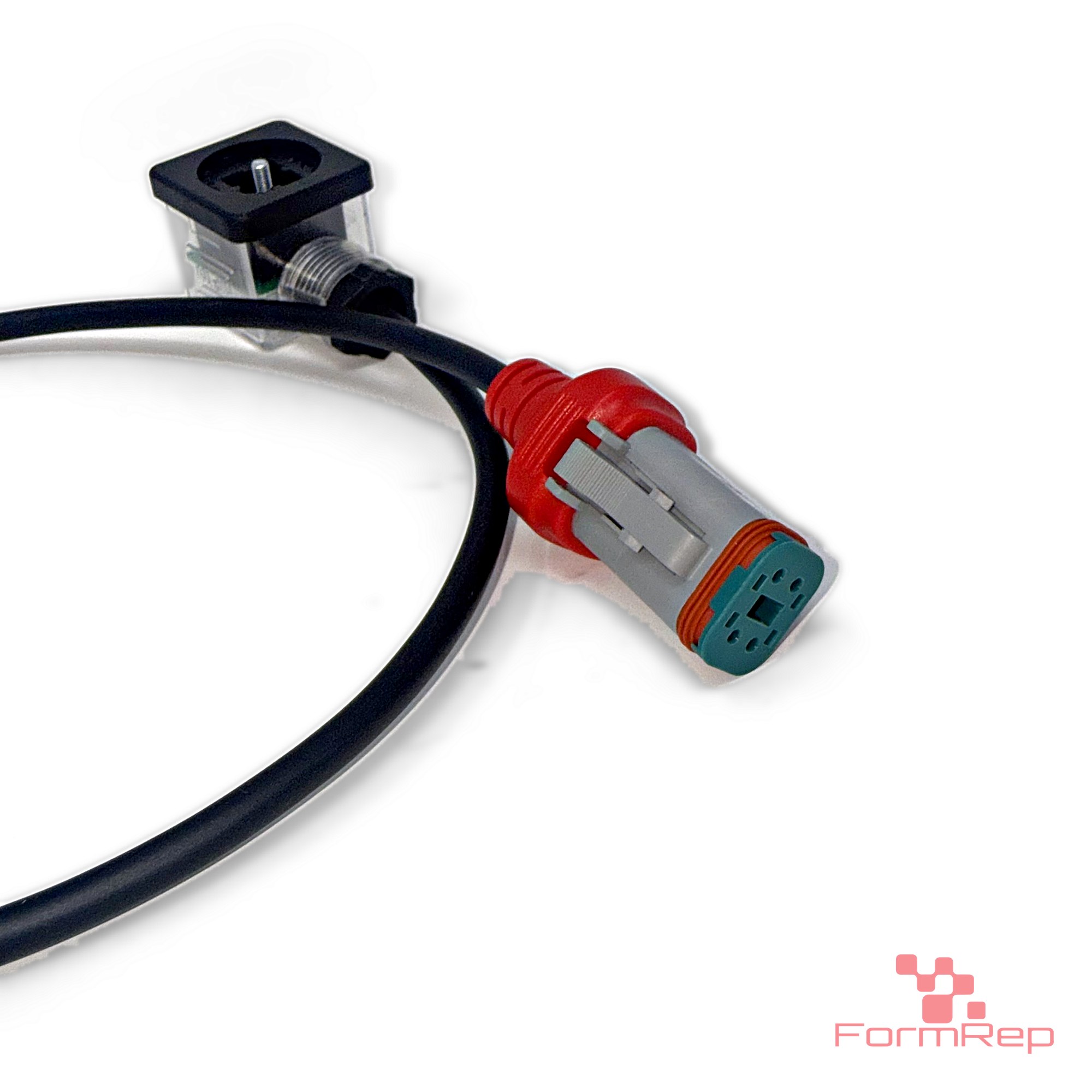

DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 8)

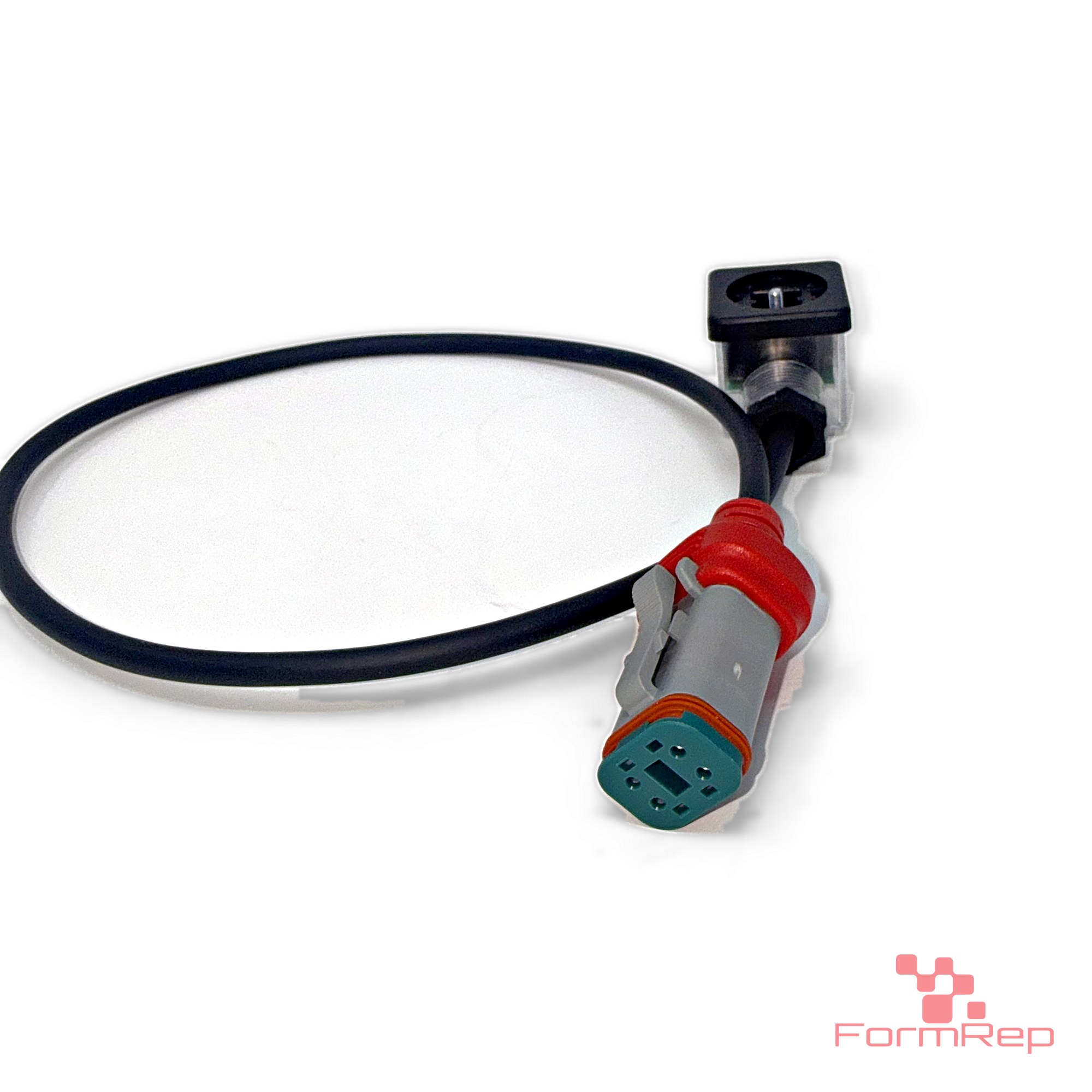

DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 9)
DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m
DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 2)
DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 3)
DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 4)
DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 5)
DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 6)
DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 7)
DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 8)
DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG PUR, 0.6 m (view 9)

DT-Compatible 4-Pin Female to DIN Valve Form A Cable, LED + Suppression, 18 AWG, 0.6 m

$33.30

DT-compatible 4-pin female (Amphenol AT06-4S) to Form A DIN solenoid-valve connector with LED and suppression, 24 V DC/AC. 18 AWG PUR, 0.6 m. Interchange for Murrelektronik 7072-77721-7540060.

  • ✓ In stock · ships next business day from Missouri
  • ✓ Free US shipping on orders over $100
  • ✓ 30-day returns · Returns & warranty
  • Need a different length, connector or a made-to-fit part? Request a quote
  • ☎ Questions? Call 816-782-7800
We acceptVISAAMEXDISCVERPayGPay

Buying in volume? Contact us for volume pricing options.

SKU: 3444-C-D04FS-V03FS-P0218-0M6-LZ Categories: , Tags: , , , , , , ,

Description

Connect DIN Form A solenoid valves directly to DT-style machine wiring. The valve end includes an LED status indicator and suppression circuit rated 24 V DC/AC, joined to a 4-pin Amphenol AT-series socket by 0.6 m of 18 AWG PUR cable — a direct interchange for Murrelektronik 7072-77721-7540060.

Specifications

  • End 1: Amphenol AT06-4S socket housing with AW4S wedgelock (DT-compatible)
  • End 2: Form A / DIN solenoid-valve connector, 2+PE, LED + suppression
  • Valve circuit rating: 24 V DC/AC
  • Cable: 18 AWG, black PUR jacket, Ø5.0 mm
  • Length: 0.6 m (600 mm +30 / −0)
  • 100% production tested for opens/shorts, insulation resistance (5 MΩ), contact resistance (5 Ω), and hi-pot (300 V DC, 10 ms)

Cross-reference

Replaces: Murrelektronik 7072-77721-7540060 (direct interchange)
Brand names are trademarks of their owners; used for identification only.

See the full cross-reference list →

Need a different length, connector, or private label? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Contact us for a quote.

Download drawing (PDF)

Download datasheet (PDF)
