Description

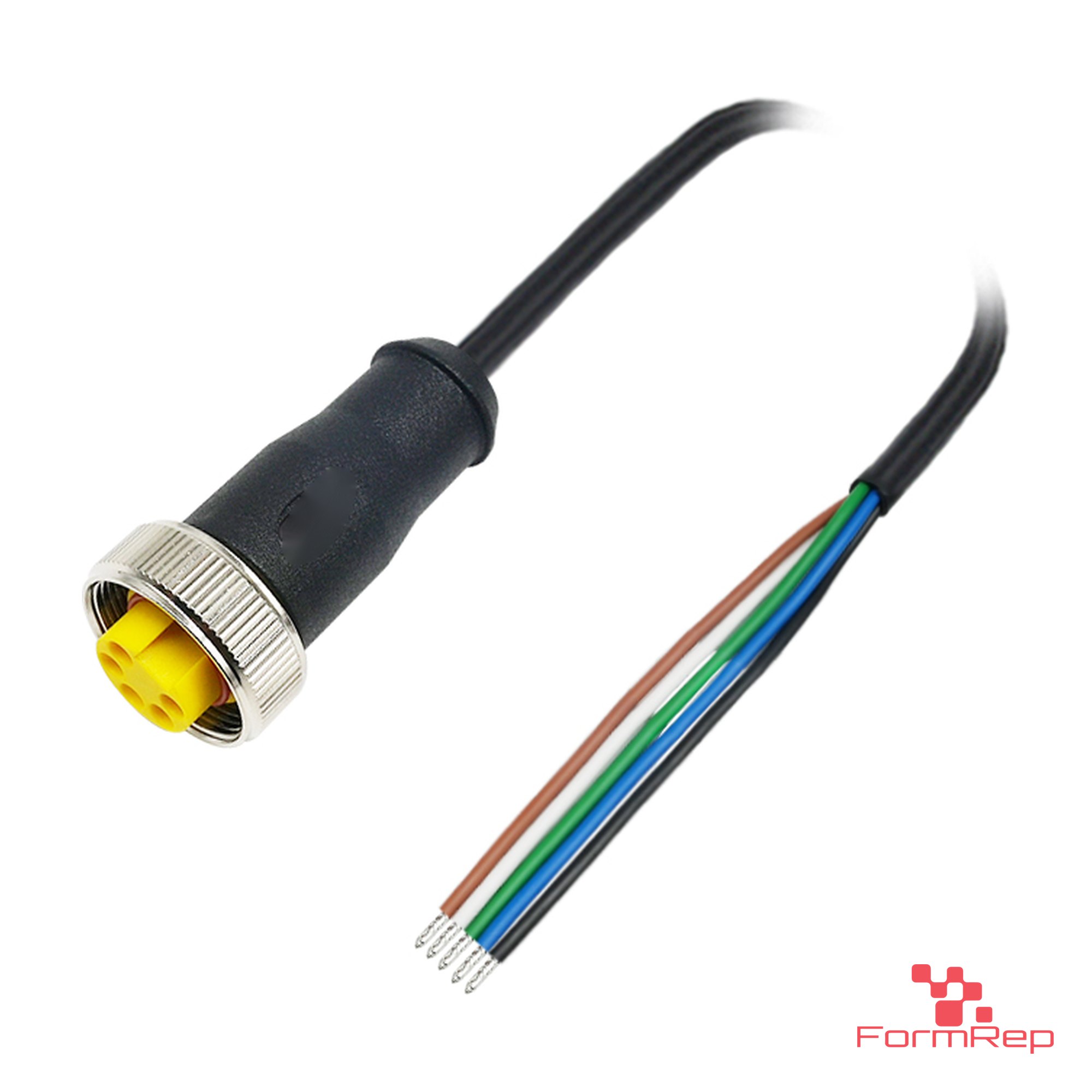

Molded 5-pin female cordset with a 7/8″ pin layout and an M23 × 1.0 coupling nut, with open tinned conductors for wiring into a cabinet or terminal block. Choose the length; the configuration code updates as you pick.
Specifications

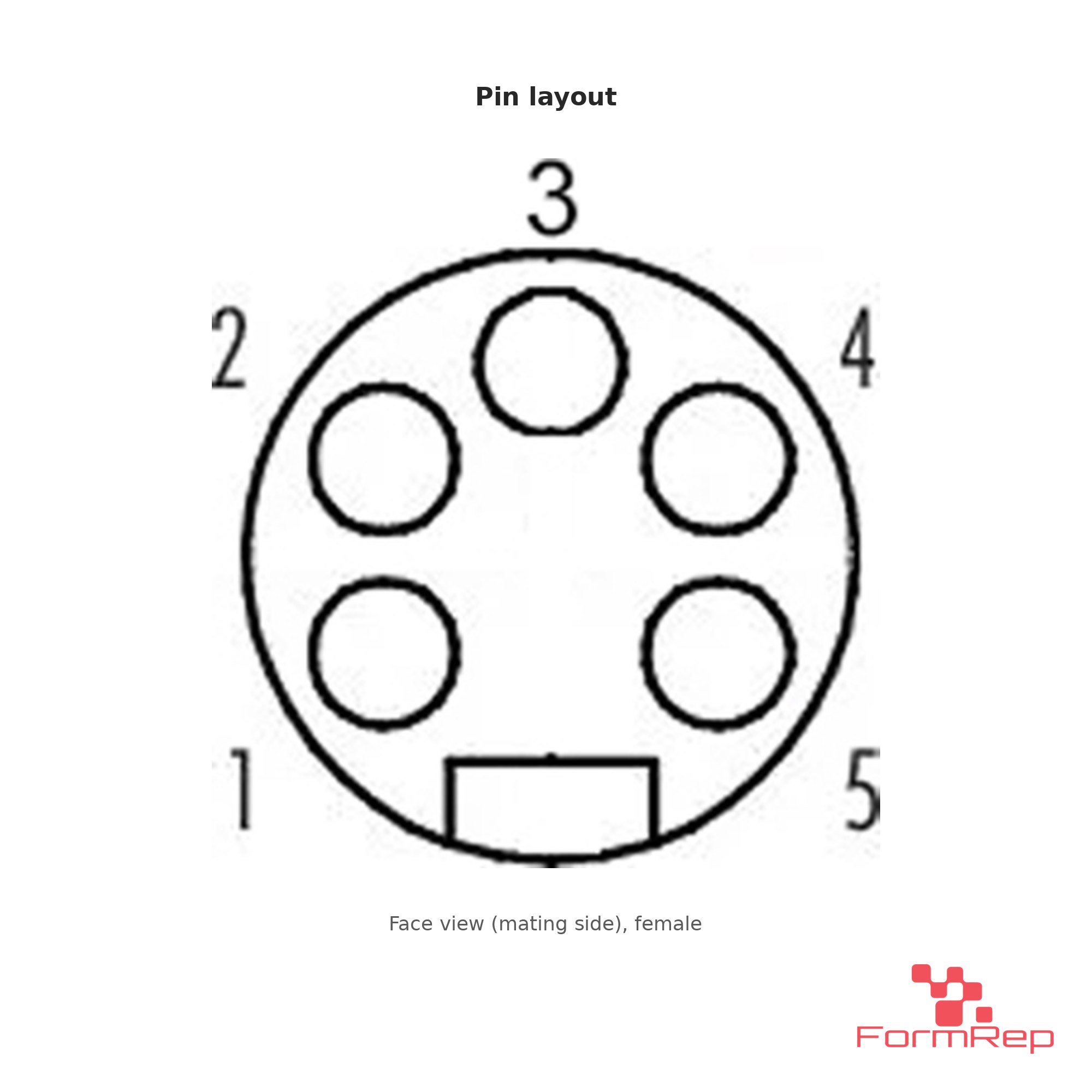

- Connector: 5-pin female, 7/8″ pin layout, M23 × 1.0 coupling nut
- Free end: open conductors, tinned
- Lengths: 1, 2, 5 or 10 m
- Rating: 300 V, 8 A
- Materials: brass contacts, gold plated · brass coupling, nickel plated · molded black body
- Operating temperature: −40 to +105 °C (connector)
- Compliance: RoHS, REACH
Configuration code
78-5P-F-ST-OE-[1M/2M/5M/10M]. Example: 78-5P-F-ST-OE-2M = 7/8″ 5-pin female cordset, open end, 2 m.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative.
Need a different length, pinout or connector combination? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
