Description

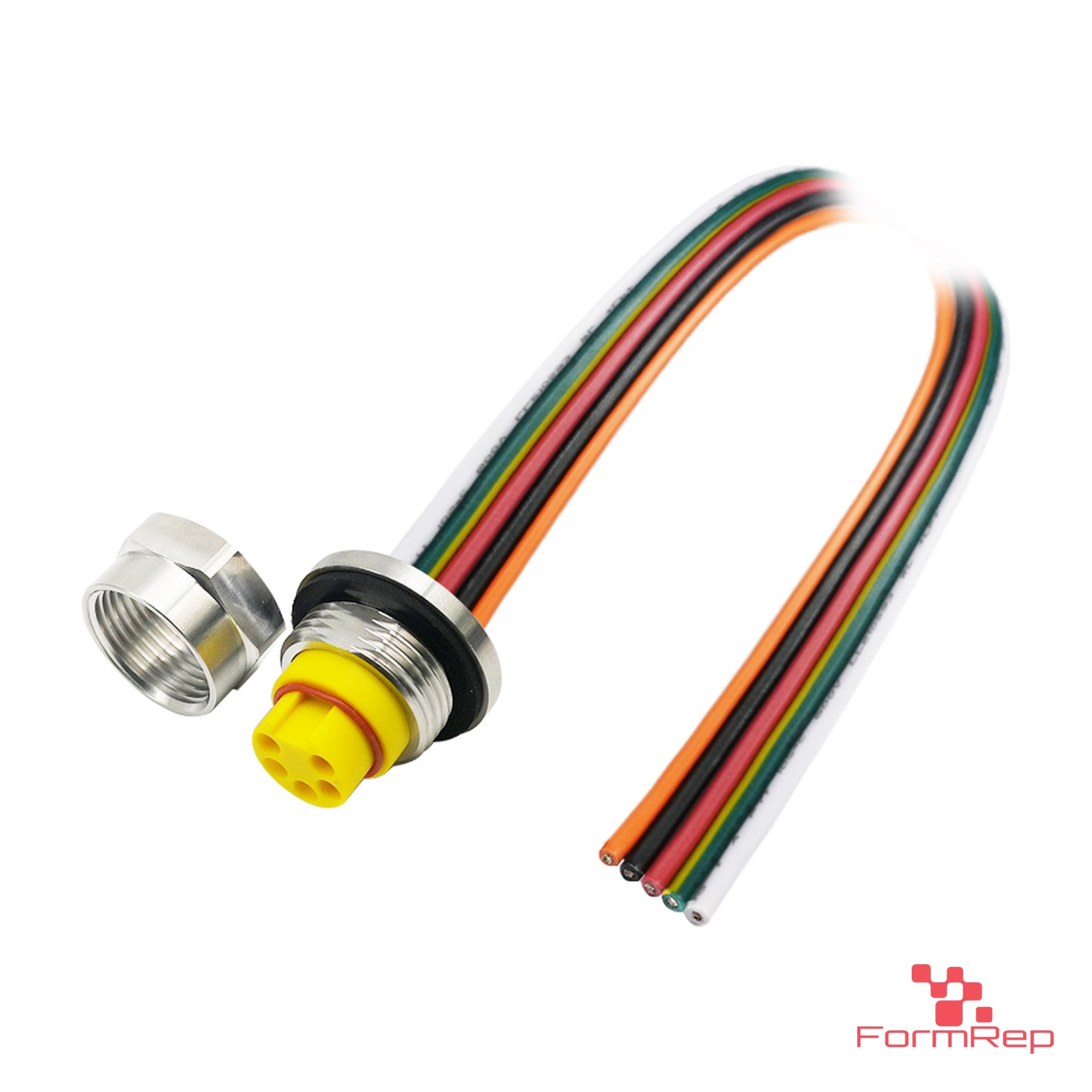

7/8″-16UN (mini-style) 5-pin female receptacle for bringing a 7/8″ power or fieldbus connection through an enclosure wall, with pre-wired single leads. Choose the length; the configuration code updates as you pick.
Specifications

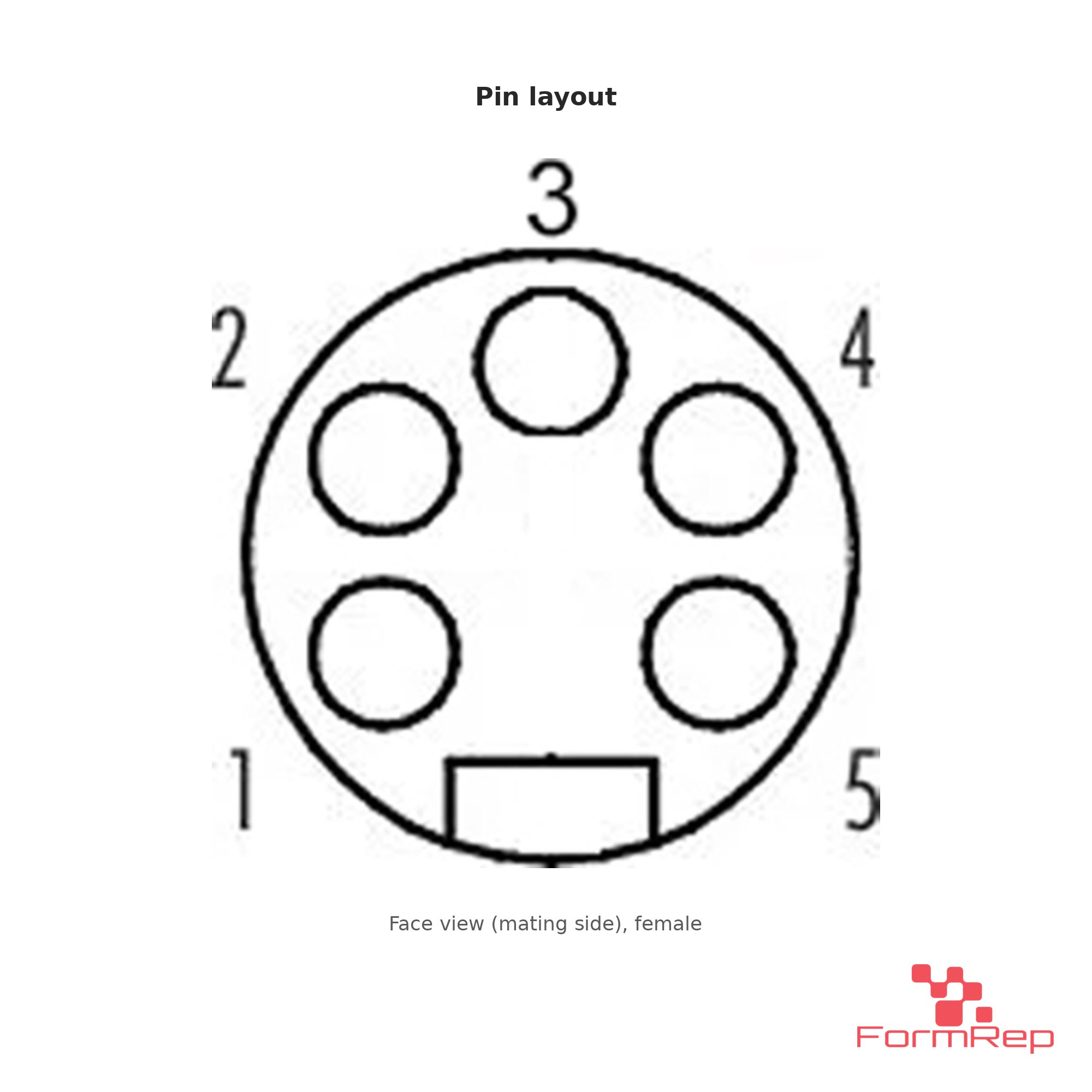

- Connector: 7/8″-16UN screw lock, 5-pin female
- Mounting: straight, front panel mount with hex nut (SW 28)
- Leads: single wires, 0.3, 0.5 or 1.0 m
- Rating: 300 V, 6 A
- Materials: brass contacts, gold plated · brass shell, nickel plated
- Operating temperature: −40 to +105 °C
- Compliance: RoHS, REACH
Configuration code
78-5P-F-ST-FR-WL-[0M3/0M5/1M0]. Example: 78-5P-F-ST-FR-WL-0M5 = 7/8″-16UN 5-pin female front panel-mount receptacle with 0.5 m leads.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative.
Need a different length, pinout or connector combination? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
