Description

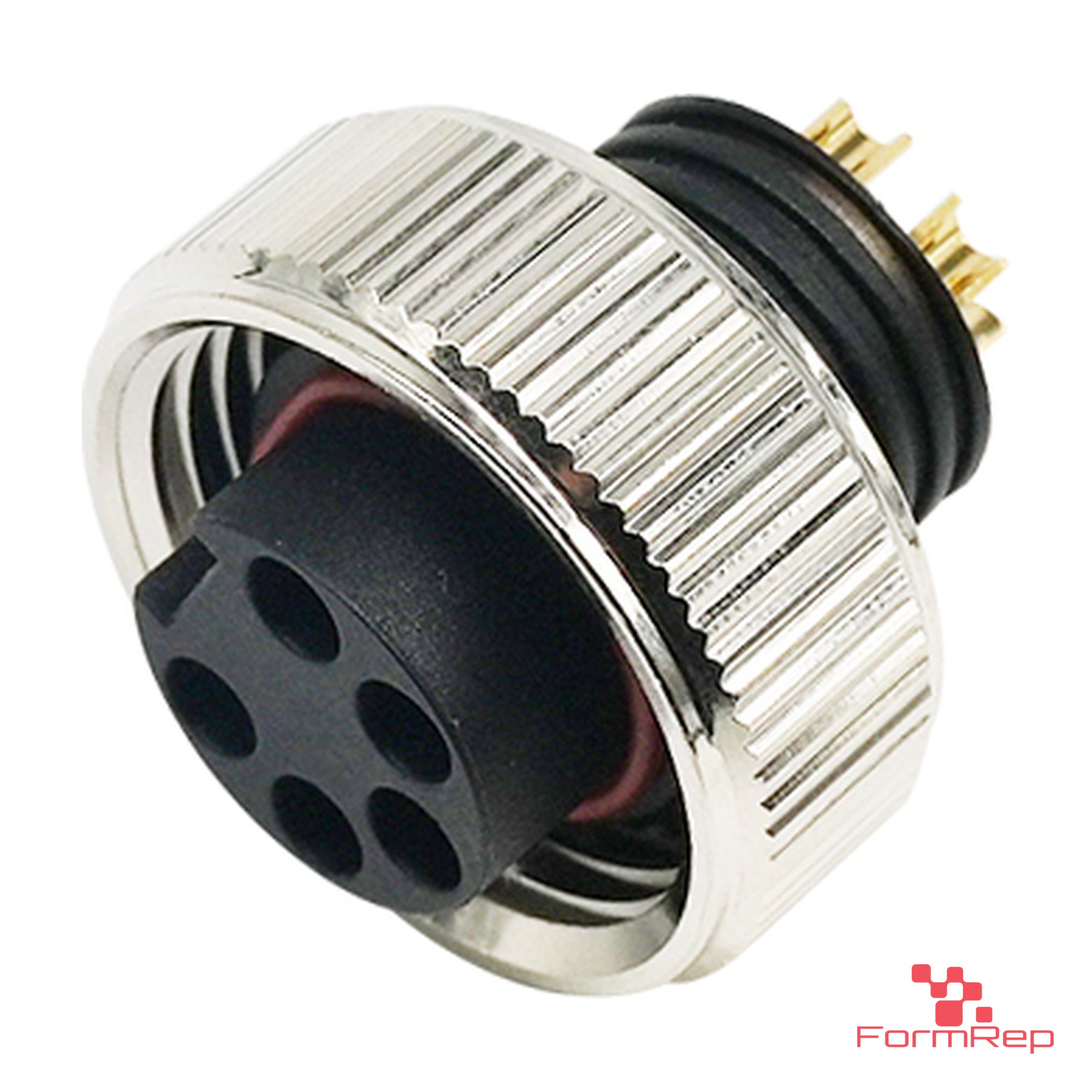

7/8″-16UN (mini-style) 5-pin female connector with solder-cup termination, for wiring your own 7/8″ power or fieldbus connection.
Specifications

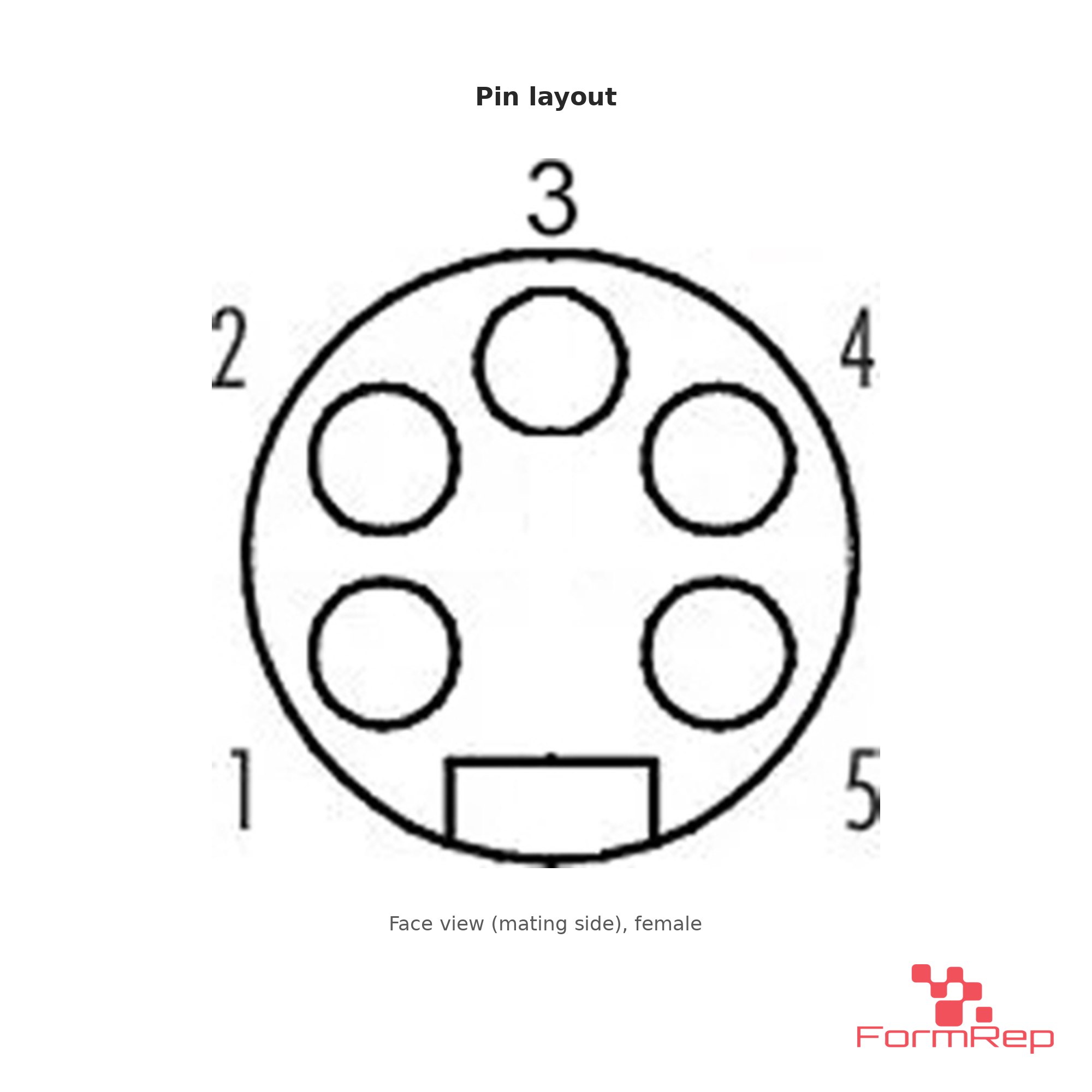

- Connector: 7/8″-16UN screw lock, 5-pin female
- Termination: solder cups, 0.14 to 0.34 mm² (26 to 22 AWG)
- Rating: 600 V, 9 A
- Size: Ø17.3 × 25.5 mm
- Materials: brass contacts, gold plated · brass coupling, nickel plated · O-ring seal
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
78-5P-F-SC. Example: 78-5P-F-SC = 7/8″-16UN 5-pin female solder connector.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative.
Need a different length, pinout or connector combination? FormRep builds made-to-fit cable assemblies and overmolds to your drawing. Request a quote.
