Description
Compact M5 Y-splitter that takes one 4-pin female port (C) to two male ends (A and B), with each pin wired to the same pin on both outputs. Handy for bringing two M5 sensors or actuators onto one port or for sharing a signal.
Specifications
- Connectors: 1 x M5 female (C), 2 x M5 male (A and B), M5 × 0.5 screw lock

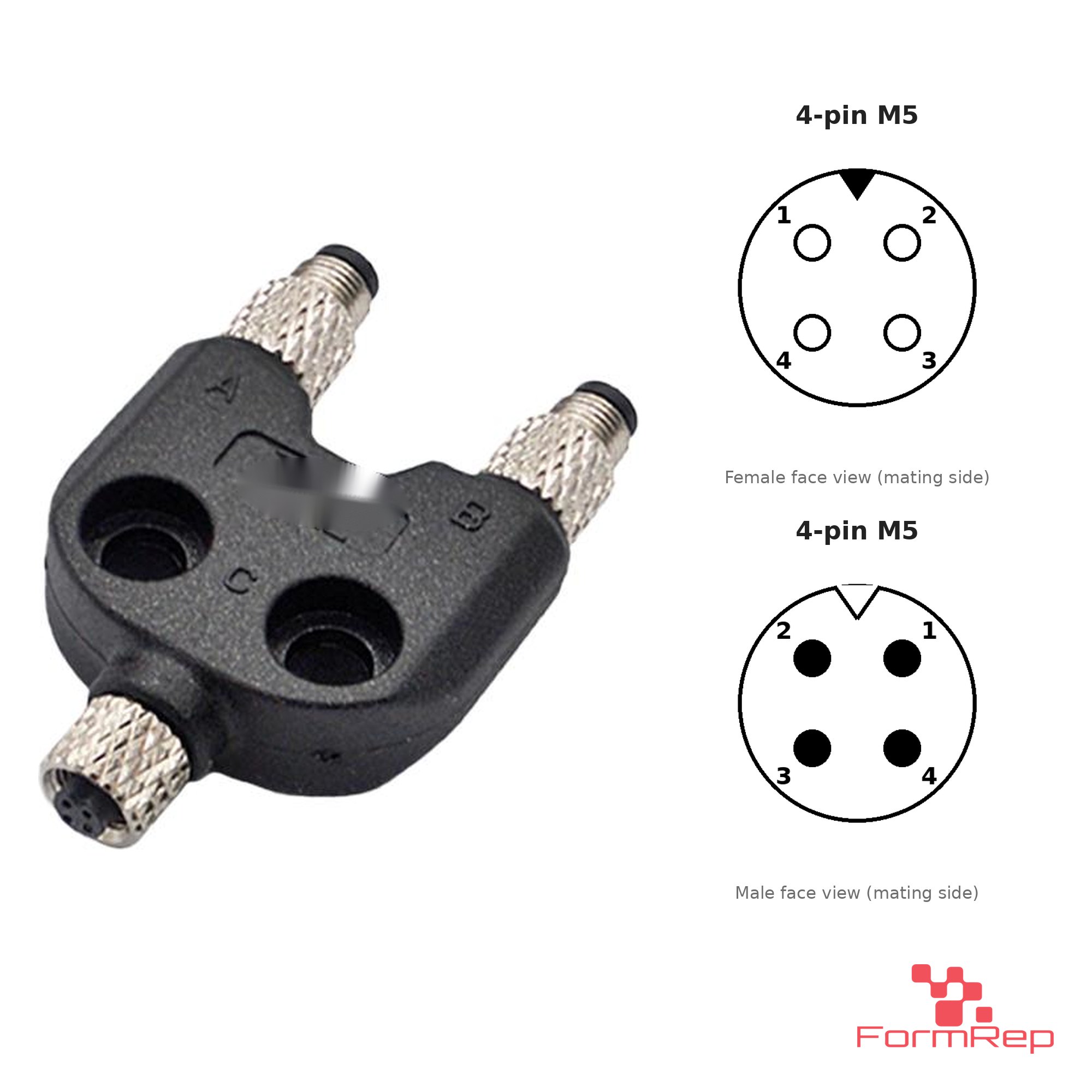

- Pins: 4 (see the pin layout image)
- Wiring: C1 to A1 and B1 … C4 to A4 and B4
- Rating: 60 V, 1 A (current rating at 40 °C)
- Materials: brass contacts, gold plated · brass coupling nuts, nickel plated · TPU body
- Operating temperature: −25 to +85 °C
- Compliance: RoHS, REACH
Configuration code
M5-Y-4P-F-2M.
Ordering
Built to order and priced by quote; standard versions ship in about 5 to 6 weeks. Pick your options and click Request a quote. Photos are representative; options follow your selection.
Need a different split or a splitter cable? FormRep builds made-to-fit cable assemblies. Request a quote.
